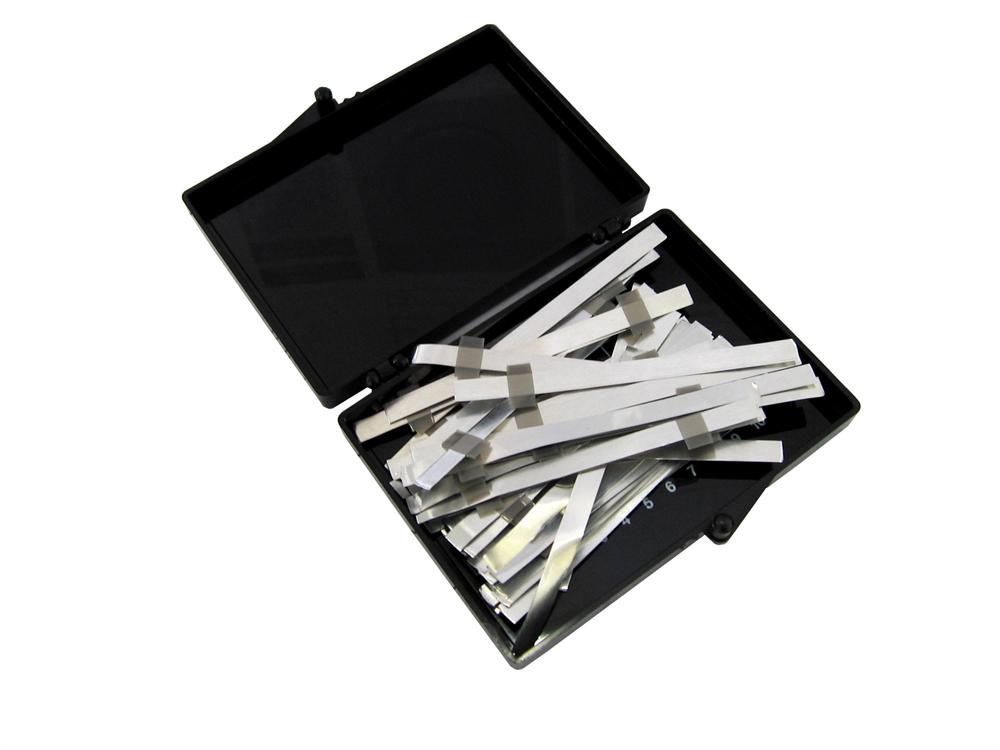

4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - PLiB-ATC4
  • 4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - PLiB-ATC4
4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - PLiB-ATC4

4mm width Aluminum Tab with Adhesive Polymer Tape for Positive Terminal of Pouch Cell, 50pcs/Box - PLiB-ATC4

SKU: 4mm-width-aluminum-tab-with-adhesive-polymer-tape-for-positive-terminal-of-pouch-cell-50pcs-box-eq-plib-atc4

Price: RFQ

Description

4mm wide Aluminum Tabs for use as the Positive Terminal of Polymer Li-ion Batteries 50pcs/Box

Specification

Material
  • Aluminum 99.99% (horizontal polymer strip is made of modified polypropylene (PP) and polyethylene naphthalate (PEN))
Length
  • 61mm
Width
  • 4mm
Thickness
  • 0.09mm in Aluminum Tab
  • 0.28mm in Aluminum Tab with Adhesive Polymer Tape
Max. Loading Current
  • 3A
Net Weight
  • 60mg/pcs
Gross Wight
  • 15g (Tabs with Box)
Pre-taped
  • Adhesive Polymer Tape on the tab allows for immediate hot sealing
  • Height of Tape Area: 4.30 mm +/- 0.50 mm
Application 1. Connect to cathode current collector as polymer battery positive terminal
2. Suggested Sealing Method: (parameter below may vary from case to case)
- Soft type heat-sealing blade (Blade with rubber, see MSK-140)
- 180-200C for upper blade
- 160-180C for lower blade
- 40PSI (0.3Mpa)
- 3 seconds heating time
Adhesive Polymer Tape on the tab allows for immediate hot sealing
