Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ
  • Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ
  • Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ
  • Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ
Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ

Air-Tight Sample Holder with Zero Diffraction Plate for Powder XRD - AT-XRD-XXZ

SKU: at-xrd-xx

Price: RFQ

Specifications

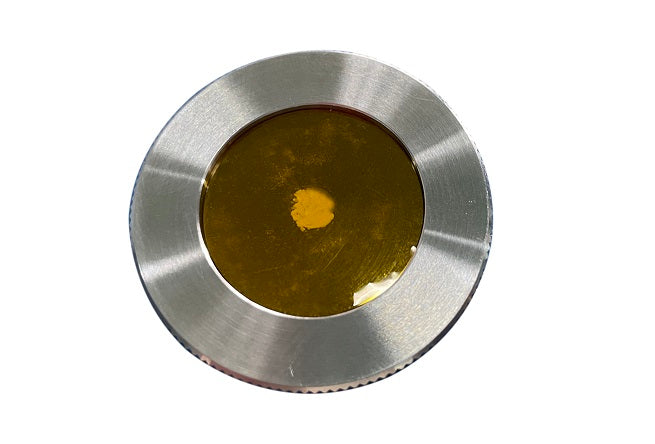

 AT-XRD-XX is an air-tight sample holder of a zero diffraction plate for powder XRD. Zero diffraction plate with the option of OD 24.6, and 32 mm, which is put inside of the stainless steel holder. The top of the sample holder is covered by Kapton film and tightened by PTFE O-ring. The air-sensitive powder will be put in the cavity of the zero diffraction plate inside the inert gas glovebox. ( Since August 22, an Air-tight sample holder will include one zero diffraction plate )

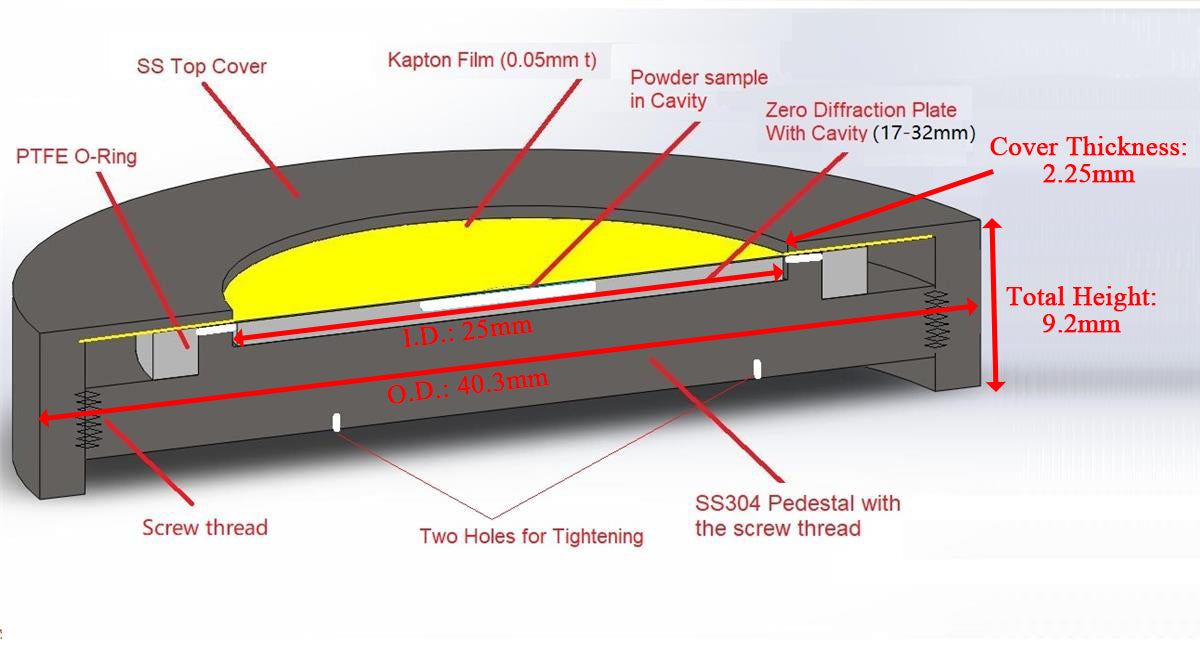

 Structure     Please click the picture to see the details

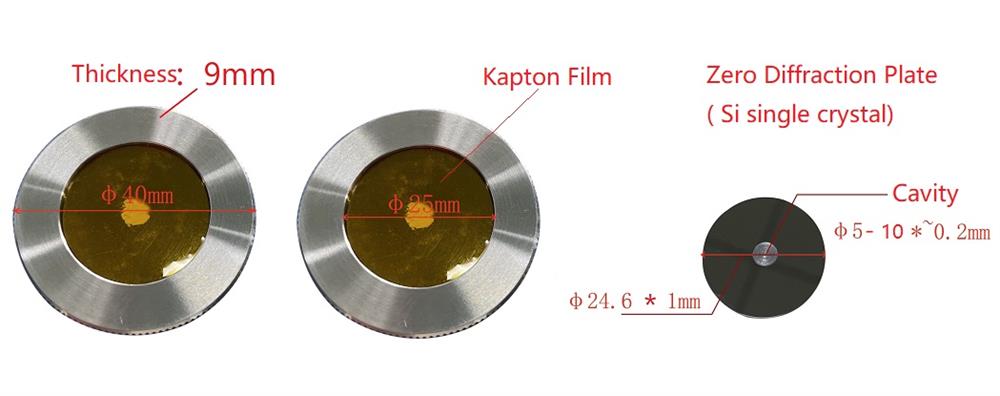

  40 mm OD x 9 mm thickness
Zero Diffraction Plate
  • One Si single crystal zero diffraction plate with a cavity is inside the sample holder
  • The zero diffraction plate is made of single-crystal Silicon which is cut at the special angle
  • Two types of zero diffraction plates are optional from the product option bar
    • Diameter: 24.6, or 30.0 mm with 10 mm dia. x 0.2 mm depth  cavity
  • Please choose size at the options bar, and click the pics below to order a zero diffraction plate

                          24.6mm                    30.0mm            XRD
Plate package.
  • 10 pieces of Kapton film
  • 2 PTFE O-rings
  • One zero-diffraction plate
