400C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - Die-12DHT
  • 400C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - Die-12DHT
400C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - Die-12DHT

400C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - Die-12DHT

SKU: die-12dht

Price: RFQ

Specifications

 Die-12DHT is a complete pressing die with 0.5 " I.D. is ready for you to make 11- 12 mm diameter sample pellet. SPECIFICATIONS: Modle Die-12DHT Height 2 3/8" (60 mm) Diameter 2 " OD (50mm) The whole set pressing die includes The die is made of Cr12MoV refractory alloy with Max. working Temperature 400ºC Max. Load: 6 metric Ton One 0.5" I.D. core die made of hardened steel and highly polished with hardness HRC 50 Ra 0.08μm highly polished steel One steel sleeve for core dies protection Two pushing rods highly polished and perfectly fitted into the die Two steel support plates One pressing pole for releasing sample from dying only One steel cylinder for pushing out the sample Steps to make sample pellet Mixing and grinding chemical powder by agate mortar Calcine mixed the powder in a high temp furnace under suitable temperature Grinding calcined powder again by mortar Put calcined powder into the die Pressing sample by a pressing machine under suitable pressure Take out pellet sample from die Sintering the pellet under suitable temperature Then, a new material sample is formed! Pressing die installation schematic Cautions Please must always wear protective goggles during operation !!! Please use alcohol to clean the pressing die every time before use and store it in a dry place with antirust oil after used to avoid rusting on the surface because all pressing dies are made by high-stretched carbon steel for achieving high hardness to meet essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched. Application Note You may consider using BNMR for easy mold release. Please click the picture below to order.

Modle Die-12DHT
Height 2 3/8" (60 mm)
Diameter 2 " OD (50mm)

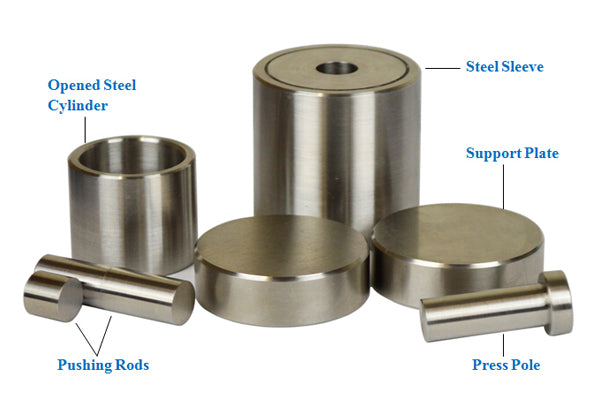

The whole set pressing die includes
  1. The die is made of Cr12MoV refractory alloy with Max. working Temperature 400ºC
  2. Max. Load: 6 metric Ton
  3. One 0.5" I.D. core die made of hardened steel and highly polished with hardness HRC 50
  4. Ra 0.08μm highly polished steel
  5. One steel sleeve for core dies protection
  6. Two pushing rods highly polished and perfectly fitted into the die
  7. Two steel support plates
  8. One pressing pole for releasing sample from dying only
  9. One steel cylinder for pushing out the sample


Steps to make sample pellet
  • Mixing and grinding chemical powder by agate mortar
  • Calcine mixed the powder in a high temp furnace under suitable temperature
  • Grinding calcined powder again by mortar
  • Put calcined powder into the die
  • Pressing sample by a pressing machine under suitable pressure
  • Take out pellet sample from die
  • Sintering the pellet under suitable temperature
  • Then, a new material sample is formed!

Pressing die installation schematic

Cautions
  • Please must always wear protective goggles during operation !!!
  • Please use alcohol to clean the pressing die every time before use and store it in a dry place with antirust oil after used to avoid rusting on the surface because all pressing dies are made by high-stretched carbon steel for achieving high hardness to meet essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched.
Application Note
  • You may consider using BNMR for easy mold release. Please click the picture below to order.
