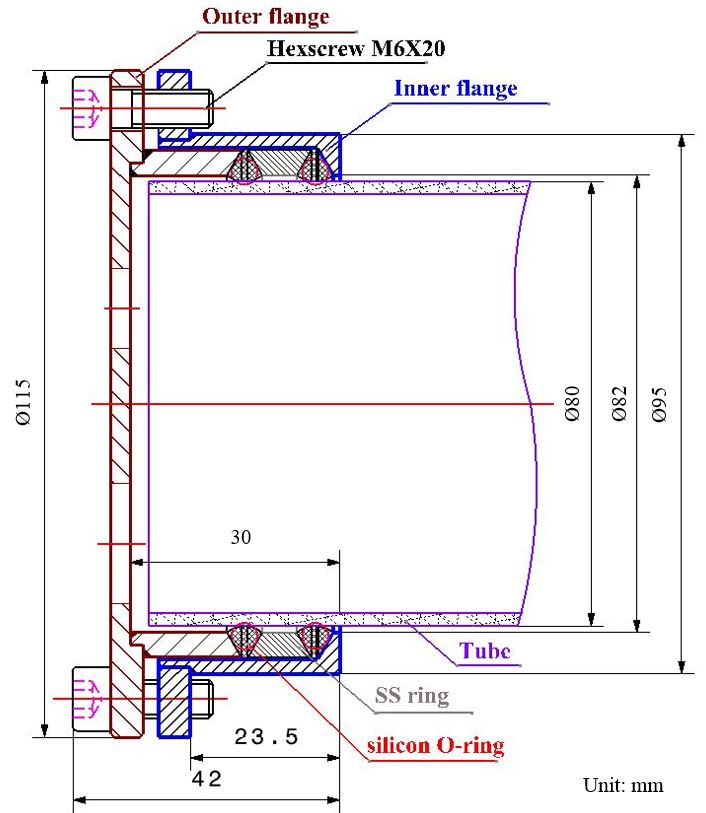

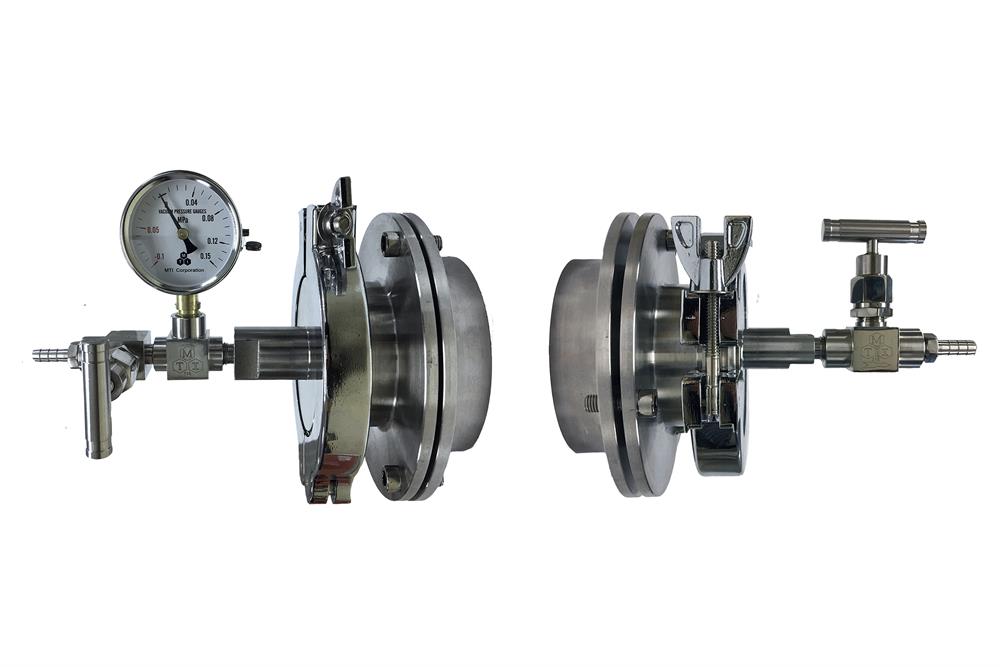

Quick Clamp Vacuum Sealing Assembly for 80mm dia Tube Furance with KF50 Vaccum Port - FL80QC

This is a quick clamp vacuum sealing assembly for tube vacuum furnace tube of OD 80 mm with no welding or gluing needed.

SPECIFICATIONS

Features	Stainless steel flange with double high-temperature silicon O-rings. Seal tube by tightening screws on the flange with no welding and glue needed. Clamp allows quick access to content inside the furnace. High-temperature silicon O-ring and centering ring at flange cap. 1/4" in diameter vacuum sealing assembly connects with rubber hose. Ideal for any type of tubing: ceramic, glass, quartz and steel pipe.
Vacuum Level	10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and  10-6 torr by hi-speed turbopump
Optional Parts	For precision vacuum control up to 10-4 torr, please choose our Digital Vacuum Gauge. (Fig.1) For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2) We provide various Fitting Ends for separate purchase. (Fig.3) For advanced control over gas flow, please choose our Float-meter. (Fig.4) The product requires flange support, please consider our Adjustable Tube Support. (Fig.5)
Warning	A refractory tube block is required in front of the flange to avoid silicone O-ring melting.  Please consider purchasing our ceramic tube block This product is heavy, flange support is required to avoid damage on the furnace tube. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Related Products	( Click pic to choose other size flanges)                                    Vacuum Pump & High Vacuum Station

STANDARD PACKAGE:
