Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

Vacuum Sealing Flange with Six 1/4" Feedthroughs for 80mm O.D. Tube - FL80-6FTR

SKU: fl80-6ftr

Price: RFQ

Specifications

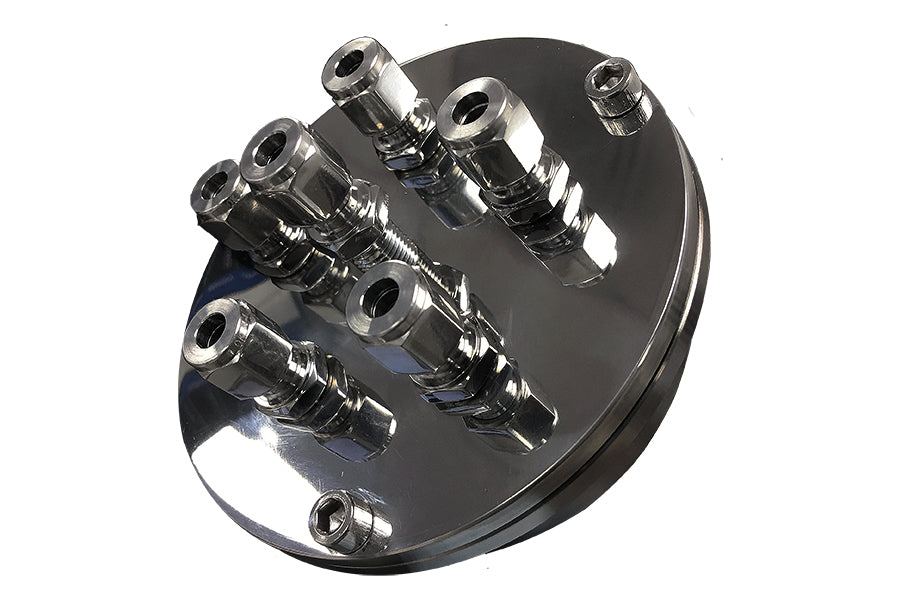

This is a single-side flange for an 80mm O.D. tube with six 1/4" tube fittings. It provides multiple feed-throughs for various gasses delivery and thermocouple insert.

Features

  • SS304 stainless steel flange with double high-temperature silicon O-rings
  • Hex screw tube sealing with no welding or gluing needed.
  • Ideal for any type of tubing: ceramic, glass, quartz, steel pipes, etc.
  • Multiple feed-throughs for various gasses delivery and thermocouple insert.
  • Designed with two configurations, please select on the options bar:
    • Configuration 1: Six ports in a circle

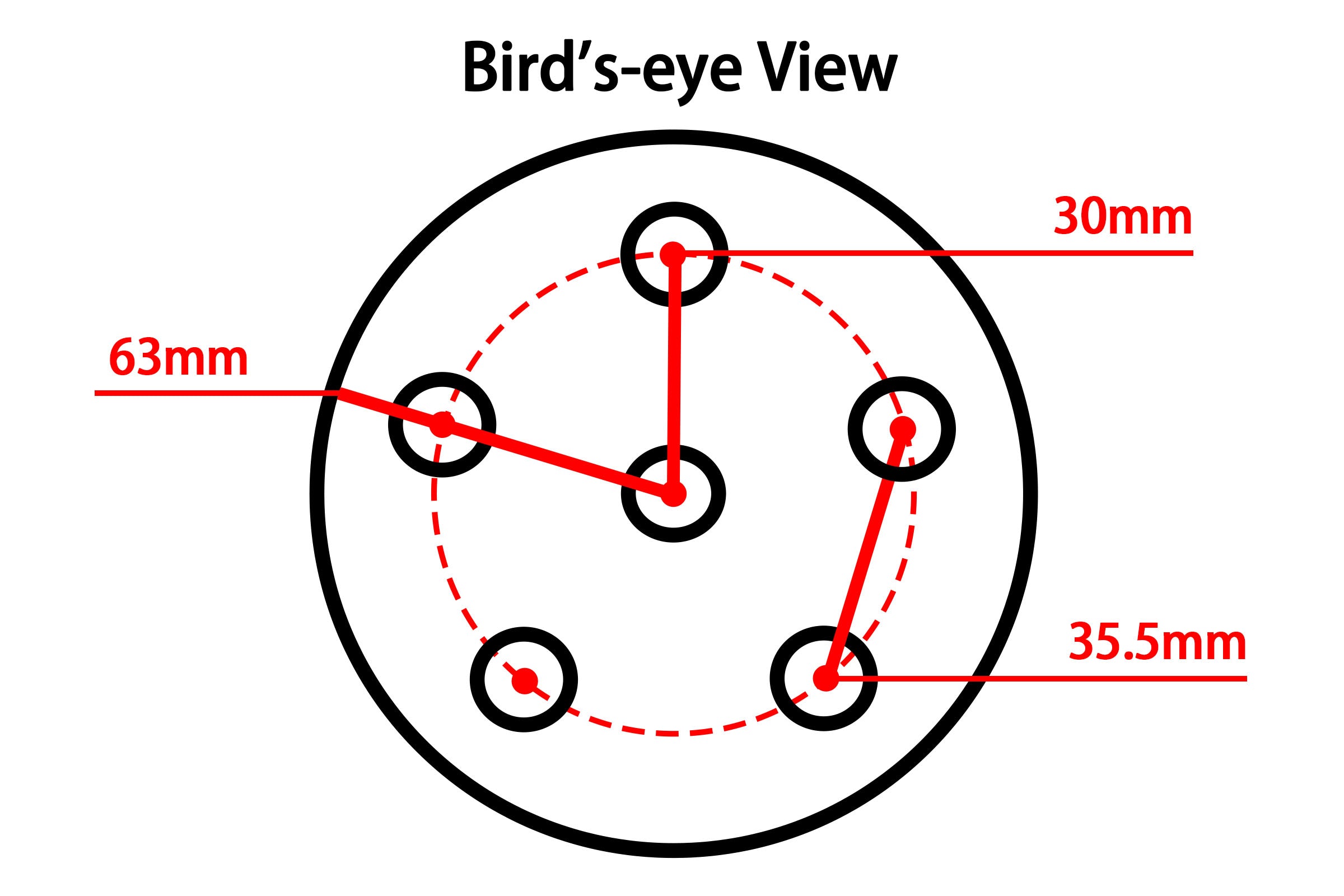

    • Configuration 2: Five ports in a circle and one in the center
Structure & Option
  • Flange for 80mm O.D. tube
  • Six 1/4" feedthrough with ferrule tube fitting

Vacuum Level 10-5 torr (molecular pump)and 10-2 torr( mechanical pump)
Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
  • Please consider purchasing our ceramic tube block.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Related Products
,
Part Number Part Name Qty
1 Inner and Outer Flange 1 pair
2 Feedthrough Nut 6
3 Ferrule Fitting 6 pairs
4 Centering Ring 1
5 Hex sealing screws 3
6 High-Temperature Silicone O-ring (White) 1
