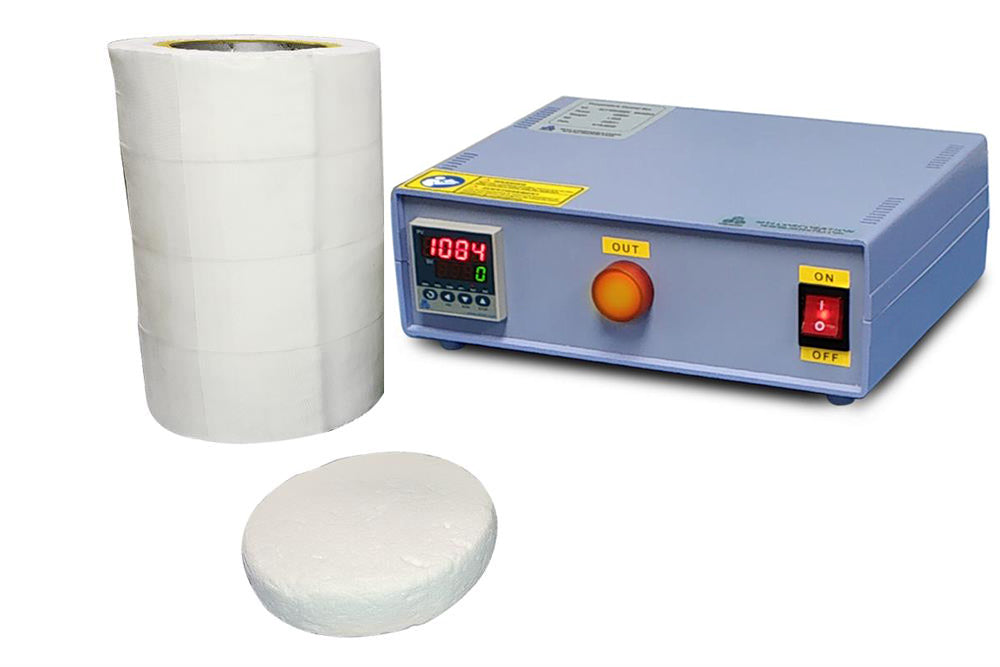

Heating Jacket and Temperature Controller for Bubbler / Evaporator - HCBL
  • Heating Jacket and Temperature Controller for Bubbler / Evaporator - HCBL
Heating Jacket and Temperature Controller for Bubbler / Evaporator - HCBL

Heating Jacket and Temperature Controller for Bubbler / Evaporator - HCBL

SKU: hc-bl

Price: RFQ

Specifications

 This is a heating jacket designed for our Bubbler / Evaporator for Liquid Precursors Delivery in CVD Processes (150, 300, 600 or 1000ml optional) - BL-SS SPECIFICATIONS: Model# EQ-HC-BL-150 for BL-SS-150 EQ-HC-BL -300 for BL-SS-300 EQ-HC-BL -600 for BL-SS-600 EQ-HC-BL -1000 for BL-SS-1000 Heating Jacket Dimension 111 mm O.D. 53 mm I.D. 80mm Height 98mm O.D. 51.5 mm ID 173 mm H 140mm O.D. 75 mm I.D. 205 mm Height. 120mm O.D. 75mm I.D. 300 mm Height Max. Working Temp. 250°C (Heating Jacket Capacity) 150 °C (for BL-SS-150 and BL-SS-300 due to O-ring) 250°C 250°C 250°C Thermocouple K Type Alumina Platform One alumina base is included for minimizing temperature lost through the bottom of the bubbler. Geometry is either round or square, depending on availability. Temperature Control Single-point PID temperature controller Standard:110-120VAC, 1000W; 208-240VAC is also available upon request. Control accuracy +/-1.0 o C Optional Designed for Bubbler / Evaporator for Liquid Precursors Delivery BL-SS Please click the picture below to order the bubbler separately Compliance CE Certified NRTL or CSA certification is available upon request

Model#

EQ-HC-BL-150 for BL-SS-150
 		EQ-HC-BL-300 for BL-SS-300

 EQ-HC-BL-600 for BL-SS-600
 		EQ-HC-BL-1000 for BL-SS-1000
Heating Jacket Dimension 111 mm O.D.
53 mm I.D.
80mm Height		 98mm O.D.
51.5 mm ID
173 mm H		 140mm O.D.
75 mm I.D.
205 mm Height.		 120mm O.D.
75mm I.D.
300 mm Height
Max. Working Temp. 250°C (Heating Jacket Capacity)
150 °C (for BL-SS-150 and BL-SS-300 due to O-ring)		 250°C 250°C 250°C
Thermocouple K Type
Alumina Platform
  • One alumina base is included for minimizing temperature lost through the bottom of the bubbler.
  • Geometry is either round or square, depending on availability.

Temperature Control
  • Single-point PID temperature controller
  • Standard:110-120VAC, 1000W; 208-240VAC is also available upon request.
  • Control accuracy +/-1.0 oC
Optional
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request
