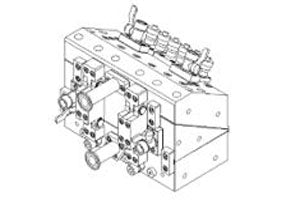

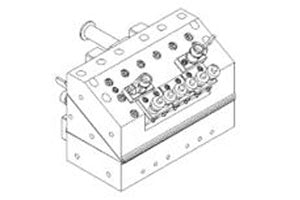

Slot Die Head with Dual Channels for Roll-to-Roll Bilayer Coating-MSK-PWHM-CP
  • Slot Die Head with Dual Channels for Roll-to-Roll Bilayer Coating-MSK-PWHM-CP
  • Slot Die Head with Dual Channels for Roll-to-Roll Bilayer Coating-MSK-PWHM-CP
  • Slot Die Head with Dual Channels for Roll-to-Roll Bilayer Coating-MSK-PWHM-CP
Slot Die Head with Dual Channels for Roll-to-Roll Bilayer Coating-MSK-PWHM-CP

Slot Die Head with Dual Channels for Roll-to-Roll Bilayer Coating-MSK-PWHM-CP

SKU: msk-pwhm-cp

Price: RFQ

Specifications

 MSK-PWHM-CP is special slot die head with dual channels for simultaneous roll-to-roll bilayers, which is compatible with MSK-AFA-200 (MSK-PWHM-CP160), MSK-AFA-300-LD (MSK-PWHM-CP260), MSK-AFA-MC400-LD (MSK-PWHM-CP360). Bilayer Coating Mechanism Two slurries with different properties were pumped into the slot die channels for bilayer coatings. Coating Head Adjustment Upper coating head: digital micrometer adjustment (thickness resolution of 1 um) Bottom coating head: manual pushing rod adjustment Channels of Slot Die Head Upper channel: semi-sphere, single channel Bottom channel: semi-sphere, two channels Length: 260 mm Materials Slot die head: SUS630 Other parts contacted with slurry: SUS304 Sealing parts: silicone, EPDM, PTFE

Bilayer Coating Mechanism
  • Two slurries with different properties were pumped into the slot die channels for bilayer coatings.


Coating Head Adjustment
  • Upper coating head: digital micrometer adjustment (thickness resolution of 1 um)
  • Bottom coating head: manual pushing rod adjustment
Channels of Slot Die Head
  • Upper channel: semi-sphere, single channel
  • Bottom channel: semi-sphere, two channels
  • Length: 260 mm
 Materials
  • Slot die head: SUS630
  • Other parts contacted with slurry: SUS304
  • Sealing parts: silicone, EPDM, PTFE
