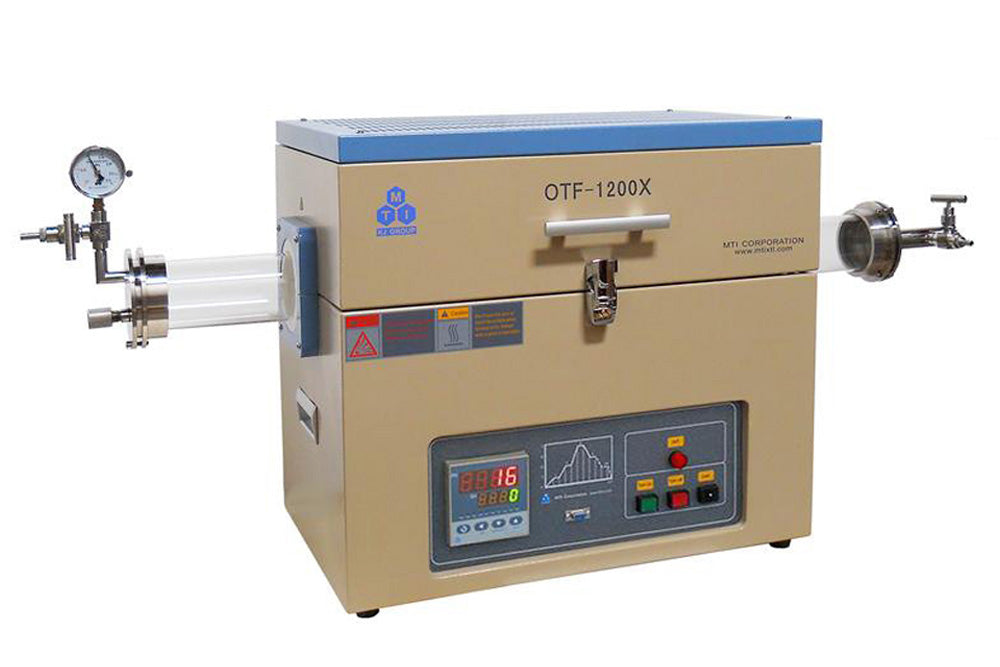

1200C Split Tube Furnace (18" heating zone) with Optional Quartz Tube Size & Flange - OTF1200X

• A double-layer steel casing with air cooling keeps furnace surface temperature lower than 60°C.
• High purity fibrous alumina insulation for maximum energy saving.
• The special refractory coating on the liner and heating element increases furnace life.
• Split cover with Interlock protection, cut the power if the door opens during furnace heating process.

• Input voltage 208 - 240VAC Single Phase, 50/60Hz
  3KW, Circuit breaker 20A

• Fe-Cr-Al Alloy doped by Mo
• Max. heating temperature: 1200°C ( inert gas must be filled inside the tube to resist deformation)
• Vacuum heating temperature: 1000°C under vacuum
• Heating rate: 20°C /min Ma
• Thermal Couples: K type 220mm (8.7") Length with Ceramic Sheath, please click the link to order spare.

• Total heating zone length: 440mm (~ 18")
• Constant temperature zone: 150mm (+/2°C)
• Temperature uniformity:
  • +/- 10°C @ 1000°C in the center 320mm area
  • +/- 5°C @ 1000°C in the center 220mm area

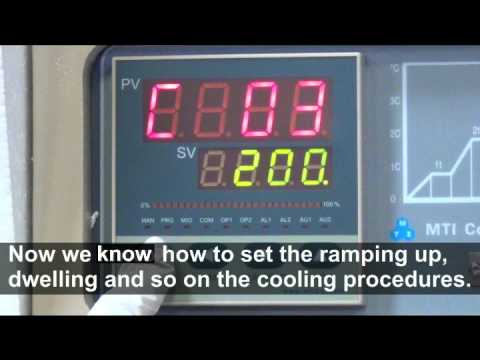

• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling, and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default DB9 PC communication port
• The software for PC software is included

• The temperature controller can be graded to the Eurotherm 3000 Temperature Controller with +/- 0.1°C accuracies. This package includes a Eurotherm 3004 programmer, a communication cable (RS485 - USB), and a software CD. Click the pic below to view the full specs

OTF-1200X-100
101 O.Dx92 I.Dx 1000mm L

Multi-Stack Quartz Thermal Block

• Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
• Quartz blocks (optional) are ideal for cleaner processing and higher vacuum efficiency.
• You may order flange support to avoid tube rotating ( click Pic below right )

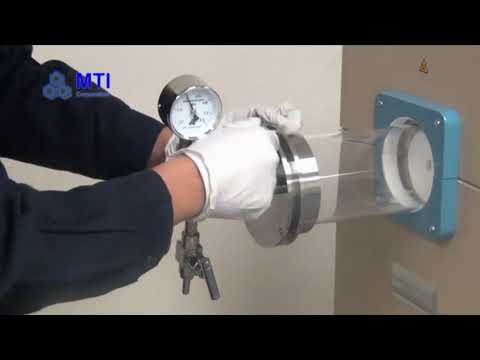

• One pair of SS 304 vacuum flange is included
• Left flange:
• one thermal feedthrough (for 1/4O.D sheathed thermocouple)
• one needle valve
• one mechanical vacuum gauge -0.1Mpa to 0.15Mpa
• one barb fitting ( click PiC, below left-2 for detail)
• Right flange:
• one KF-25 vacuum port and one needle valve.
• Optional
• An anti-Corrosive gas-type independent (above 10mbar) digital vacuum gauge with a wide range between 3.8x10^-5 to 1125 Torr is optional. Aside from greater measurement precision, this gauge reduces the risks of chamber explosions caused by the incorrect reading of gas pressures due to gas-type dependency.
• The flange with quartz window is available for in-situ Raman or Mossbauer analysis

• 10E-2 torr by a quality mechanical vacuum pump
• 10E-5 torr by the turbopump.
• The vacuum pump is optional. Please click here to choose a vacuum pump.

• CE Certificate
• NRTL or CSA certification is available upon request and at an extra cost

• Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°CThe flow rate for gasses should be limited to<200 SCCM (or 200ml/min)
• The heating module is consumable. Please click picture 1cto order a replacement.
• The automatic vacuum-sealed sliding device is available for fast heating and cooling ( Pic. 2)
• Pic. 1Pic.2

• Click here to learn How to set up a quartz/ ceramic tube and vacuum flange for an MTI Tube furnace.
