SKU: rf-300i-ld

Price: RFQ

Description

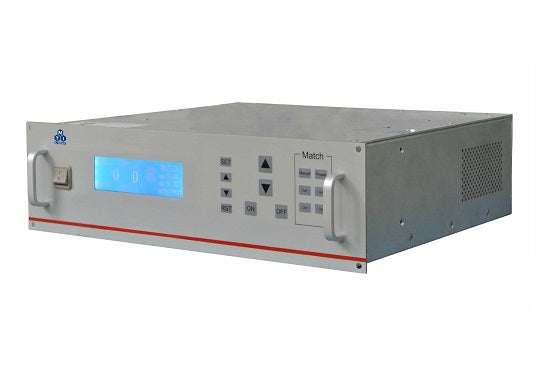

 RF-300I is a compact 300W auto-match RF generator with 13.56Mhz frequency, which integrated the auto-matching network together with 13.56 MHz RF Generator into one unit and made installation and operation much easier. It can be operated with MTI magnetron sputtering source to DIY a small RF film coater at a flexible budget. SPECIFICATIONS: Input Power 220VAC, 50/60Hz or 110VAC, 60Hz selectable Max. current: 1.5A RF Power Generator with auto-matching Output Power: 5 -300W adjustable with ± 1% stability RF frequency: 13.56 MHz ±0.005% stability Matching: Automatic with variable air capacitor Cooling: Air cooling Noise: <50 dB Power: 110 -240VAC, 50/60Hz Dimension: 400 W x 450 D x 80 H, mm Dimension Optional Accessories Click here to order You may order 2" High Vacuum Magnetron Sputter Source For DIY RF & DC Sputtering Coater together with RF power supply for immediate use High Vacuum Quick Disconnect is included when you order 300W RF generator together with the 2" sputtering source. High Vacuum Quick Disconnect with 0.75" ID (compatible with HVMSS-SPC-2). Use this component to install the HVMSS-SPC-2 sputtering tool onto the baseplate (up to 1” thick) of a vacuum chamber with 1” diameter through-hole Digital Temperature Controlled Circulating Water Chiller with 6 Liters Tank, 16L / min Flow is available at extra cost, please order separately. 148 cm RF cable is recommended with extra cost (click Pic. right 1 to order)

Input Power
  • 220VAC, 50/60Hz or 110VAC, 60Hz selectable
  • Max. current: 1.5A
RF Power Generator
with auto-matching
  • Output Power: 5 -300W adjustable with ± 1% stability
  • RF frequency: 13.56 MHz ±0.005% stability
  • Matching: Automatic with variable air capacitor
  • Cooling: Air cooling
  • Noise: <50 dB
  • Power: 110 -240VAC, 50/60Hz
  • Dimension: 400 W x 450 D x 80 H, mm
Dimension
Optional Accessories
Click here to order
  • You may order 2" High Vacuum Magnetron Sputter Source For DIY RF & DC Sputtering Coater  together with RF power supply for immediate use
  • High Vacuum Quick Disconnect is included when you order 300W RF generator together with the 2" sputtering source.
  • High Vacuum Quick Disconnect with 0.75" ID (compatible with HVMSS-SPC-2). Use this component to install the HVMSS-SPC-2 sputtering tool onto the baseplate (up to 1” thick) of a vacuum chamber with 1” diameter through-hole
  • Digital Temperature Controlled Circulating Water Chiller with 6 Liters Tank, 16L / min Flow is available at extra cost, please order separately.
  • 148 cm RF cable is recommended with extra cost (click Pic. right 1 to order)
