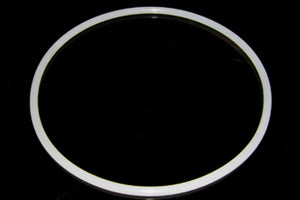

High Temperature Silicone Rubber O-ring (a pair) for I.D 230mm tube for GSl-1100X8- SOR230
  • High Temperature Silicone Rubber O-ring (a pair) for I.D 230mm tube for GSl-1100X8- SOR230
High Temperature Silicone Rubber O-ring (a pair) for I.D 230mm tube for GSl-1100X8- SOR230

High Temperature Silicone Rubber O-ring (a pair) for I.D 230mm tube for GSl-1100X8- SOR230

SKU: sor-230

Price: RFQ

Specifications

 This is a high temperature silicone rubber O ring for with I.D 230mm for MTI's GSL-1100X8.5 tube furnace. Materials: Silicone Temperature Resistance: 300 o C ID: 230 mm (see photo below) W: 5.3 mm (see photo below) Used to seal the hinge type flange of GSL-1100X-8.5 . O ring for inner flange: Used as EQ-FL-216 Sealing O-rings Excellent for any type of tubing: ceramic, glass, quartz and steel pipe. OD:    240.6 mm ID:      230 mm W:      5.3 mm Warning Must put a refractory tube block in front of flange ( see picture below ) to avoid heat radiation melt silicone O-ring.  You may order a ceramic block in related products

,
  • OD:    240.6 mm
  • ID:      230 mm
  • W:      5.3 mm
,
Warning Must put a refractory tube block in front of flange ( see picture below ) to avoid heat radiation melt silicone O-ring.  You may order a ceramic block in related products
