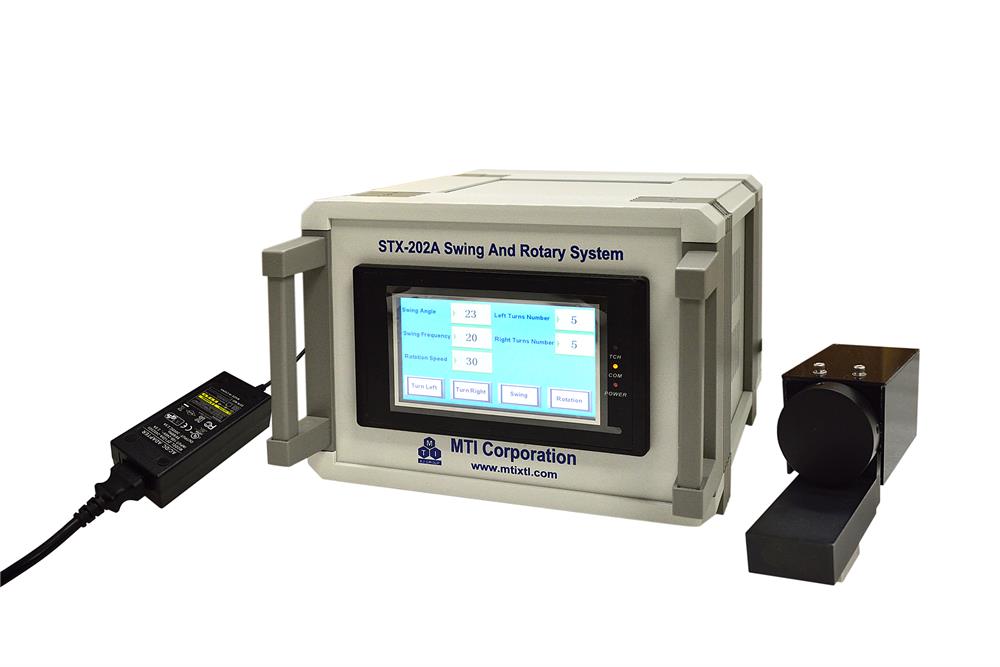

Swing / Rotary Sample Fixture and Rotation Control System for STX-202 Precision Diamond Wire Saw - S202SR
  • Swing / Rotary Sample Fixture and Rotation Control System for STX-202 Precision Diamond Wire Saw - S202SR
Swing / Rotary Sample Fixture and Rotation Control System for STX-202 Precision Diamond Wire Saw - S202SR

Swing / Rotary Sample Fixture and Rotation Control System for STX-202 Precision Diamond Wire Saw - S202SR

SKU: stx-202p-sr

Price: RFQ

Specifications

 STX-202P-SR is a premium add-on for STX-202A & STX-202P Precision Diamond Wire Saw. It is the combination of Swing / Rotary Sample Fixture and Rotation Control System. The Sample Fixture promotes higher efficiency and better cut surface quality. The independent Rotation Control System allows customization of its parameter settings such as swing frequency/ angle (±23°, up to 20 swings/min), rotating speed and rounds (30rpm max.) Higher cutting surface quality can be expected by swinging or rotating the specimen throughout the cutting process. Specification : Input Voltage DC24V (110/220VAC to 24VDC power adaptor included) Swing Angle ±23° Swing Frequency 1 - 20 swings/min Number of Turns 1 - 999 turns (for both clockwise and counterclockwise) Rotating Speed 1 -30rpm Max. Cutting Diameter Ø50mm Sample Plate Dia. Ø48mm Controller Interface Dimensions Sample Fixture: 140mm(L) x 54mm(W) x 90mm(H) Control System: 205mm(L) x 250mm(W) x 160mm(H) Weight Sample Fixture: 1.65lbs Control System: 5.85lbs Operation Video

Input Voltage DC24V (110/220VAC to 24VDC power adaptor included)
Swing Angle ±23°
Swing Frequency 1 - 20 swings/min
Number of Turns 1 - 999 turns (for both clockwise and counterclockwise)
Rotating Speed 1 -30rpm
Max. Cutting Diameter Ø50mm
Sample Plate Dia. Ø48mm
Controller Interface
Dimensions Sample Fixture: 140mm(L) x 54mm(W) x 90mm(H)
Control System: 205mm(L) x 250mm(W) x 160mm(H)
Weight Sample Fixture: 1.65lbs
Control System: 5.85lbs
Operation Video
