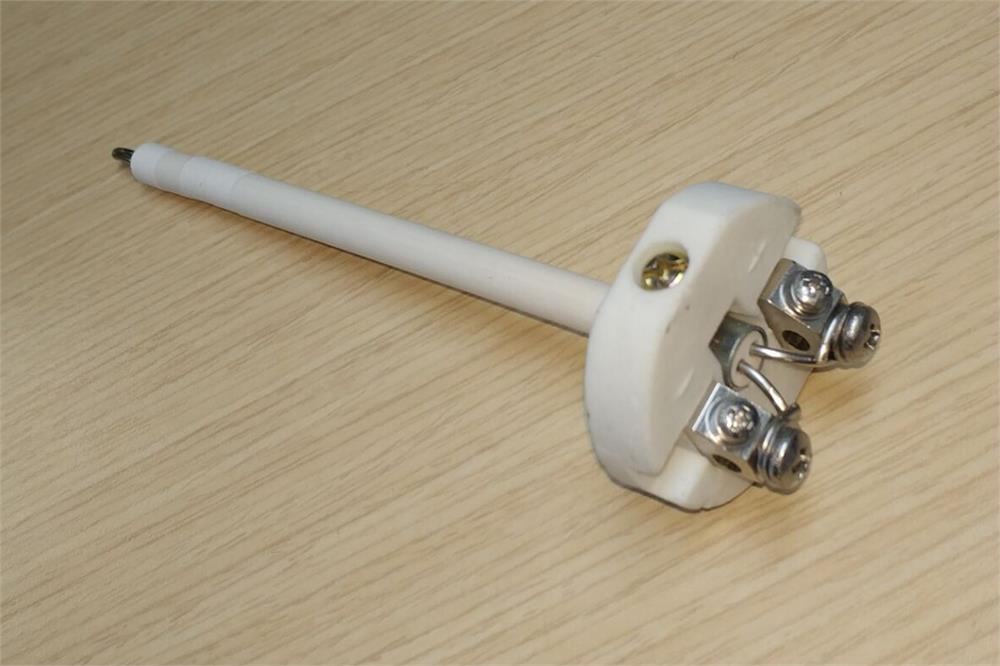

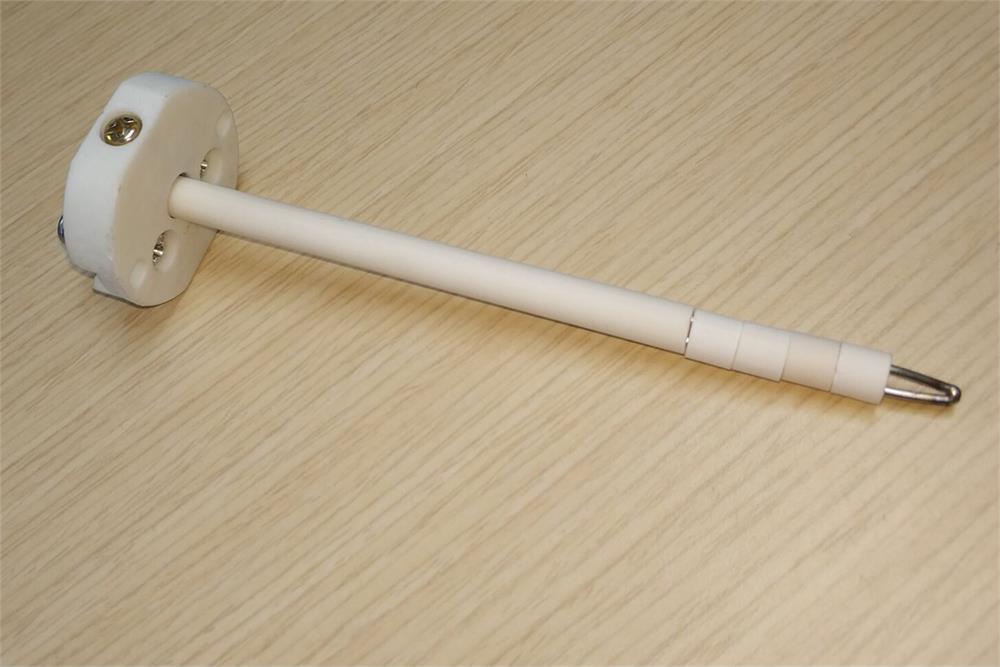

Ready-to-Use Thermocouple: K type (Ni-Cr/Ni-Al) 118.5 mm (4.6") Length with Ceramic Sheath - TCK11
  • Ready-to-Use Thermocouple: K type (Ni-Cr/Ni-Al) 118.5 mm (4.6") Length with Ceramic Sheath - TCK11
  • Ready-to-Use Thermocouple: K type (Ni-Cr/Ni-Al) 118.5 mm (4.6") Length with Ceramic Sheath - TCK11
Ready-to-Use Thermocouple: K type (Ni-Cr/Ni-Al) 118.5 mm (4.6") Length with Ceramic Sheath - TCK11

Ready-to-Use Thermocouple: K type (Ni-Cr/Ni-Al) 118.5 mm (4.6") Length with Ceramic Sheath - TCK11

SKU: tc-k-11

Price: RFQ

Specifications

 Features: K-type thermocouple probe for measuring high heat applications at temperature up to 1250 o C Suitable for room temperature - 1200 o C series furnaces, such as the KSL-1200X-J Ceramic end holder with screws to connect thermocouple to a temperature controller

  Specifications:
  • Length:                        118.5 mm (4.6")
  • Diameter of sheath:       8 mm, high purity Alumina
  • Positive Material:           Nickel-Chromium
  • Negative Material:          Nickel-Aluminum
  • Wire diameter:               1.5 mm
  • Lowest Temperature:     -200 oC
  • Highest Temperature:    1250  oC
  • Minimum Std. Error:      +/- 2.2  oC

  • A=77mm
  • B=41.5mm
