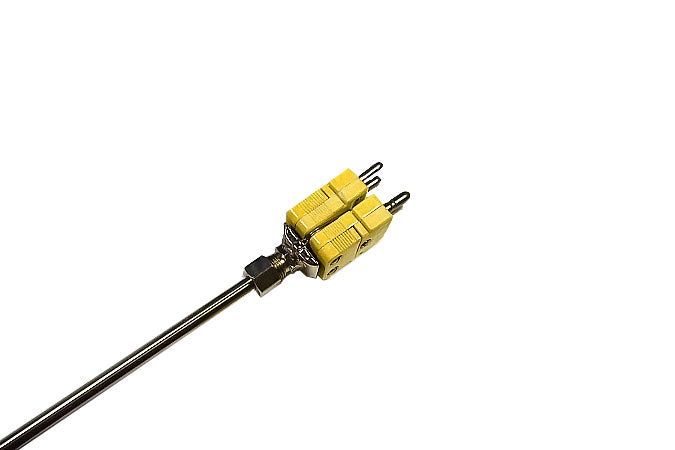

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

RM0.00 MYR
RM0.00 MYR
Skip to product information
Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD
  • Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD
Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

Dual Element Thermocouple: K type 12" L x 1/4" Dia - EQ-TC-K-Cali-12S-Dual-LD

SKU: tck12sd

Price: RFQ

Description

 This is a Dual Element K Thermocouple for the use on MTI KSL-1100X-AC-5S Five Side Heating Atmosphere Controlled Muffle Furnace Features Super Accurate, Super Stable, Super Value Allows two readings at a single point Built-in Backup For Use with Temperatures Up to 1335 o C (2440 o F) Excellent Long Term Stability at High Temperature Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance Excellent Oxidation, Carburization and Chlorination Resistance Length 12" Diameter of Sheath 1/4" Material Positive: Ni-Cr Negative:  Ni-Al Temperature Range -200 o C to 1335 o C Application Note There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may result temperature measuring error. It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Put a magnet up to each wire as one will be more magnetic than the other.

Features
  • Super Accurate, Super Stable, Super Value
  • Allows two readings at a single point
  • Built-in Backup
  • For Use with Temperatures Up to 1335 oC (2440 o F)
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Excellent Oxidation, Carburization and Chlorination Resistance
Length
  • 12"
Diameter of Sheath
  • 1/4"
Material
  • Positive:   Ni-Cr
  • Negative:  Ni-Al
Temperature Range
  • -200 oC to 1335 oC
Application Note
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may result temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Put a magnet up to each wire as one will be more magnetic than the other.
