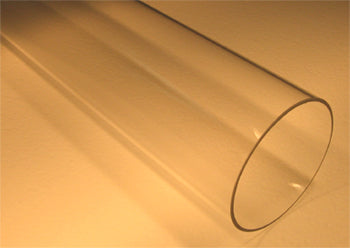

Quartz Tube: 60ODx55IDx1000 L mm (2.36"O.D x 2.16"I.D x 40" L) for DIY Tube Furnace -TQ60D1000
  • Quartz Tube: 60ODx55IDx1000 L mm (2.36"O.D x 2.16"I.D x 40" L) for DIY Tube Furnace -TQ60D1000
Quartz Tube: 60ODx55IDx1000 L mm (2.36"O.D x 2.16"I.D x 40" L) for DIY Tube Furnace -TQ60D1000

Quartz Tube: 60ODx55IDx1000 L mm (2.36"O.D x 2.16"I.D x 40" L) for DIY Tube Furnace -TQ60D1000

SKU: tq60d1000

Price: RFQ

Specifications

 MTI Corporation provides high-purity quartz tubes as the replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperatures up to 1200ºC. Purchase Notes: Please make sure the specification of the tube meets your needs before making a purchase. Since Nov 10, 2016, we no longer accept return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, or covered under the warranty (Consumables) . We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damage upon arrival please contact us. SPECIFICATIONS O.D 60mm ±0.5mm (2.36") I.D 55mm ±0.5mm (2.17") Tube Length 1000mm (40") Max. Operating Temperature 1200ºC Application Notes Vacuum pressures may only be safely used up to 1000°C The flow rate for gases should be limited to<200 SCCM (or 200ml/min) to reduce thermal shocks to the tube Quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa In order to get a longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat: Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

O.D 60mm ±0.5mm (2.36")
I.D 55mm ±0.5mm (2.17")
Tube Length 1000mm (40")
Max. Operating Temperature 1200ºC
Application Notes
  • Vacuum pressures may only be safely used up to 1000°C
  • The flow rate for gases should be limited to<200 SCCM (or 200ml/min) to reduce thermal shocks to the tube
  • Quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
  • In order to get a longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
