100T Electric Cold Isostatic Pressing (CIP) with ID 35/50/60/80 mm Vessel - YLJ-CIP-XXA

100T Electric Cold Isostatic Pressing (CIP) with ID 35/50/60/80 mm Vessel - YLJ-CIP-XXA

SKU: ylj-cip-xxa

Price: RFQ

Specifications

 YLJ-CIP-AXX is an electric cold isostatic pressing (CIP) machine operated via a 100T electric hydraulic pump with optional 35. 50, 60, 80mm ID CIP vessel up to 900 Mpa. It is an excellent tool for preparing many high-density ceramic rods, disks or targets. compared to dry die pressing. SPECIFICATIONS: Hydraulic Press Max. 100 Metric Tons Digital pressure display (unit KN) 10 - 100T adjusted by manual ON/OFF valve Display real pressure on the sample based on die size Pressure accuracy: +/- 1% by adjusting hydraulic oil valve Electric Hydraulic Pump Standard: 220V±10% AC (single phase, 50/60hz) 750W AC motor Optional: 110V to 220V transformer for using under 110V Pressure Controller Digital control panel Built-in paper printer to print out strength data Bottom Hydraulic Cylinder Travel Distance 0 - 20 mm Range sensing switch to prevent travel distance beyond 20 mm Top Support Screw Adjustable Height 310 mm Working Space Top & Bottom working plate: 240 Lx 240 W x 300 H, mm Moving Cart The Cart for the CIP Die moving is included Press Cover A metal door with a magnetic door latch Note: For safety, please close the door before operating Optional CIP Die The optional die is available for this 100T hydraulic press The ID of CIP Die (mm) 35 50 60 80 Max. Pressure (MPa) 900 500 300 200 Max Force to apply ( T) 86.6 98.1 84.7 100 Click Pic to order Compliance CE Certified NRTL (UL or CSA) Certification is available upon request at an extra cost Application Notes You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation. Y ou may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order) You may use the machine as a dry pressing to order pressing die (click Pic below right) Pic. 1 Pic. 2 Pic. 3

Hydraulic Press
  • Max. 100 Metric Tons
  • Digital pressure display (unit KN)
  • 10 - 100T adjusted by manual ON/OFF valve
  • Display real pressure on the sample based on die size
  • Pressure accuracy: +/- 1% by adjusting hydraulic oil valve
Electric Hydraulic Pump

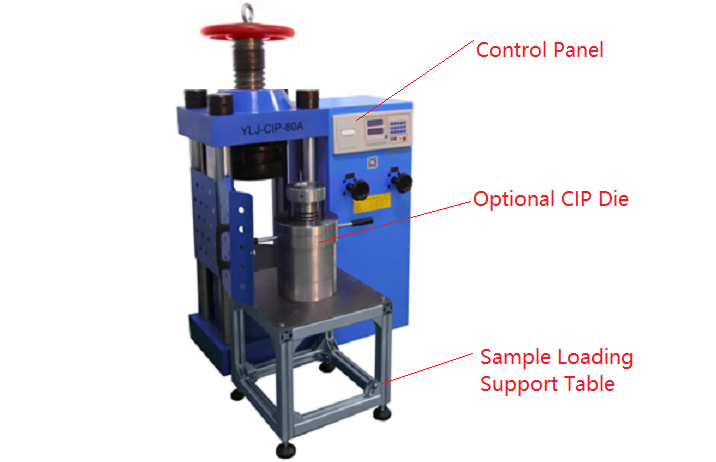

Pressure Controller
  • Digital control panel
  • Built-in paper printer to print out strength data
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 20 mm
  • Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height
  • 310 mm

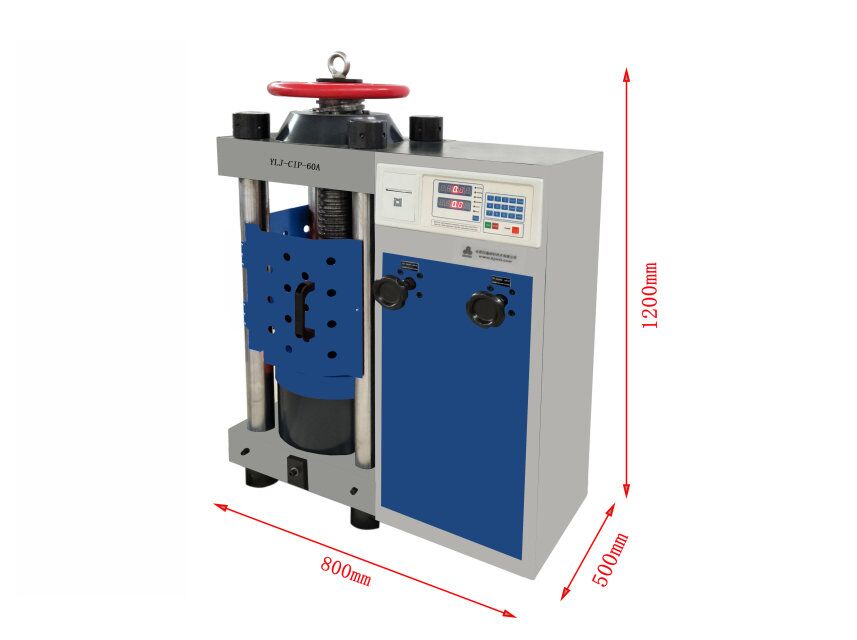

Working Space
  • Top & Bottom working plate: 240 Lx 240 W x 300 H, mm

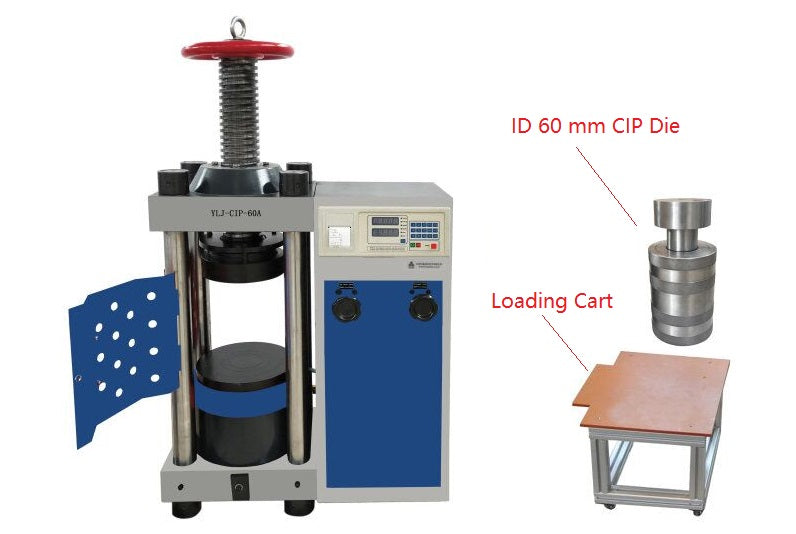

Moving Cart
  • The Cart for the CIP Die moving is included
Press Cover
  • A metal door with a magnetic door latch
  • Note: For safety, please close the door before operating

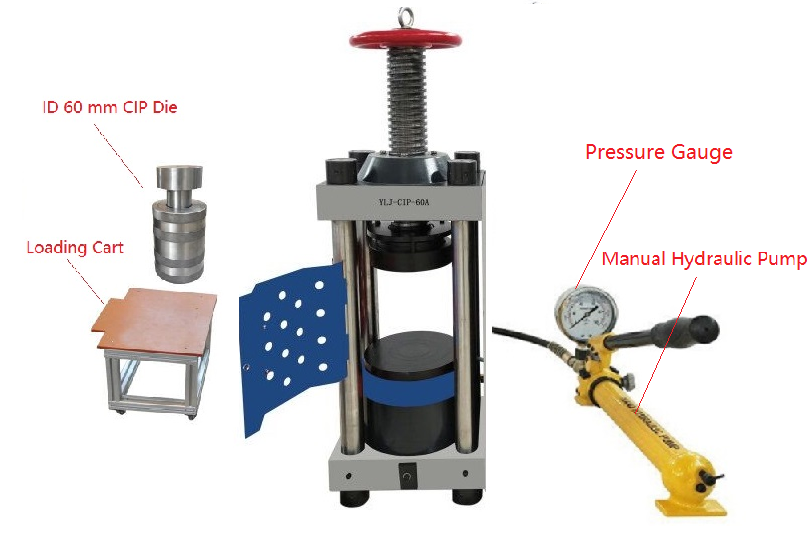

Optional CIP Die
  • The optional die is available for this 100T hydraulic press
The ID of CIP Die (mm) 35 50 60 80
Max. Pressure (MPa) 900 500 300 200
Max Force to apply ( T) 86.6 98.1 84.7  100
Click Pic to order
Compliance
  • CE Certified
  • NRTL (UL or CSA) Certification is available upon request at an extra cost
Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  • Pic. 1  Pic. 2 Pic. 3
,
The ID of CIP Die (mm) 35 50 60 80
Max. Pressure (MPa) 900 500 300 200
Max Force to apply ( T) 86.6 98.1 84.7  100
Click Pic to order
