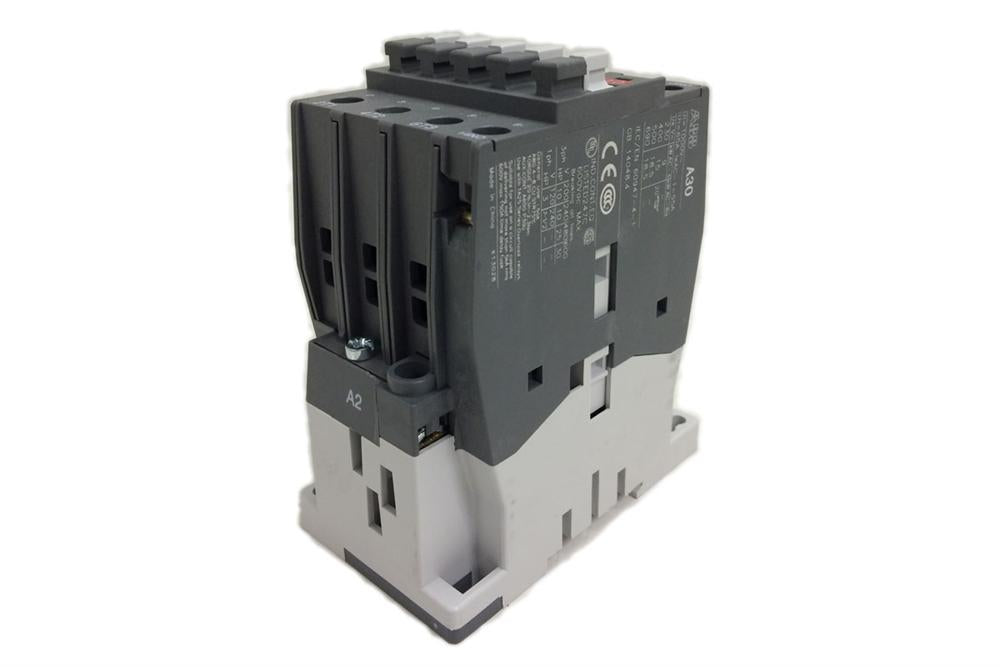

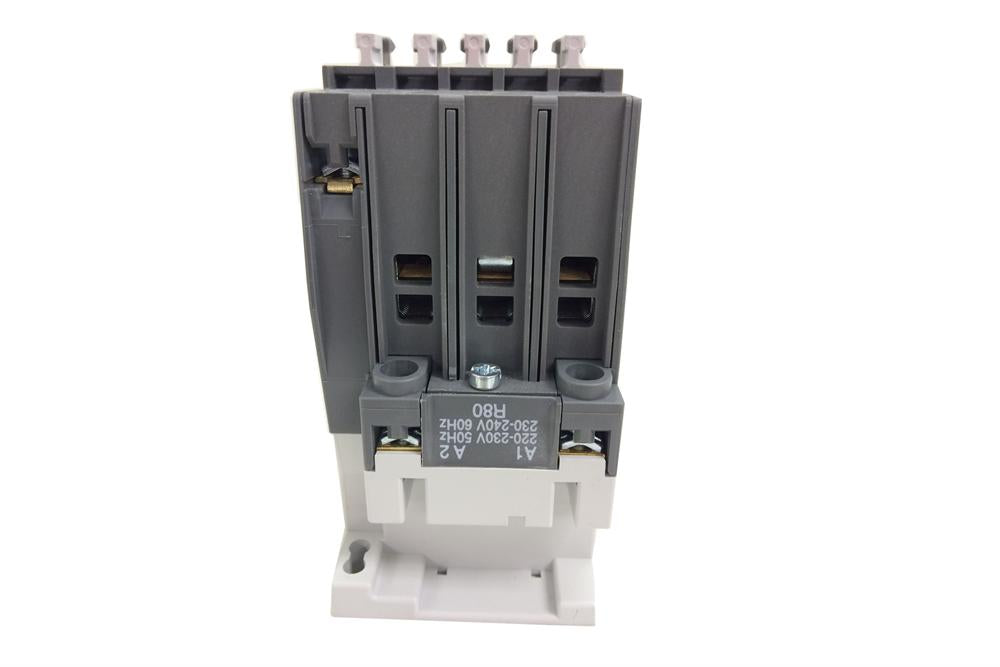

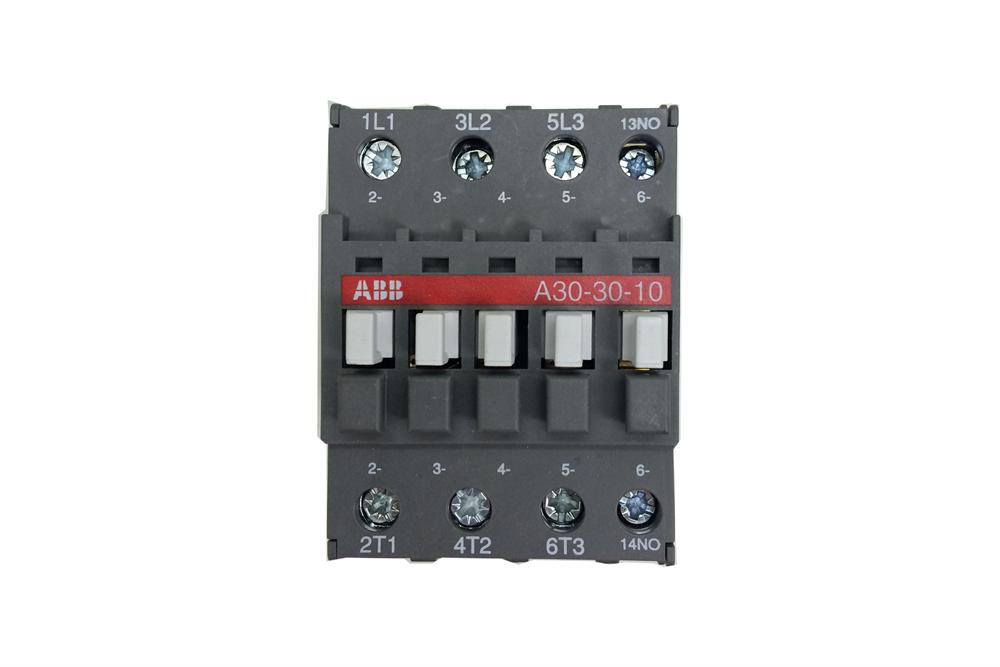

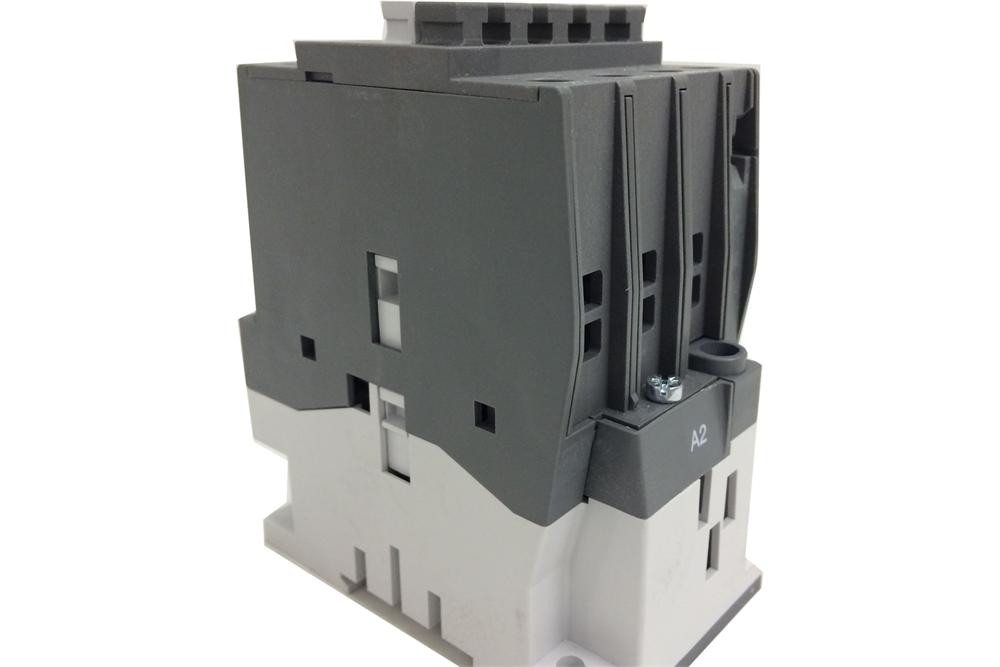

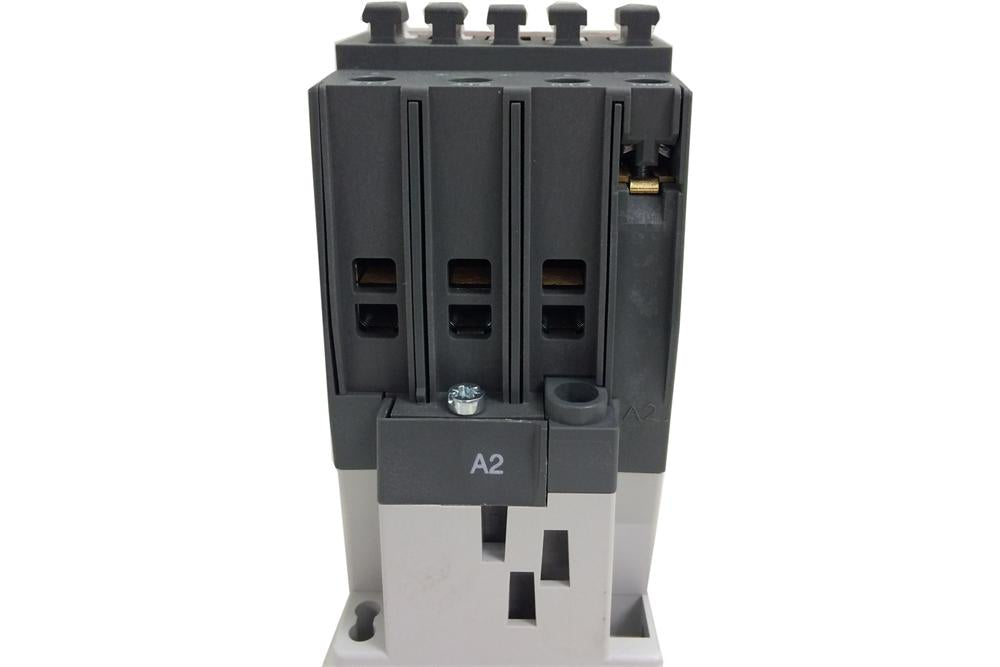

ABB AC Contactor UL 220V 50Hz/60Hz - FA-ABB-ACC-SERIES

A12-30-10 (12A 110VAC)

RM0.00 MYR

ABB AC Contactor UL 220V 50Hz/60Hz - FA-ABB-ACC-SERIES

SKU: abb-ac-contactor-ul-220v-50hz-60hz-fa-abb-acc-series

Price: RFQ

Option

Description

ABB AC contactors A series are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The A series 1-stack 3-pole contactors are of the block type design. Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit. Specification: A12-30-10 A26-30-10 A30-30-10 A40-30-10 A50-30-10 A50-30-11 A63-30-10 A63-30-11 Voltage 110~120 VAC 50 Hz 220/230 V 60 Hz 230/240 V Current 12A 26A 30A 60A No. of Main Contacts NO 3 No. of Main Contacts NC 0 No. of Auxiliary Contacts NO 1 1 1 1 1 1 1 1 No. of Auxiliary Contacts NC 0 0 0 0 0 1 0 1 Replacement For OTF-1200X-4-R-II-UL KSL-1200X-AC-5S Power (220 / 230 / 240V) 9 kW (380 / 400V) 15 kW (415V) 15 kW (440V) 18.5 kW (500V) 18.5 kW (690V) 18.5 kW Dimensions 54.0mm(L) x 108.3mm(W) x 90.0mm(H) Net weight 0.710 kg (1.56 lb) Compliance UL_071301E39231 Terminal Type Screw Terminals

	A12-30-10	A26-30-10	A30-30-10	A40-30-10	A50-30-10	A50-30-11	A63-30-10	A63-30-11
Voltage	110~120 VAC		50 Hz 220/230 V 60 Hz 230/240 V
Current	12A	26A	30A	60A
No. of Main Contacts NO	3
No. of Main Contacts NC	0
No. of Auxiliary Contacts NO	1	1	1	1	1	1	1	1
No. of Auxiliary Contacts NC	0	0	0	0	0	1	0	1
Replacement For			OTF-1200X-4-R-II-UL	KSL-1200X-AC-5S
Power	(220 / 230 / 240V) 9 kW (380 / 400V) 15 kW (415V) 15 kW (440V) 18.5 kW (500V) 18.5 kW (690V) 18.5 kW
Dimensions	54.0mm(L) x 108.3mm(W) x 90.0mm(H)
Net weight	0.710 kg (1.56 lb)
Compliance	UL_071301E39231
Terminal Type	Screw Terminals
