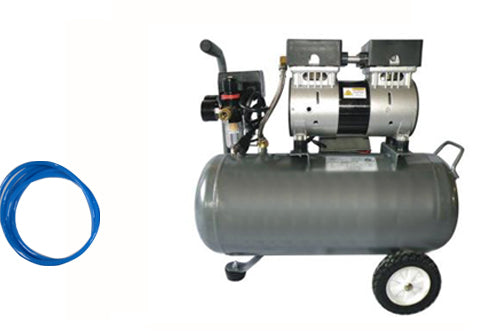

MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - ACPHD-3-LD
  • MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - ACPHD-3-LD
MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - ACPHD-3-LD

MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - ACPHD-3-LD

SKU: acphd-3-ld

Price: RFQ

Specifications

 Ultra Quiet air compressor with only 60 decibels of sound - ideal for minimizing noise in the working environment. Features an oil-free compressor for compatibility in various environment and temperatures settings. Lightweight air tank with wheel kit allows for easy portability and transportation. SPECIFICATIONS Voltage (Select in Option Bar) 110V / 60Hz (for US Domestic Use) 220V / 50Hz (for International Use) Air Delivery 3.8 SCFM @ 40 PSI 2.35 SCFM @ 90 PSI 3.1 CFM @ 40 PSI 2.2 CFM @ 90 PSI Time to fill empty tank to full 130 Seconds 120 Seconds Recover from 90 PSI to 120 PSI 50 Seconds 40 Seconds Current Draw 7.6 Amps 4.5 Amps Compressor Tank Capacity 6.3 Gallons 5.5 Gallons Tank Material Steel Tank Style Hot Dog Air Compressor Type Oil Free Compressor/Air Tool Features Oil-Free Lubrication & Two Tank Pressure Gauges Maximum Pressure 120 PSI Decibel Rating (Outdoor) 60 dBA Horsepower 1 hp Portable Yes Thermal Overload Protector Yes Water Trap Filter (for removing water from air) Yes Universal 1/4" Quick Connector Yes Lubrication Type Oil Free Stage Count Single Stage

Voltage (Select in Option Bar)
  • 110V / 60Hz (for US Domestic Use)
  • 220V / 50Hz (for International Use)
Air Delivery
  • 3.8 SCFM @ 40 PSI
  • 2.35 SCFM @ 90 PSI
  • 3.1 CFM @ 40 PSI
  • 2.2 CFM @ 90 PSI
Time to fill empty tank to full
  • 130 Seconds
  • 120 Seconds
Recover from 90 PSI to 120 PSI
  • 50 Seconds
  • 40 Seconds
Current Draw
  • 7.6 Amps
  • 4.5 Amps
Compressor Tank Capacity
  • 6.3 Gallons
  • 5.5 Gallons
Tank Material
  • Steel
Tank Style
  • Hot Dog
Air Compressor Type
  • Oil Free
Compressor/Air Tool Features
  • Oil-Free Lubrication & Two Tank Pressure Gauges
Maximum Pressure
  • 120 PSI
Decibel Rating (Outdoor)
  • 60 dBA
Horsepower
  • 1 hp
Portable
  • Yes
Thermal Overload Protector
  • Yes
Water Trap Filter (for removing water from air)
  • Yes
Universal 1/4" Quick Connector
  • Yes
Lubrication Type
  • Oil Free
Stage Count
  • Single Stage
