SKU: am-24t-12

Price: RFQ

Description

AM-YLJ-24T-12 is an automatic pellet pressing system operated by a remote PC and a robotic arm. It can press 12 pellets of 0.5" diameter autonomously within 2 hours.


SPECIFICATIONS:

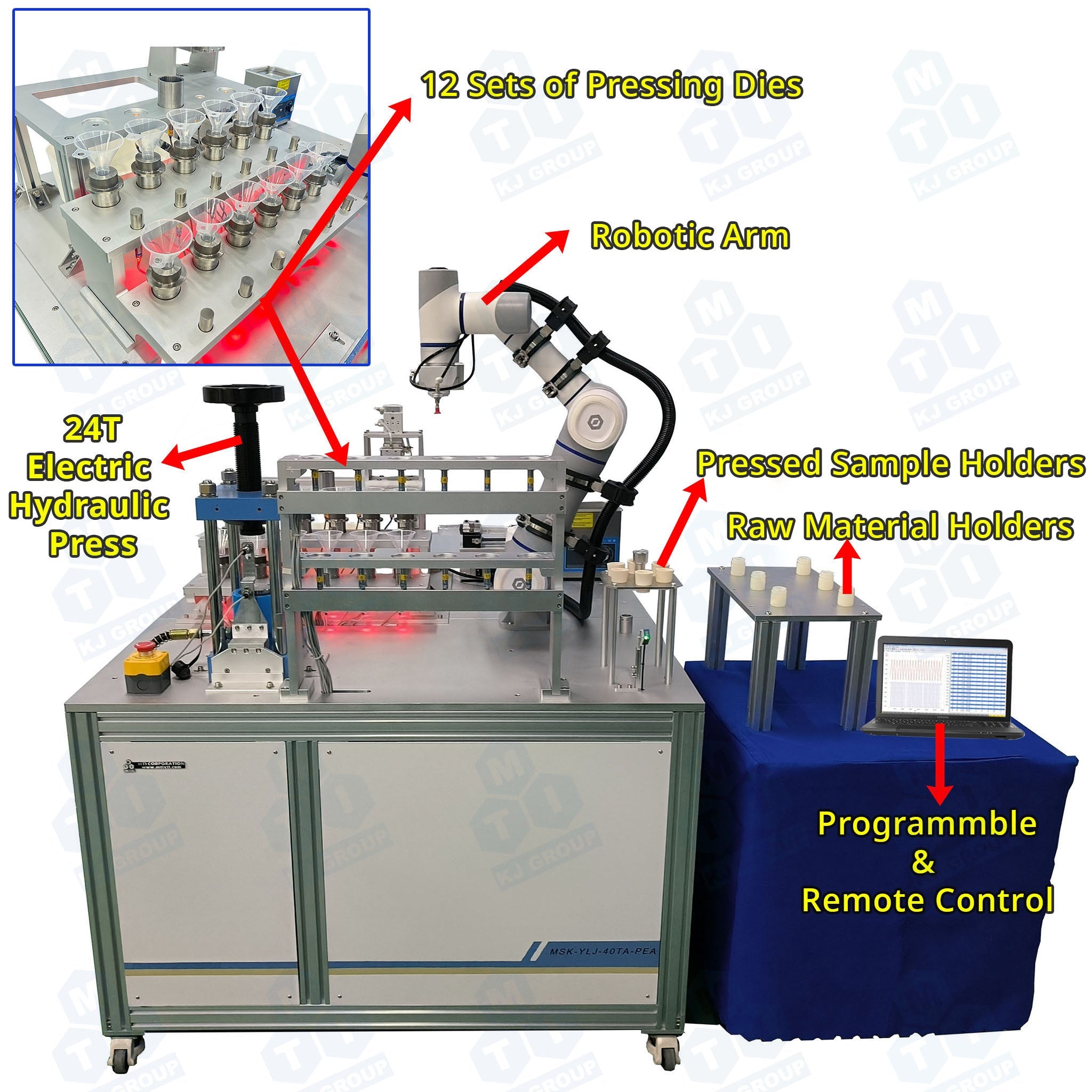

Dry pressing die

Small 10 mm I.D. Dry Pellet Pressing Die For Hi-throughput Pressing - Die-10S
  • Material: Die Steel (HRC60-62)
  • Standard: 12 sets of 10 mm diameter dies are included
  • Max pressure: 3000 MPa
  • Optional at extra cost: 8 mm, 12 mm, or 12.75 mm die

Electric Hydraulic Press
  •  Max. load 24 metric tones
  • Click the picture left to see details of the specification
  • 40 Tone press machine is available upon request

Robotic Arm
  • One robotic arm is built in
  • Click the picture left to see details of the specification
Programmable & Remote Control
  • One brand new laptop with operation software preinstalled is included
Extended Warranty
  • Extended warranty is available up to 5 years at extra cost)
Compliance
  • CE Certified
  • NRTL certification is available upon request at the extra cost
Operation Procedures
  • Program operation procedure in PC - including pressing pressure, holding time, and die cleaning time.
  • Place 12 kinds of pre-mixed and calcined powders in a tray on the table
  • Place 12 pre-cleaned dry-pressing dies into the holder on the table
  • Push the button of " start " on the PC, then
  • The robotic arm will finish the operation, including
    • Feeding power into the die,
    • Pressing powder into the pellet via the electric hydraulic press
    • Push the densified pellet out from the die
    • Put the densified pellet into a crucible
  •  Repeat the above procedure one by one until 12 pellets finish for future sintering
  • Time-consuming: 120 - 130 minutes to finish 12 pellets
