Description

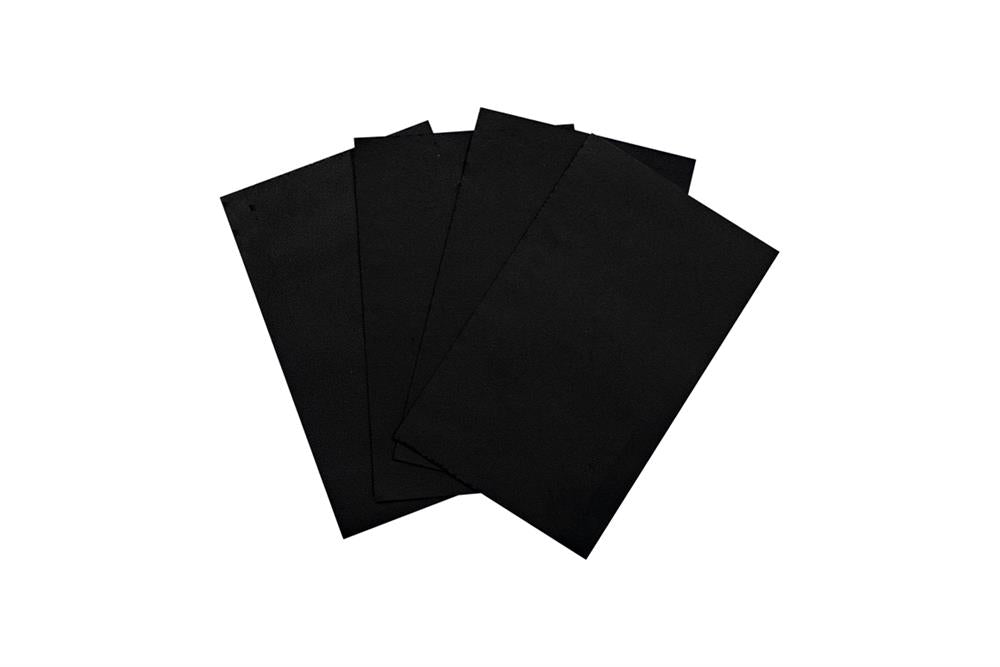

 This electrode sheet is based on Aluminum foil coated by S/C composite. Sulfur-Carbon Composite (S/C) with high conductivity and uniform mixing features can be used as high performance cathode for Li-S battery testing SPECIFICATIONS Material: S/C Composite Current collector (substrate): Aluminum foil (16 microns, area density of 4.22mg/cm2) Coated Area: 80mm L x 50mm W. Double sides area density: 8,2 ± 0.2 mg/cm2 Compaction density: 3.4 ± 0.1 g/cm3 Coating Thickness: ~66 um Total Thickness: ~82 um Active Material Weight: 8.23 g Active Material Proportion in Powder: 94% Specific Capacity: ~1260 mAh/g (0.25C), ~1100 mAh/g (0.5C). [DOL:DME =1:1, 1 mol/L LiTFSI, testing voltage range: 1.5-2.6 V] Note:  The electrode sheet shall be stored in a vacuum box, a vacuum oven or a glove box to avoid degradation. Please click the video below to see how MTI's slitting machine prepares electrode of cylinder batteries Please click the video below to see how MTI's MSK-T-10 disc and ring cutter to cut electrode sheet
