SKU: ca-d12h25-mgi

Price: RFQ

Description

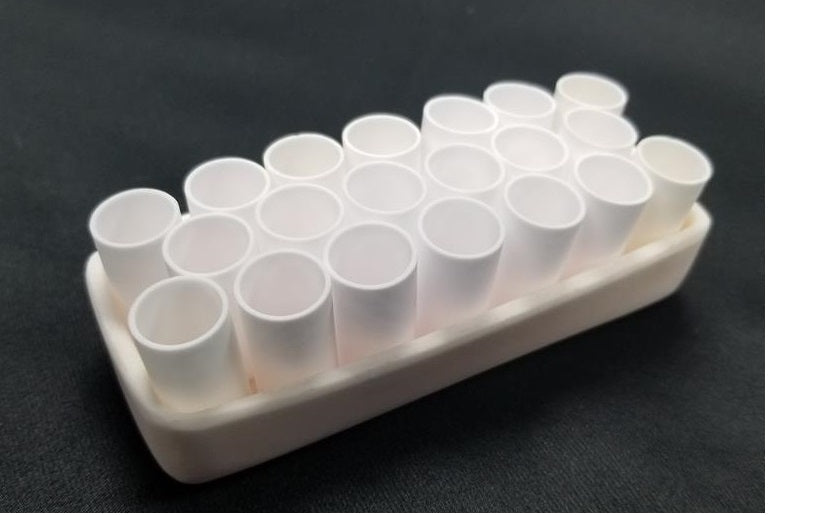

MGI-D12H25 is a set of alumina crucibles with a boat for hi-throughput material processing. It is good for samples in small amount but multiple batches. The assembly is compatible with MTI's Single Zone Furnaces with 3" tube or larger. Size / material combinations are largely flexible with MTI's available crucibles and boats to fit various application requirements

Alumina Boat
  • One (1) high purity Alumina combustion boats for easy organization of the miniature crucibles  CA-L100W40H18
  • Dimension: Length: 100 mm; Width: 43±3 mm; Height: 18 mm
  • Shape: as picture
  • Capacity:  ~40ml
Alumina Crucibles
  • Twenty (20) high purity Alumina cylindrical crucibles with covering lids for small quantities of samples CA-D12H25
  • Dimension: 12.5 mm OD; 10.5 mm ID; 25 mm Height
  • Shape: Cylindrical, as picture shown
  • Capacity: 2.9 ml
  • The anti-slip design in the covering lid to ensure the lid stays in place on the crucible
Materials
  • Purity: Al2O3 > 99.5%;  Fe2O3 < 0.01%
  • 100% impervious
  • Density: > 3.8 g/cm3
  • Max. working temperature: 1750 °C or 3180 °F
  • Note: Never heat and cool faster than 5 °C/min. Otherwise, the boat and/or crucibles may crack.
Assembly Dimensions
  • 100 mm L × 40 mm W × 31mm H

,
