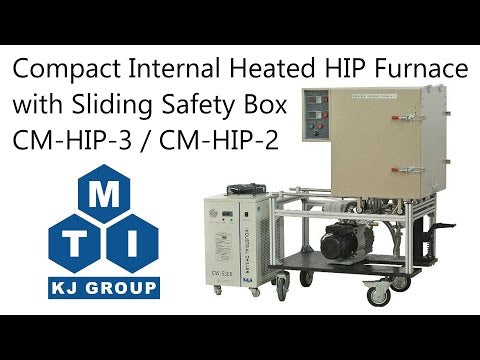

1200°C Max. Hot Isostatic Pressing (HIP) Furnace (80IDx130H mm) up to 20 MPa - CM-HIP-2

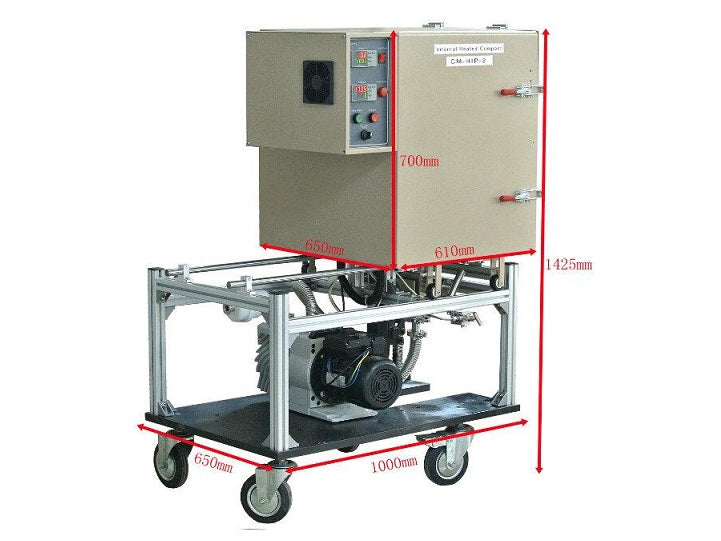

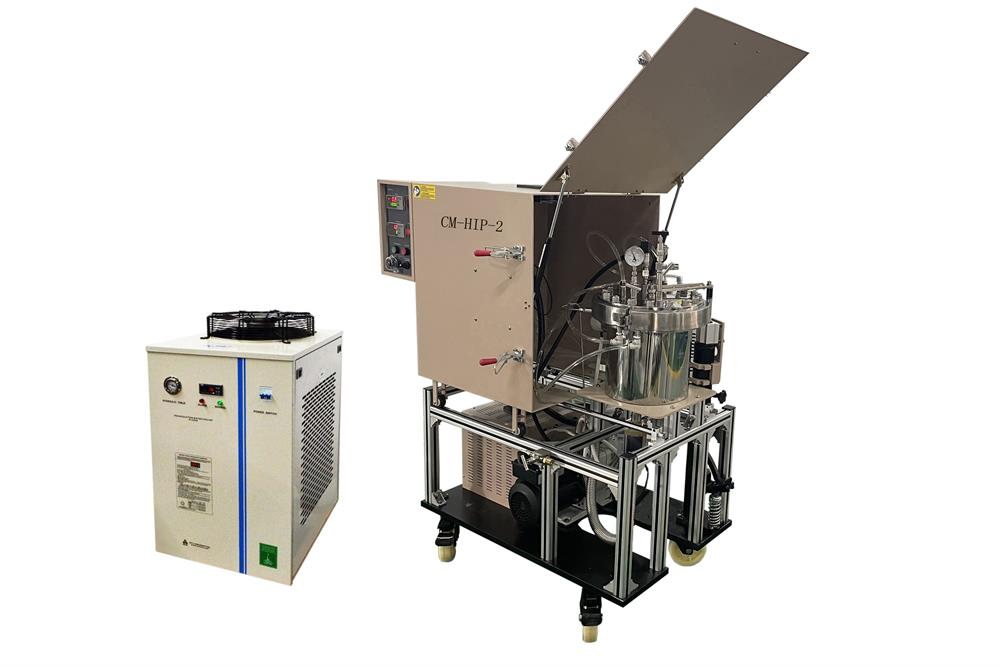

CM-HIP-2 is a compact internal heating isostatic pressing ( HIP ) Furnace with an 80 ID x 130 H mm cylindrical heating chamber. The furnace can operate under the maximum working temperature of 1200°C and a maximum pressure of 20 MPa under inert gas.

Power	208-240 VAC, single phase, 50/60 Hz 4.5 kW
Chamber	Water-cooled SS 304 chamber Sample chamber: Ø80×130H mm 25 Mpa pressure transmitter 20 Mpa digital solenoid pressure relief valve 20 Mpa adjustable mechanical pressure relief valve 1/4" compression gas inlet and outlet High-quality alumina fibrous insulation
Heating Zone	Mo resistance heating wires For inert gases or NiCrAl resistance wire for oxidation gas. 4-layer Mo thermal shield Max. temperature: 1200°C Max. heating rate: 5°C/min 0-1000°C 3°C/min 1000-1200°C Max. sample size: 70 mm Dia x 130 mm H
Temperature Control	30 segment programmable digital temperature controller Over-temperature and thermocouple malfunction protection  Temperature fluctuation: ±1°C C type thermocouple
Pressure Control	Up to 20 Mpa at 1200°C under inert gas compatible for Ar, N2, 5% H2 blended inert gas, and pure oxygen gases Not suggest using H2 gas due to safety concerns One 20 MPa solenoid relief valve is controlled by the pressure transmitter One 20 MPa mechanical pressure relief valve is installed in case of pressure.
Window (Optional	10 mm observation window is available upon request at the extra cost.  The window is made of fused quartz with dimension 20 Dx 20 H ( mm) Warning: one digital camera must be used to observe through the window to ensure the safety
Water chiller	One 58L/min recirculating water chiller is included for cooling flange
Vacuum pump	One mechanical rotary vane pump is included for the vacuum level of 10E-2 torr.  A pneumatic KF25 gate valve is included to isolate the pump from the chamber, which requires 4-8 bar compressed gas ( not included) One air compressor and gas regulator are required but not included.
Compliance	CE Certified NRTL(UL61010) or CSA certification is available upon request at extra cost.
Application Note	This furnace can be modified into a high vacuum furnace up to 10-7 torr at room temperature via a proper turbopump and ion pump. Please contact our engineering team for details Optional: quenching function is available upon request at extra cost.
