1500C Max. Compact Hot Isostatic Pressing (HIP) Furnace (80IDx130H mm) up to 20 Mpa with Sliding Safety Box - CM-HIP-3

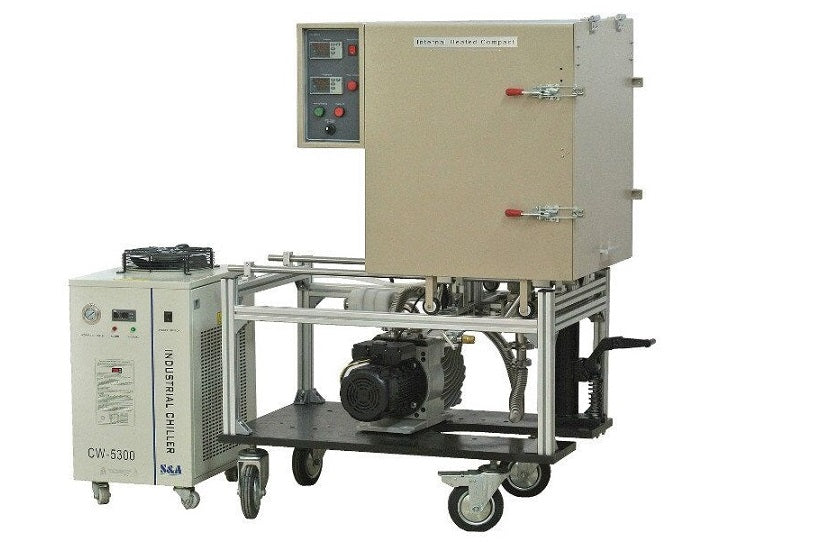

CM-HIP-3 is a compact internal heated isostatic pressing ( HIP ) with 80 ID x 130 H mm effective heating area. The furnace can operate under a maximum working temperature of 1500°C and a maximum pressure of 20 Mpa inert gas.

SPECIFICATIONS

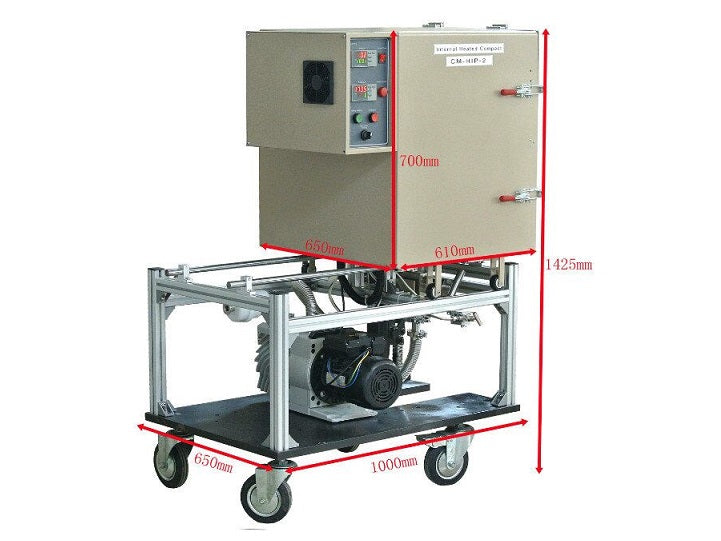

Structure	The furnace chamber is made of stainless steel ( SS304 ) A pressure release valve is built in to avoid pressure beyond max pressure. Steel explosives-proof box is included, the furnace can be slid into the box during operation for safe operation The mobile cart is included for easy moving to a safe location Patented Product: Patented #: 201510417026.0.
Furnace Chamber	SS 304 water-cooled chamber. Inside Dia: 205 m Outside Dia: 271 mm Height: 250 mm Digital high-pressure sensor and gauge are included 1/4" Gas inlet and outlet with high-pressure valves are included (Pic 1 ) The safety pressure valve is installed ( Pic 2) The water chiller is included ( Pic 3 )
Heating Zone	Mo resistance wire heating with multi-reflection plates Inside Diameter 80 mm Length 130 mm Capacity: 0.65 L Max. sample size: 70 mm dia x 130 mm H Max. Working Temperature: 1500ºC max. at 20 MPa Heating Rate: 5 ºC/min
Temperature Control	30 Segment programmable digital temperature controller is included Over-temperature and thermal couple breaking are protected  Temperature accuracy: +/- 1 °C Temperature S-type thermal couple built-in
Vacuum Level	The furnace also can be used as a vacuum furnace with an optional vacuum pump Double-stage mechanical pump can reach 10- 2 torr Turbopump can reach 10-5 torr Click the picture below to choose a vacuum pump
Power	208 - 240VAC, 50-60 Hz 5.5KW Max.
Compliance	CE Certified The furnace is ready to pass NRTL(UL61010) or CSA certification at extra cost.
