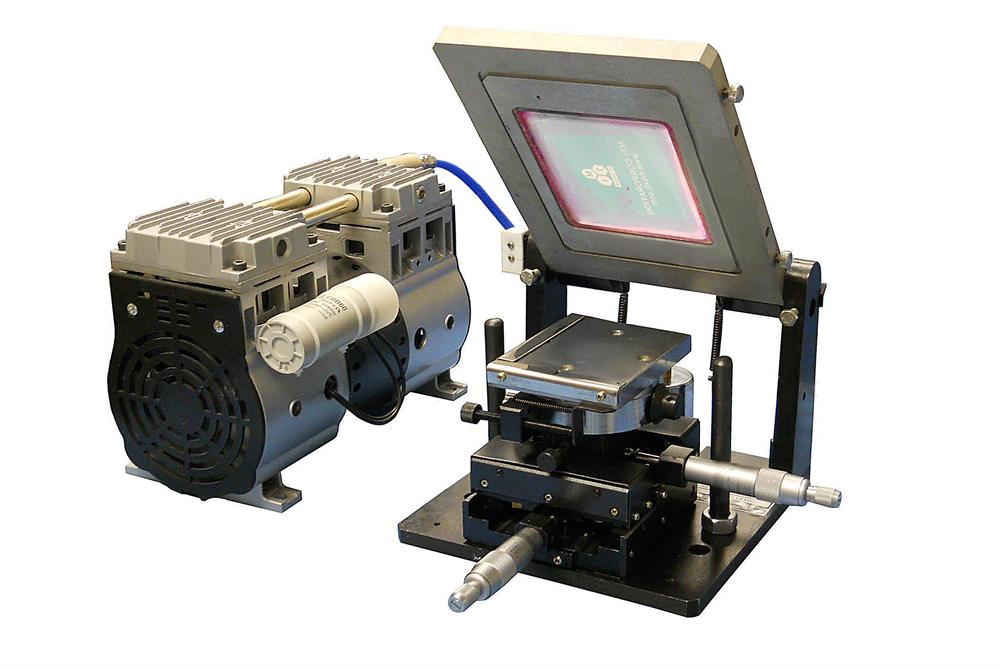

 SPC-1 is a manually operated precision screen printing film & circuit coating unit. The coater has Max. 156 x 106 mm printing area with precision position adjustable at three-dimension and vacuum chunk to load and unload substrate easily.  It is an ideal tool to make Patten film in the research Lab.

Working Voltage
 220V Single Phase, 50/60Hz
For 110V, a 100W Transformer can be purchased separately
Sample holder
  •  The sample is held by a built-in vacuum chuck.
  •  One small oilless Pump is included for immediate use ( click underlined to see specs )

Position adjustment & accuracy
X:   20 mm +/- 0.01 mm
Y:   20 mm +/- 0.01 mm
Z:   3 mm   +/- 0.05 mm
The position can be adjusted by three micrometers.
Screen Frame adjusting
 ±10º adjustable
Substrate Holder
Vacuum chunk, 100mm x 80mm
Frame size & Silk-screen Stencil
  • Top Frame --  inside:156×106mm) *6"x4")
  • Bottom Frame -- Outside:  125×108 (mm), inside: 105×88mm
  • One Scraper is included to apply printable material

Note: MTI does not supply the custom made silk-screen stencils. Customers may source them from other suppliers.

Application Notes
  • You can insert your own screen into the middle frame to quick exchange screen stencil
  • One Scraper is included to apply printable material
  •

Operation Instruction

Dimension
300x 240x 170, mm ( close frame )
300x 240x 330, mm ( open frame )
Net Weight
11 kg
Shipping Dimension & Weight
40" x 22" x 17"; 90 lbs
