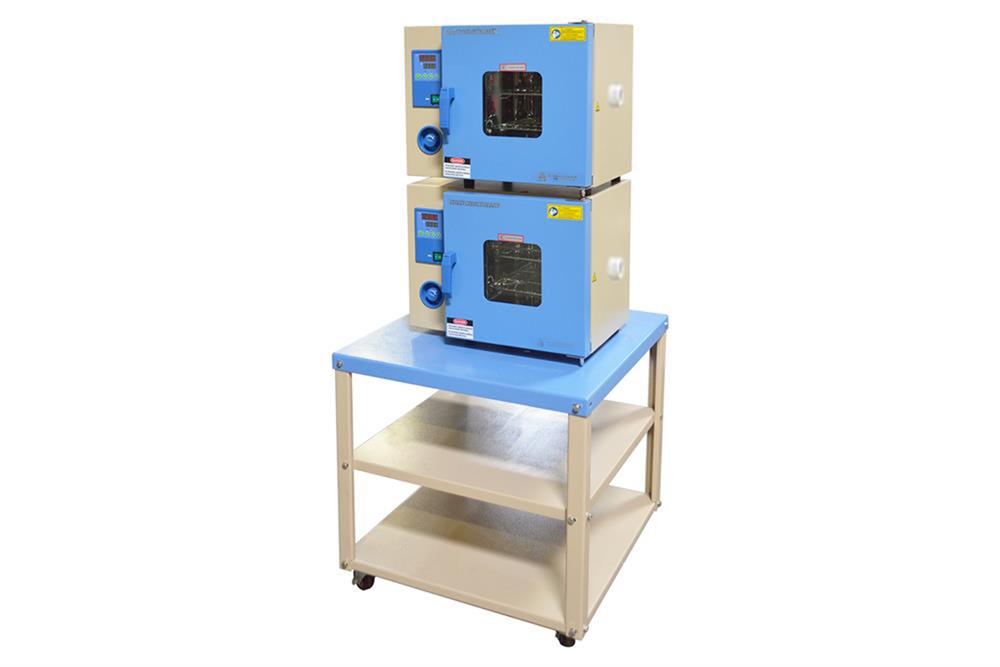

Dual Fire-Proof Chamber (2 x 12L) for Thermal Abuse Test of Battery (0-180C) - DHG-9015TA
  • Dual Fire-Proof Chamber (2 x 12L) for Thermal Abuse Test of Battery (0-180C) - DHG-9015TA
  • Dual Fire-Proof Chamber (2 x 12L) for Thermal Abuse Test of Battery (0-180C) - DHG-9015TA
Dual Fire-Proof Chamber (2 x 12L) for Thermal Abuse Test of Battery (0-180C) - DHG-9015TA

Dual Fire-Proof Chamber (2 x 12L) for Thermal Abuse Test of Battery (0-180C) - DHG-9015TA

SKU: dual-fire-proof-chamber-2-x-12l-for-thermal-abuse-test-of-battery-0-180c-dhg-9015ta

Price: RFQ

Specifications

 TE-DHG-9015-TA is designed for the battery thermal abuse test for IEC62133-8.2.2. The fire-proof dual-chamber has dimension 10" x 10" x 8", which can be heated up to 180°C via an independent temperature controller with +/- 1°C accuracy. SPECIFICATIONS Working Voltage 110VAC, 50/60Hz, single phase 1600W Max. Chamber & Mobile table Interior Material: Polished Stainless Steel sheet Two chambers are stocked together Each chamber size: 240mm(L) x 240mm(W) x 200mm(H) (10"x10"x 8") (11.5 L Capacity) Two adjustable chrome-plated wire shelves are included Window: high-temperature glass with anti-explode film, size: W160mm x H160mm, Feedthrough Holes: One hole (50 mm Dia.) with a block is on the right size for feedthrough electronic wire Multi-holes are available upon request at an extra cost Anti-explosion Port: 30 mm Dia. venting hole is on the back, which will keep hot air continuous flow for venting. One mobile table (600 L x 600 W x 600 H, mm) is included for the placement of analysis equipment and tools Working Temperature RT - 180°C for continuous operation Temperature Controller Single point setting temperature controller with +/- 1°C accuracy Build-in over-temperature, thermocouple failure protection alarm Build-in over-temperature, thermocouple failure protection alarm Temperature uniformity inside the chamber: +/- 2°C Battery Analyzer (optional at an extra cost) Recommended Battery Capacity for testing 5Ah, 20Wh Compliance CE Certified NRTL and CSA certified

Working Voltage
  • 110VAC, 50/60Hz, single phase
  • 1600W Max.
Chamber & Mobile table
  • Interior Material: Polished Stainless Steel sheet
  • Two chambers are stocked together

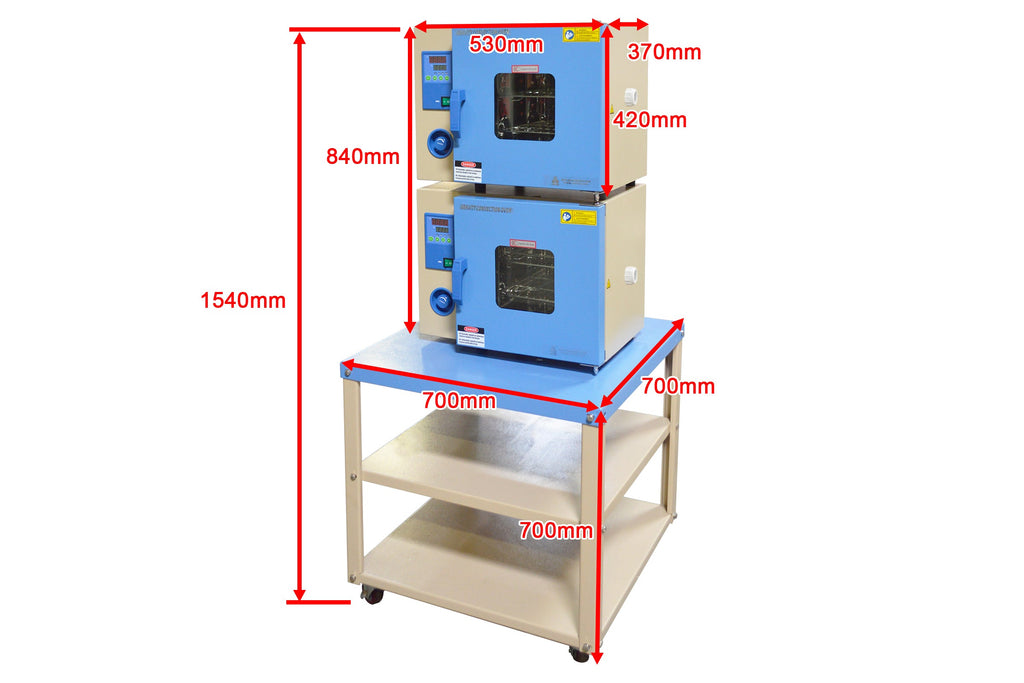

  • Each chamber size:
    • 240mm(L) x 240mm(W) x 200mm(H) (10"x10"x 8") (11.5 L Capacity)
  • Two adjustable chrome-plated wire shelves are included
  • Window:
    • high-temperature glass with anti-explode film, size: W160mm x H160mm,
  • Feedthrough Holes:
    • One hole (50 mm Dia.) with a block is on the right size for feedthrough electronic wire
    • Multi-holes are available upon request at an extra cost
  • Anti-explosion Port:
    • 30 mm Dia. venting hole is on the back, which will keep hot air continuous flow for venting.
  • One mobile table (600 L x 600 W x 600 H, mm) is included for the placement of analysis equipment and tools
Working Temperature
  • RT - 180°C for continuous operation
Temperature Controller
  • Single point setting temperature controller with +/- 1°C accuracy
  • Build-in over-temperature, thermocouple failure protection alarm
  • Build-in over-temperature, thermocouple failure protection alarm
  • Temperature uniformity inside the chamber: +/- 2°C
Battery Analyzer
(optional at an extra cost)
Recommended Battery Capacity for testing
  • 5Ah, 20Wh
Compliance
  • CE Certified
  • NRTL and CSA certified
