Description

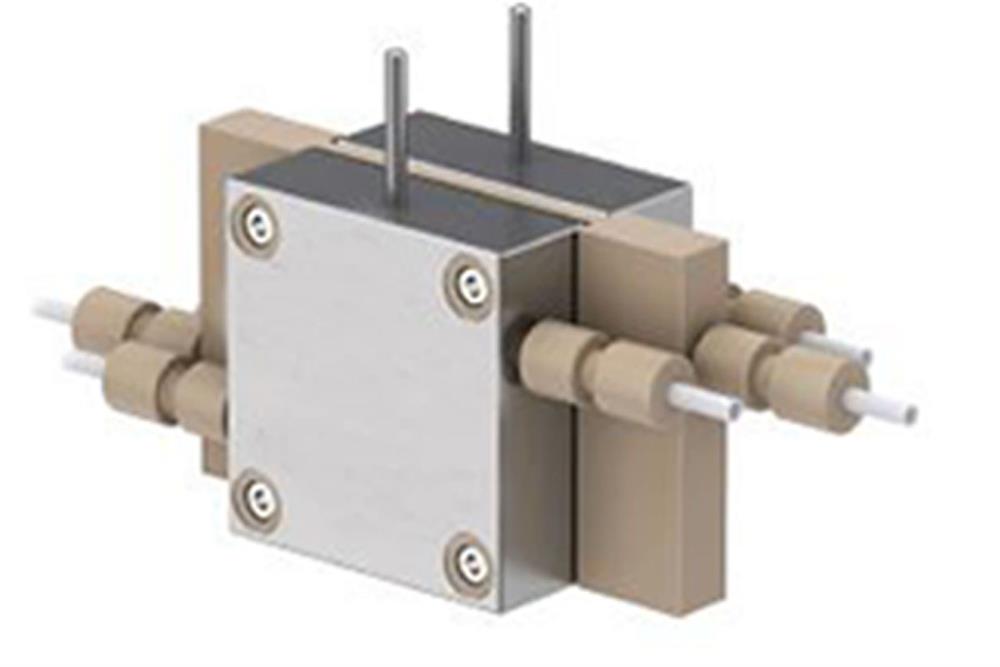

The E-SSE is a split electrochemical cell with all solid-state electrolyte for water splitting and CO2 reduction research.

SPECIFICATIONS:

Structural Features

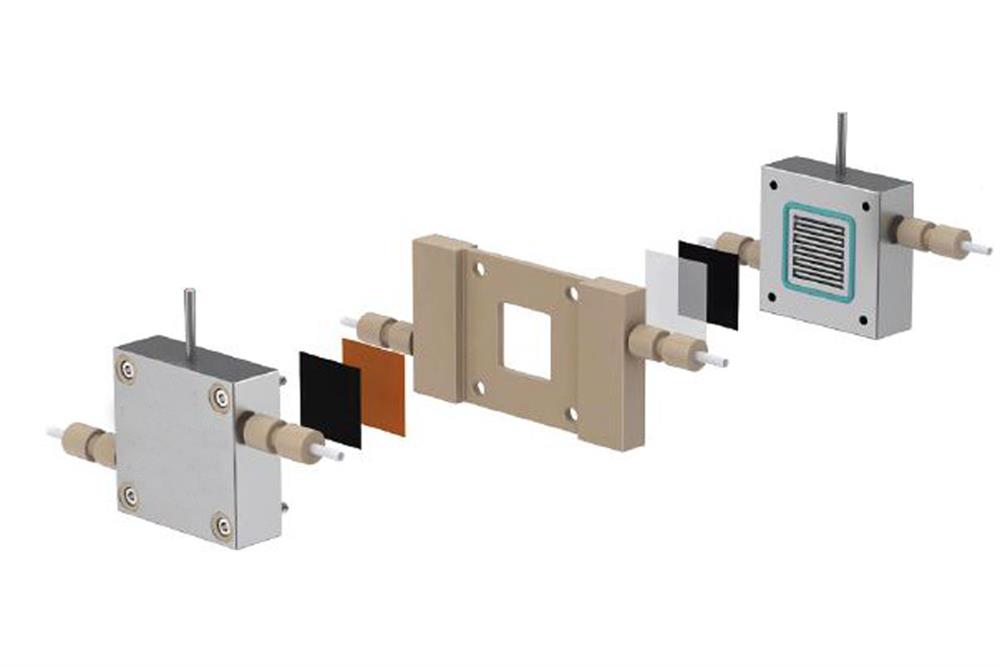

  • The whole electrochemical cell was constructed with a sandwich structure to build a solid-gas interface and avoid the introduction of cation/anion for producing high purity chemicals.
  • The bipolar plates were made of high purity titanium (Ti) metal with serpentine shape channels to increase the reactant/product concentration for high current density operation.
  • Anion-exchange membrane (Dioxide Material), anode GDE, and cation-exchange membrane (Nation 115) and cathode GDE were placed inside the split electrolyze. Solid-state electrolyte is the key to place in the middle part.
  • Double O-rings were presented to provide high sealing quality.
Channel Area 2 cm * 2 cm
Three-Electrode System (Optional) If customers want to study either the anode or cathode, a three-electrode system is available upon request.


Snakelike Channels (Optional) If customers are looking for snakelike channels in middle module, we have the option as follow:

Observation Window

(Optional)

If customers need use this cell for in-situ electrochemical study, then the customized electrolyzer with observation window is available:
Valves & Fittings 1/4" O.D Tube Fittings for inlet and outlet ports
