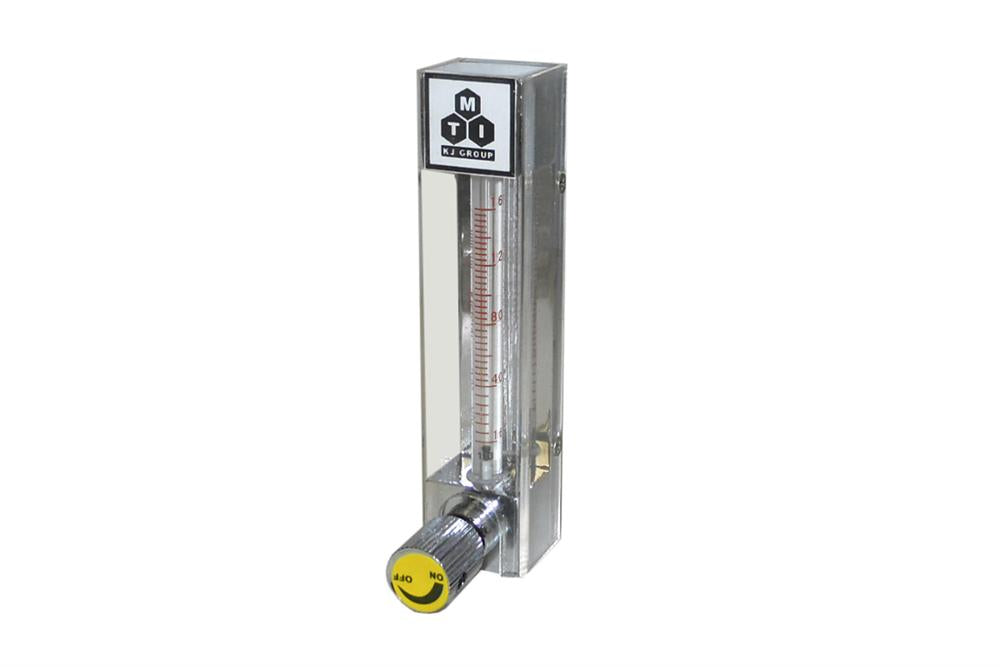

Compact Direct Read Flow Meter, 800 - 8000 cc/min. with two male fittings-FM-8000CC
  • Compact Direct Read Flow Meter, 800 - 8000 cc/min. with two male fittings-FM-8000CC
Compact Direct Read Flow Meter, 800 - 8000 cc/min. with two male fittings-FM-8000CC

Compact Direct Read Flow Meter, 800 - 8000 cc/min. with two male fittings-FM-8000CC

SKU: eq-fm-8000cc

Price: RFQ

Description

 Molded of tough polycarbonate plastic. Used to Indicate & Manually control Air or Gas flow 800 - 8000 cc/min . The compact flowmeters are ideal for MTI oven KSL-1700X-H2. Easy to read design - The direct reading scales eliminate troublesome conversions. The scales are brushed aluminum, coated with epoxy and the graduations are on both sides of the indicating tube. Special integral flow guides stabilize the float throughout the range to keep it from hunting or wandering in the bore. The float is highly visible against a white background. Construction assures accuracy - All flow meter bodies are injection molded of tough, clear, shatter-proof polycarbonate plastic around a precision tapered pin. The critical internal diameter of the variable orifice tube is held within .0004". The result is accurate and repeatable readings. The backbone into which pipe thread inserts are welded to absorb piping torque. Precision metering valves of stainless steel valves permit precise flow adjustments.  Accuracy is within 2.5% of full-scale reading Please click the picture for the details of flow meter Length: 72mm
