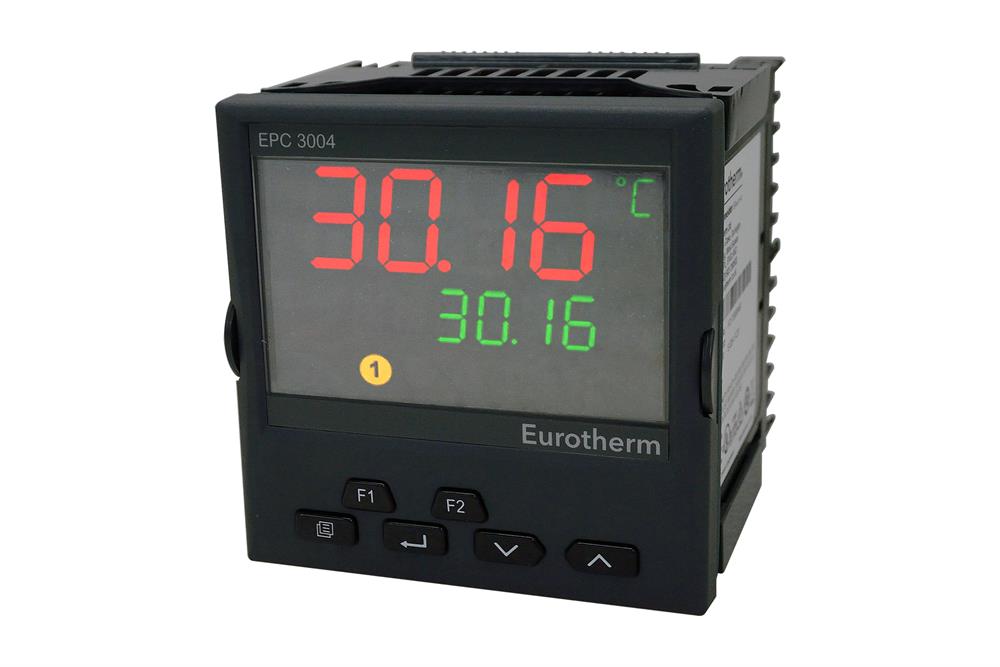

Eurotherm 3000 Programmable Temperature Controller for MTI's 1800C Furnaces - FA-EURO3000-D1

SKU: fa-euro3000-d1

Price: RFQ

Specifications

This is a UL Listed advanced process controller from Eurotherm® provide precision control of temperature and a host of other process variables together with an abundance of advanced options making it the most adaptable product in its class. It is suitable for using on the Furnaces (1800C) with SCR & SiC/MoSi2 Heating Elements. SPECIFICATIONS Operating Voltage: 85-264VAC ¼ DIN instrument 1 programs of 24 segments Output: 4-20ma Alarm Relay: Form 'A' and Form ‘C’ built-in Digital Communications: RS485 Temperature Accuracy: ± 0.1ºC Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set. User-friendly Computer control interface can easily program heating steps. Each program can have Max. 24 Segment PID automatic control Dimension 3004 Model 3008 Model 96mm L x 96mm H x 100mm D 50mm L x 96mm H x 100mm D Instructional Video Basic Operation For more detailed product specs, please click underline to view - Eurotherm 3000 ATTENTION: Due to the complexity of the hardware installation, we strongly suggest you purchase this PC control kit along with the furnace and our engineers will have the software & hardware pre-installed for you. Please note that this PC control kit is Replacement Part for Existing Customers individually.

Operating Voltage: 85-264VAC
¼ DIN instrument
1 programs of 24 segments
Output: 4-20ma
Alarm Relay: Form 'A' and Form ‘C’ built-in
Digital Communications: RS485
Temperature Accuracy: ± 0.1ºC
Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
