Eurotherm 3000 Programmable Temperature Controller for MTI's 1200- 1500°C Furnaces -FA-EURO3000-L2
  • Eurotherm 3000 Programmable Temperature Controller for MTI's 1200- 1500°C Furnaces -FA-EURO3000-L2
  • Eurotherm 3000 Programmable Temperature Controller for MTI's 1200- 1500°C Furnaces -FA-EURO3000-L2
  • Eurotherm 3000 Programmable Temperature Controller for MTI's 1200- 1500°C Furnaces -FA-EURO3000-L2
Eurotherm 3000 Programmable Temperature Controller for MTI's 1200- 1500°C Furnaces -FA-EURO3000-L2

Eurotherm 3000 Programmable Temperature Controller for MTI's 1200- 1500°C Furnaces -FA-EURO3000-L2

SKU: fa-euro3000-l2

Price: RFQ

Specifications

 This is a UL Listed advanced process controller from Eurotherm® provide precision control of temperature and a host of other process variables together with an abundance of advanced options making it the most adaptable product in its class. It is suitable for using on the Furnaces (1200C and higher) with SCR & SiC/MoSi2 Heating Elements. SPECIFICATIONS Operating Voltage: 85-264VAC 1 heating channel 1 programs of 24 segments (Max. Heating Time: 500 hours for each segment. Total: 12,000 hours) 1 DC Output: DC (0-5, 0-10VDC Alarm Relay: Form 'A' and Form ‘C’ built-in Digital Communications: RS485 Temperature Accuracy: ± 0.1ºC Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set. User-friendly Computer control interface can easily program heating steps. Each program can have Max. 24 Segment PID automatic control Dimension (3004 Model ) 96mm L x 96mm H x 100mm D Dimension (3008 Model) 50mm L x 96mm H x 100mm D For more detailed product specs, please click underline to view - Eurotherm 3000 NOTE: ATTENTION: Due to the complexity of the hardware installation, we strongly suggest you purchase this PC control kit along with the furnace and our engineers will have the software & hardware pre-installed for you. Please note that this PC control kit is not for sell individually.

  • Operating Voltage: 85-264VAC
  • 1 heating channel
  • 1 programs of 24 segments (Max. Heating Time: 500 hours for each segment. Total: 12,000 hours)
  • 1 DC Output: DC (0-5, 0-10VDC
  • Alarm Relay: Form 'A' and Form ‘C’ built-in
  • Digital Communications: RS485
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
  • User-friendly Computer control interface can easily program heating steps.
  • Each program can have Max. 24 Segment PID automatic control

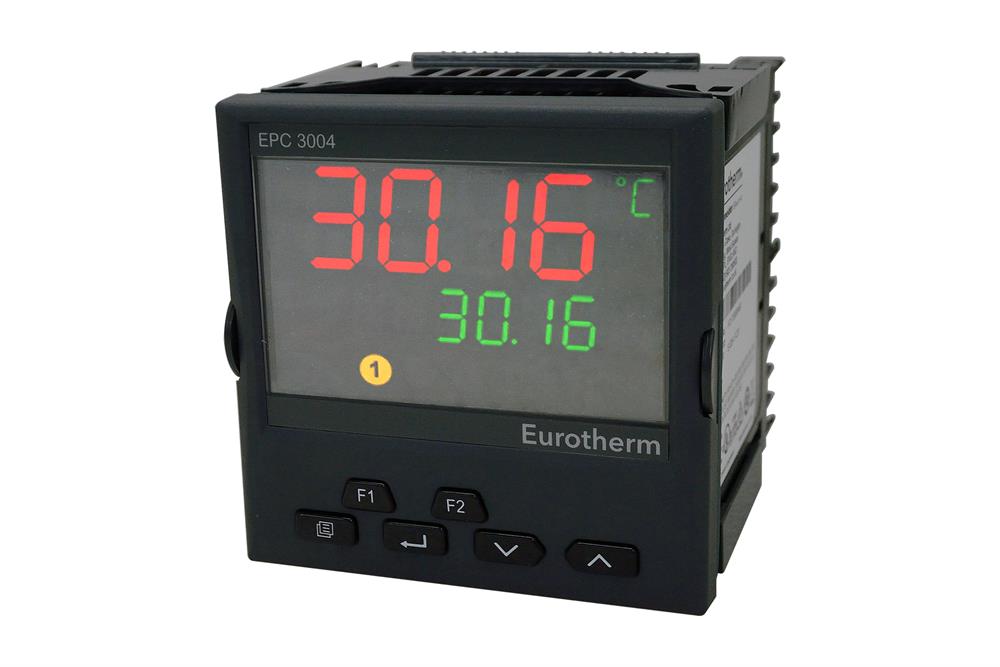

Dimension (3004 Model )


96mm L x 96mm H x 100mm D

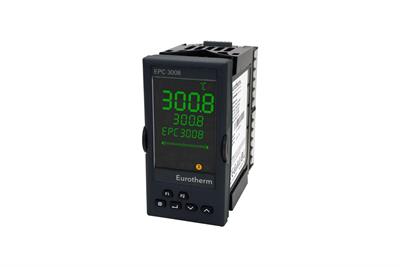

Dimension (3008 Model)

50mm L x 96mm H x 100mm D
