Vacuum Sealing Assembly for 84 mm dia Tube Furnace with Valve / Vacuum Meter - FL-84

Vacuum Sealing Assembly for 84 mm dia Tube Furnace with Valve / Vacuum Meter - FL-84

SKU: fl-84

Price: RFQ

Description

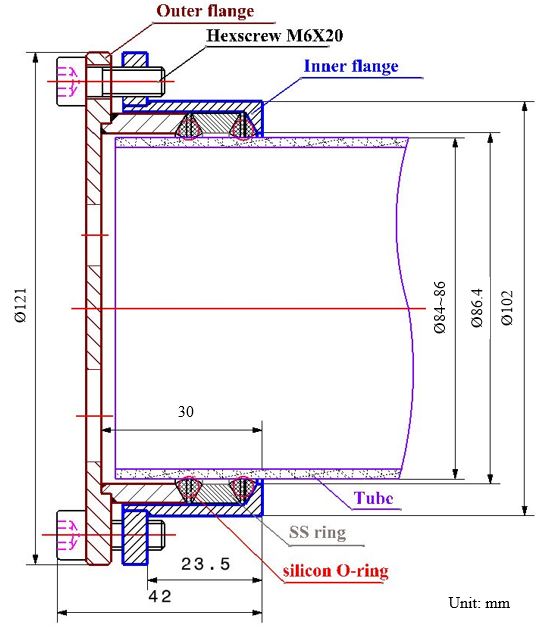

This is a pair of smart sealing assembly for tube vacuum furnace to tighten both ends of OD 84 mm tube without any welding and gluing. Made of Stainless Steel with double high-temperature silicon O-rings on each flange. On one end the flange has a vacuum meter with valve attached, and on the other end has the only valve. Seal tube by tightening screws on the flange without any welding and glue. 1/4" hose connector in the both of ends. 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose. Excellent for any type of tubing: ceramic, glass, quartz and steel pipe. The assembly kit will seal 84 - 86 mm diameter of MTI Alumina and Mullite tube as related product below. um level:  10-5 torr by the molecular pump and 10-2 torr by a mechanical pump Package included One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings  ( 300 o C Max.), and six screws Vacuum level 10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and 10-6 torr by hi-speed turbopump Warning Must put a refractory tube block in front of flange (see picture below) to avoid heat radiation melt silicone O-ring. You order a ceramic block in related products. Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns. How to seal a quartz tube using the assembly, please follow the photos below: Optional Parts Ple ase click here to order digital vacuum gauge for precision vacuum control up to 10 -4 torr You can choose various end of fitting as options  ( click here to order separately ) Please click the picture above to choose other size flange from 1" to 11"

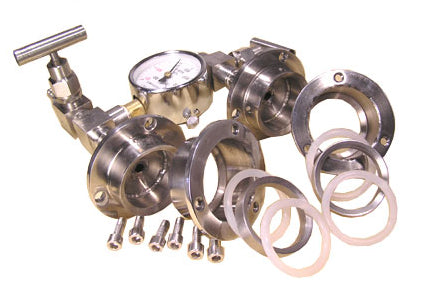

Package included  One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings  ( 300oC Max.), and six screws
Vacuum level
Warning
  • Must put a refractory tube block in front of flange (see picture below) to avoid heat radiation melt silicone O-ring. You order a ceramic block in related products.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
,

,

Please click here to order digital vacuum gauge for precision vacuum control up to 10-4 torr


Sealing flanges for 80mm O.D tube

Please click the picture above to choose other size flange from 1" to 11"
