SKU: fl100-7ftr

Price: RFQ

Description

 This is a single-side flange for a 100mm O.D. tube with seven 1/4" tube fittings. It provides multiple feedthroughs for various gasses delivery and thermocouple insert.

Features
  • SS304 Stainless steel flange with double high-temperature silicon O-rings
  • Hex screw tube sealing with no welding or gluing needed.
  • Ideal for any type of tubing: ceramic, glass, quartz, and steel pipes.
  • Multiple feed-throughs for various gasses delivery and thermocouple insert.

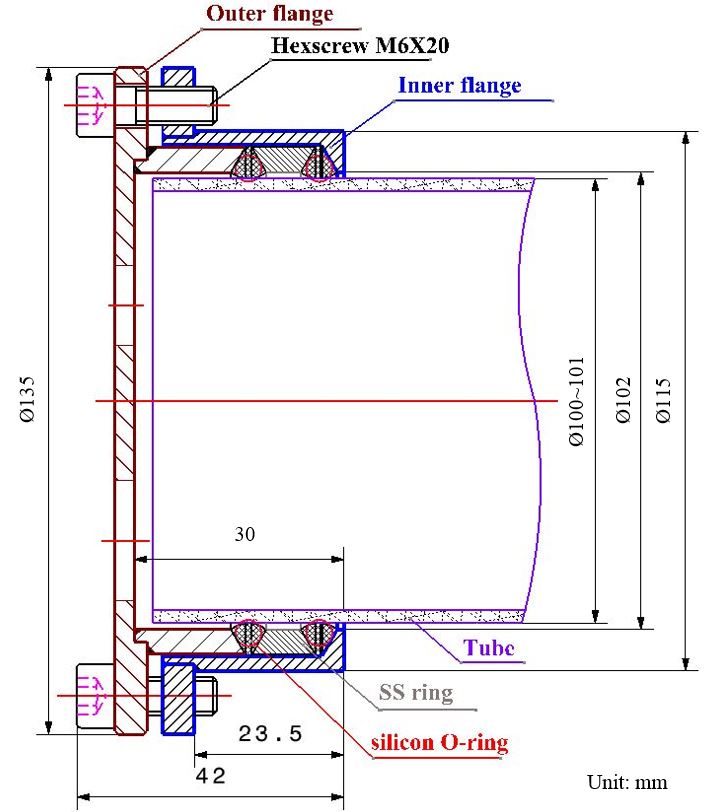

Structure
  • Flange for 100mm O.D. tube
  • Seven 1/4" feedthrough with ferrule tube fitting (The following pictures show an 80mm version, which has six feedthroughs)






Feedthrough Configurations
  • Please select the configuration from the options bar.

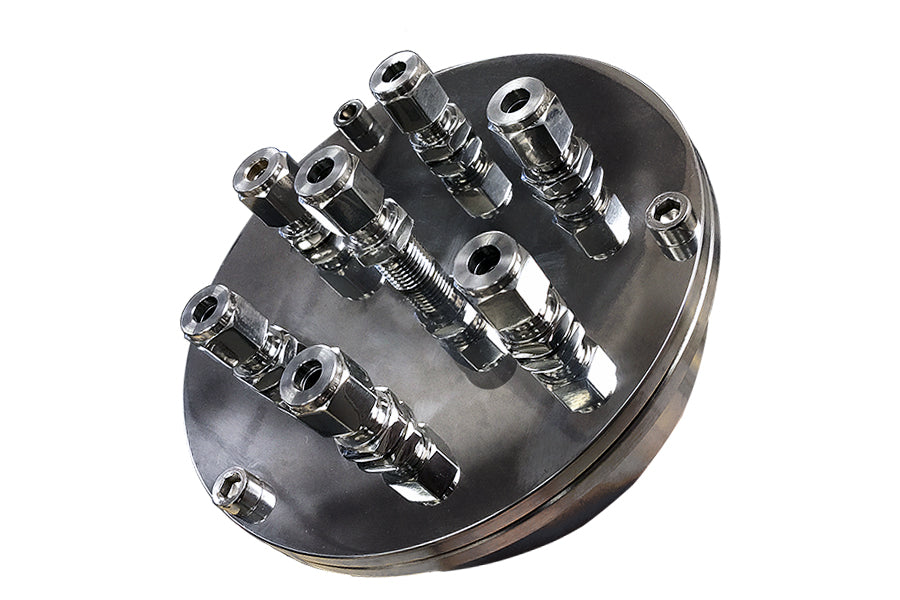

    • 6 feedthroughs in the outside circle, 1 in the center. (Pic. 1)

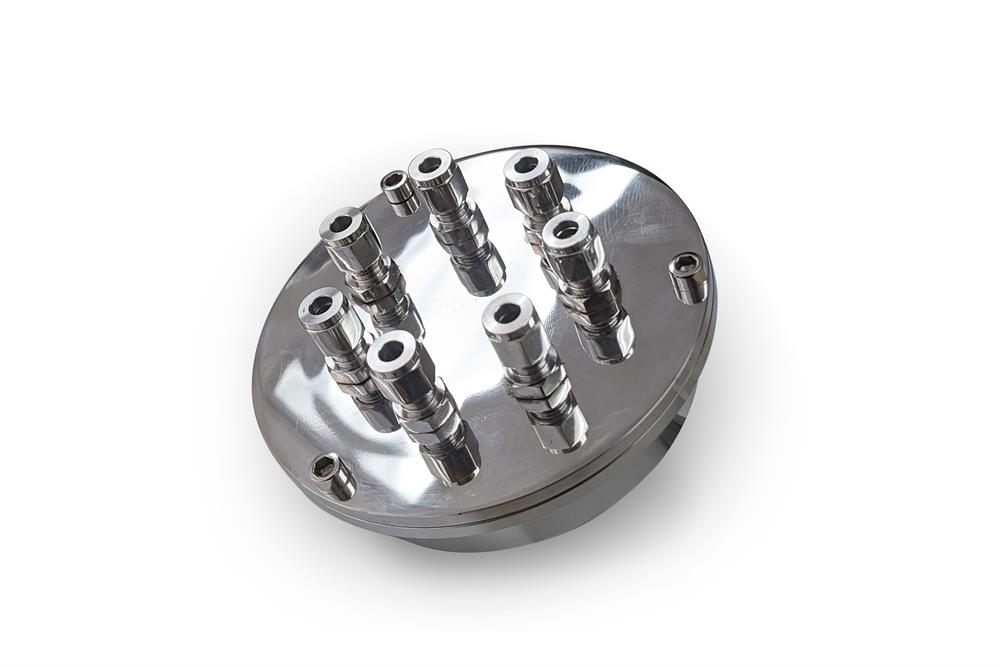

    • All 7 feedthroughs in the outside circle. (Pic. 2)

 Optional
  • You may order a right-side single flange by clicking the picture below
Vacuum Level 10-4 torr (molecular pump)and 10-2 torr(mechanical pump)
Warning
  • A refractory tube block is required in front of the flange to avoid silicone O-ring melting.
  • Please consider purchasing our ceramic tube block.
  • Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Related Products
,
Part Number Part Name Qty
1 Inner and Outer Flange 1 pair
2 Feedthrough Nut 7
3 Ferrule Fitting 7 pairs
4 Centering Ring 1
5 Hex sealing screws 3
6 High-Temperature Silicone O-ring (White) 2
