Gas-Diffusion Photoelectrochemical (PEC) Flow Cell for CO2/N2 Reduction- GDE-PEC
  • Gas-Diffusion Photoelectrochemical (PEC) Flow Cell for CO2/N2 Reduction- GDE-PEC
  • Gas-Diffusion Photoelectrochemical (PEC) Flow Cell for CO2/N2 Reduction- GDE-PEC
Gas-Diffusion Photoelectrochemical (PEC) Flow Cell for CO2/N2 Reduction- GDE-PEC

Gas-Diffusion Photoelectrochemical (PEC) Flow Cell for CO2/N2 Reduction- GDE-PEC

SKU: gde-pec

Price: RFQ

Description

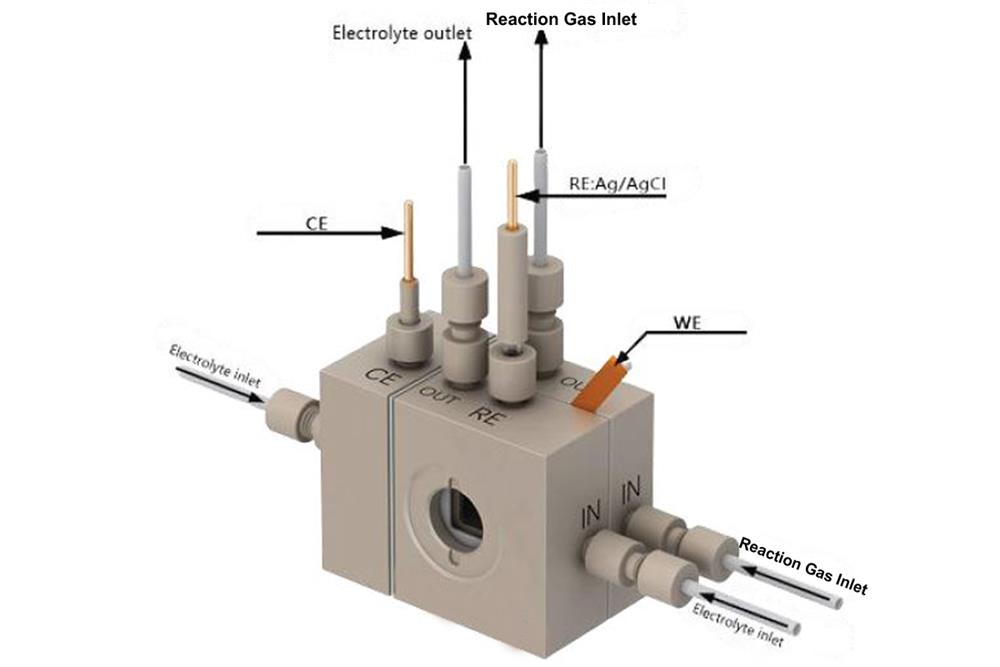

 The GDE-PEC is a split photoelectrochemical flow cell with gas-diffusion photoelectrodes for CO2/N2 reduction research. SPECIFICATIONS: Structural Features The whole photoelectrochemical cell was constructed with a photoelectrode flow chamber with optical window, gas chamber, and a counter flow chamber. A gas-diffusion-type photoelectrode can be tested for CO2/N2 reduction, which addresses the light blocking issue of photoelectrode in a regular PEC system. Counter and reference electrode can be Pt and Ag/AgCl (included). Flow cell chamber is able to collect gas and liquid products from PEC reduction. O-rings were presented to provide high sealing quality. Light Illumination Area 3.15 cm2 Valves & Fittings 1/4" O.D Tube Fittings for inlet and outlet ports

Structural Features

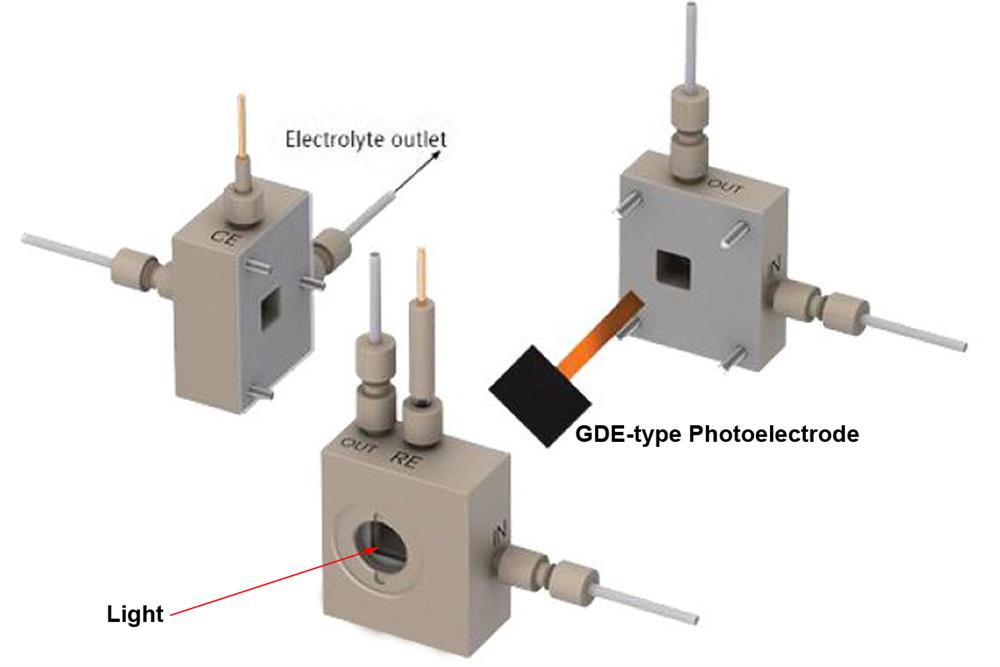

  • The whole photoelectrochemical cell was constructed with a photoelectrode flow chamber with optical window, gas chamber, and a counter flow chamber.
  • A gas-diffusion-type photoelectrode can be tested for CO2/N2 reduction, which addresses the light blocking issue of photoelectrode in a regular PEC system. Counter and reference electrode can be Pt and Ag/AgCl (included).
  • Flow cell chamber is able to collect gas and liquid products from PEC reduction.
  • O-rings were presented to provide high sealing quality.
Light Illumination Area 3.15 cm2
Valves & Fittings 1/4" O.D Tube Fittings for inlet and outlet ports
