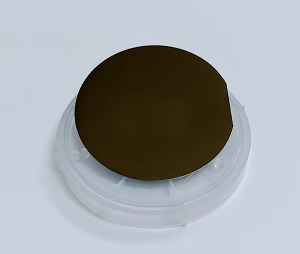

Ge Wafer (100) Undoped, 2" dia x 0.5 mm, resistivities: >50 ohm-cm, 2SP - GEUa50D05C2R50US

Specification

• Growing Method: CZ
• Orientation: (100) +/_0.5 Deg.
• Wafer Size: 2" dia x  500 microns
• Surface Polishing: Two sides epi polished
• Surface roughness: RMS or Ra:~ 10 A( by AFM)
• Doping: Undoped
• Conductor type: N-type
• Resistivity: >50 Ohms/cm (If you would like to measure the resistivity accurately, please order our Portable 4 Probe Resistivity Testing Instrument.)
• Package: under 1000 class clean room

Typical Properties:

• Structure: Cubic, a = 5.6754 A
• Density: 5.323 g/cm3 at room temperature
• Melting Point: 937.4 ^oC
• Thermal Conductivity: 640
