Description
| Property | US Valve | Metric Value |
| Particle Size | 0.008 in | 0.02032 cm |
| Density | 0.063lb/in3 | 1.74 g/cm3 |
| Flexural Strength | 3200 psi | 22.1 mpa |
| Compressive Strength | 6200 psi | 42.7 mpa |
| Resistivity | 4.0 ohm/in x 10-4 | 4.0 ohm/ in x 10-4 |
| Thermal Conductivity | 110 BTU/(h.ft2F/ft) | 190 W/ (m2K/m) |
| CTE | 1.3 in/ inoF x 10-6 | 2.4 Microns/ m oC |
| Temperature (Air) | 750 oF | 399 oC |
| Temperature (Inert) | 5000 oF | 2760 oC |
| Ash | 0.1% | 0.1% |
| SKU | CGM7267 |
| Capacity | ~35 mL |
| Dimension | 135mm x 40mm x 30mm (L x W x H) |

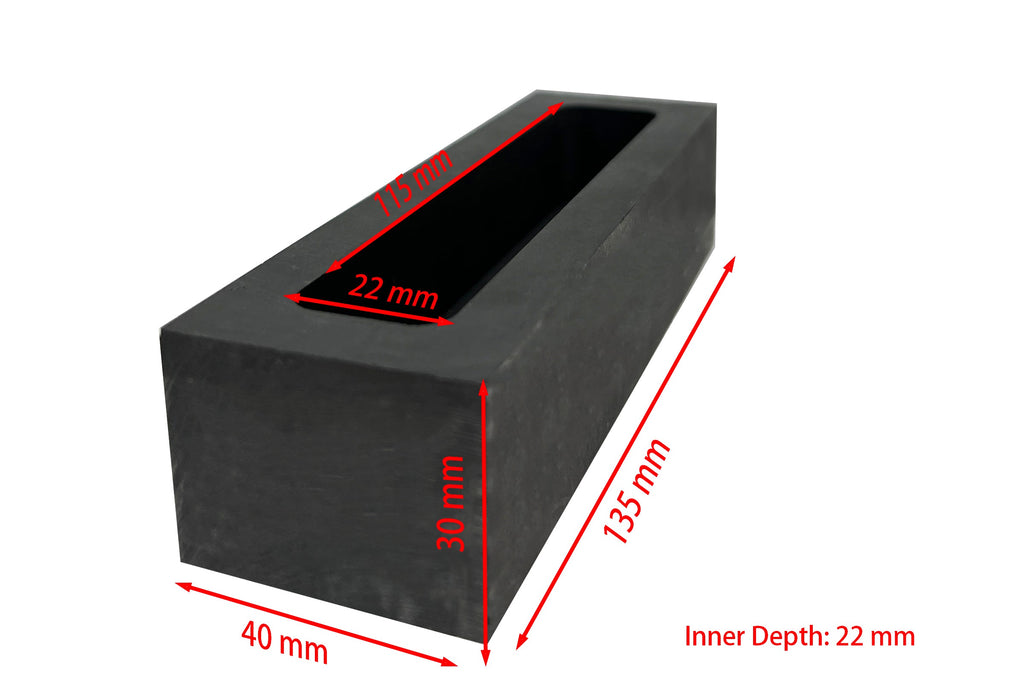

| SKU | CGM13540 |
| Capacity | ~55 mL |
| Dimension | 135mm x 40mm x 30mm (L x W x H) |
