1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA
  • 1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA
  • 1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA
  • 1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA
  • 1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA
  • 1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA
1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA

1000°C Max. Compact Tube Furnace (20mm OD) with Precision TGA Function - GSL-1000-TGA

SKU: gsl-1000-tga

Price: RFQ

Specifications

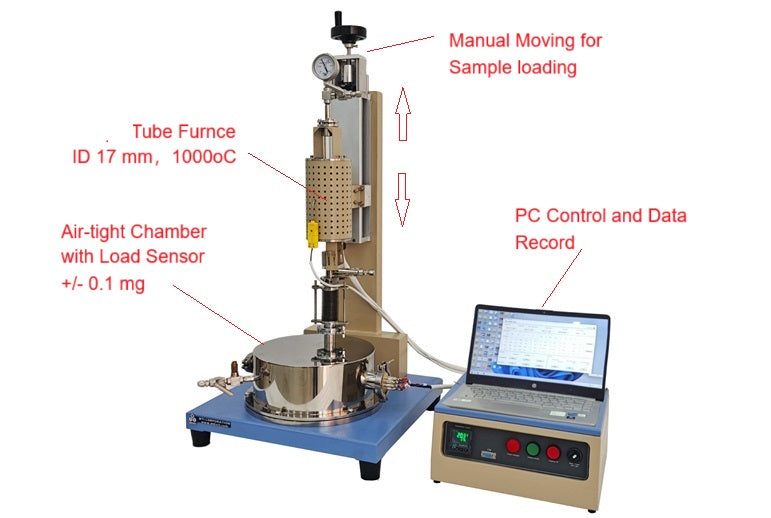

 GSL-1000-TGA is a mini tube furnace with a precision TGA (thermal gravimetric analysis) function. It is a cost-effective and space-saving tool to analyze the phase transition of various materials from 100°C to 1000°C under a controlled atmosphere to find phase transition. It can also be used for small sample annealing or sintering. SPECIFICATIONS Furnace Structure Mini Tube furnace with quartz tube of OD 20 mm x ID 17 mm High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. 55 mm heating zone and 15 mm constant temperature zone within +/- 1ºC Vacuum-sealed weight sensor with 0.001 g accuracy Precision temperature controller with 0.1ºC accuracy Vacuum port and gas inlet & outlet ports are built-in Power 110VAC +/- 10%, single phase, 50/60hz 500W Max 220VAC is available upon request Temperature Controllers Eurotherm -3000 Programmable temperature controller is built in +/- 0.1 ºC temperature accuracy. Max. heating rate: 20ºC/month One K-type thermocouple. PC control software and interface module are included to show and record the curve both temperature and weight change One brand new laptop computer is included with restored software Electronic Balance A precision electronic balance is located in the bottom of the heating chamber with a 0.001 g resolution The alumina crucible is set on the balance via an alumina rod Max. weighting： 100 g Sample amount: 1 g minimum; 10 g maximum. Force Sensor output data will connect to the laptop to show the weight change curve with the temperature RS485 port and operation software is included Crucibles Two 1.75 ml alumina crucibles are included. Please click Pic. left to order more The customized crucible is available upon request Vacuum pump (optional) The TGA can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pump（Pic. 2) Please click the picture below to order the pump and gas delivery system (Pic 3）separately: Compliance CE Certified NRTL or CSA certification is available upon request at extra cost.

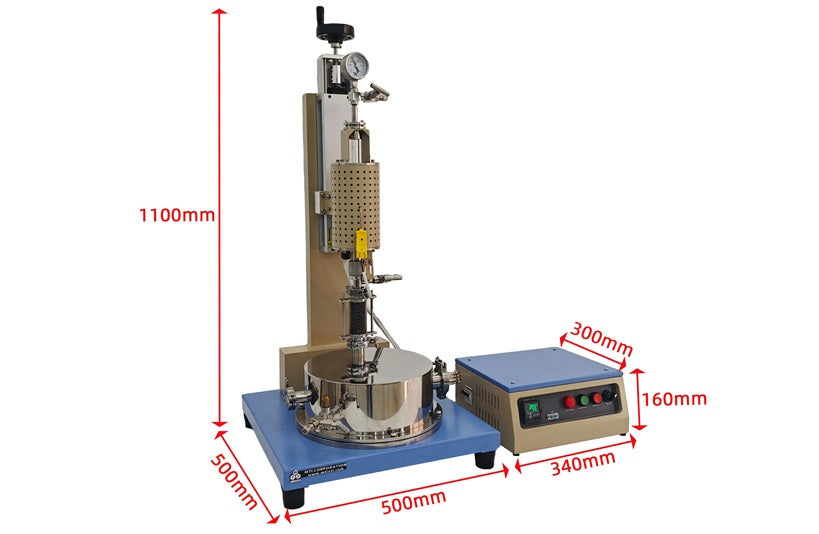

 Furnace Structure
  • Mini Tube furnace with quartz tube of OD 20 mm x ID 17 mm
  • High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • 55 mm heating zone and 15 mm constant temperature zone within +/- 1ºC
  • Vacuum-sealed weight sensor with 0.001 g accuracy
  • Precision temperature controller with 0.1ºC accuracy
  • Vacuum port and gas inlet & outlet ports are built-in
Power
  • 110VAC +/- 10%, single phase, 50/60hz
  • 500W Max
  • 220VAC is available upon request

Temperature Controllers
  • Eurotherm -3000 Programmable temperature controller is built in
  • +/- 0.1 ºC temperature accuracy.
  • Max. heating rate: 20ºC/month
  • One K-type thermocouple.
  • PC control software and interface module are included to show and record the curve both temperature and weight change
  • One brand new laptop computer is included with restored software
Electronic Balance
  • A precision electronic balance is located in the bottom of the heating chamber with a 0.001 g resolution

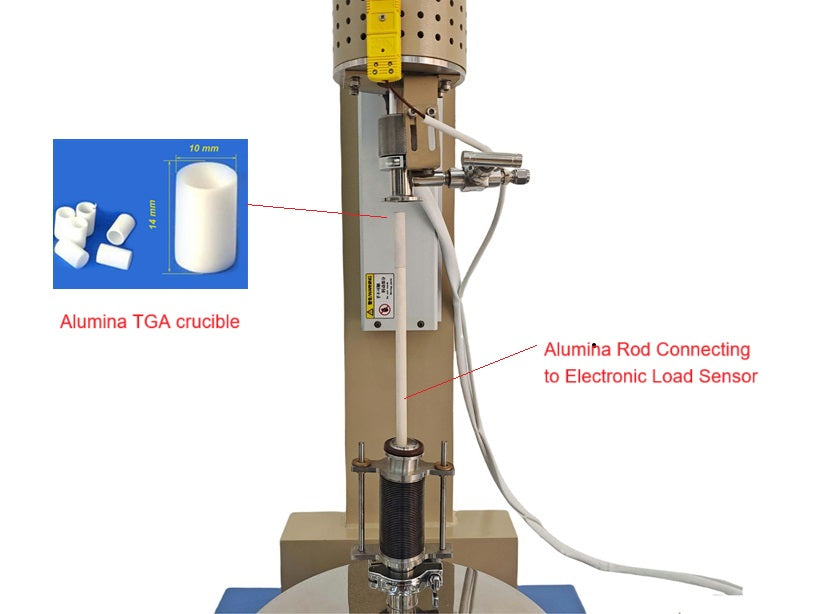

  • The alumina crucible is set on the balance via an alumina rod
  • Max. weighting： 100 g
  • Sample amount: 1 g minimum; 10 g maximum.
  • Force Sensor output data will connect to the laptop to show the weight change curve with the temperature
  • RS485 port and operation software is included
Crucibles

  • Two 1.75 ml alumina crucibles are included. Please click Pic. left to order more
  • The customized crucible is available upon request
Vacuum pump (optional)
  • The TGA can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pump（Pic. 2)
  • Please click the picture below to order the pump and gas delivery system (Pic 3）separately:
  •

 Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.
