Description

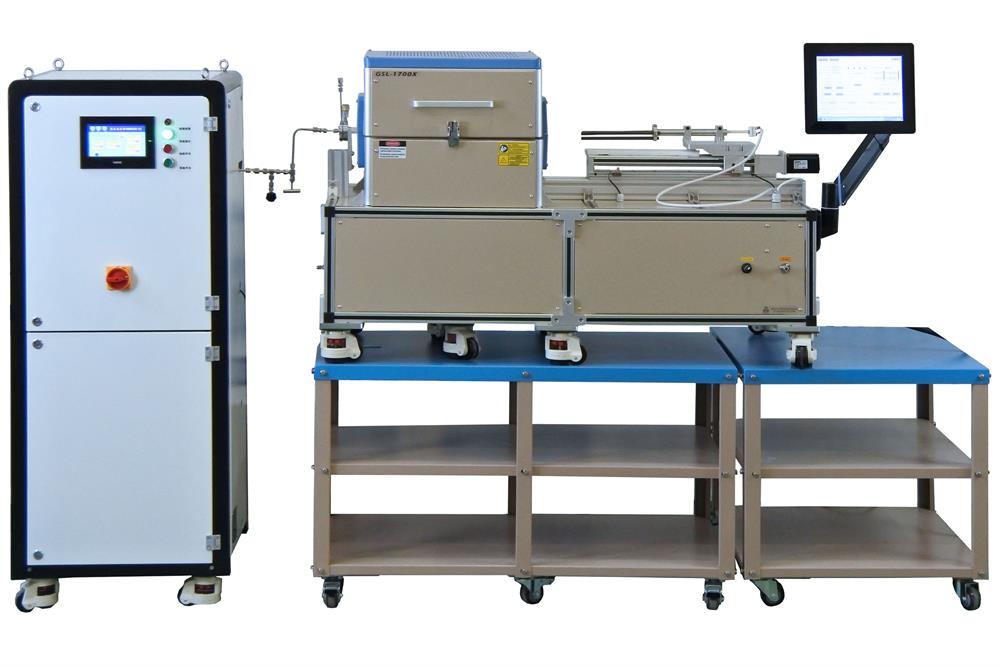

The high-temperature steam-corrosion and thermal shock cycle test furnace GSL-1700X-80CVD can reach 1650 °C, and its continuous working time is 1600. It consists of three parts: a water vapor generator, a heating furnace, and a sample-delivery mechanism. The thermal shock cycling test is easier to perform with customizable cycling parameters(Temperature, Time, and Cycles) via dedicated software.
SPECIFICATIONS
|
Features
|
- The steam intake is made of a 3mm outer diameter platinum-rhodium alloy pipe.
- The outside of the PT tube and alumina tube is protected by flowing gas.
- Three alumina/SIC tubes were used to support the sample, and a B-type thermocouple is used to measure the temperature of the sample.
- The alumina crucible and corundum tube splicing structure prevents vapor from spilling into the furnace and prevents cracking.
- Easy access furnace structure facilitates the replacement of ceramic parts.
- The steam vapor evaporation and gas flow can be customized at extra cost.
|
|
Power
|
9 KW Max |
|
Input Voltage
|
AC 208 - 240V 50/60Hz two phase (≥50A air breaker, 4Ω ground wire is required) |
|
Heating Elements
|
Silicon molybdenum rod
|
|
Processing tube
|
- High-purity Alumina tube: 60 OD x 50 ID x 1100L, mm is included
- Air-tight flanges are included
|
|
Heating Zone Length
|
400mm
|
|
Working Temperature
|
<1600°C Continuous, 1650 °C (<30 min) Max |
|
Recommended Heating Rate
|
10°C /min (≤1400), 5 /min (1400-1600)
|
|
|
- Digital temperature controller with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
- Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
- Over temperature protection and alarm allows for operation without attendants (s).
- +/- 1ºC temperature accuracy. (Can be upgrade to Eurotherm controller with +/- 0.1 ºC accuracy)
- DB9 port for PC connection
- PC control module and software is included for computerized temperature control. Click here to review detailed information.
|
|
Furnace Dimensions
|

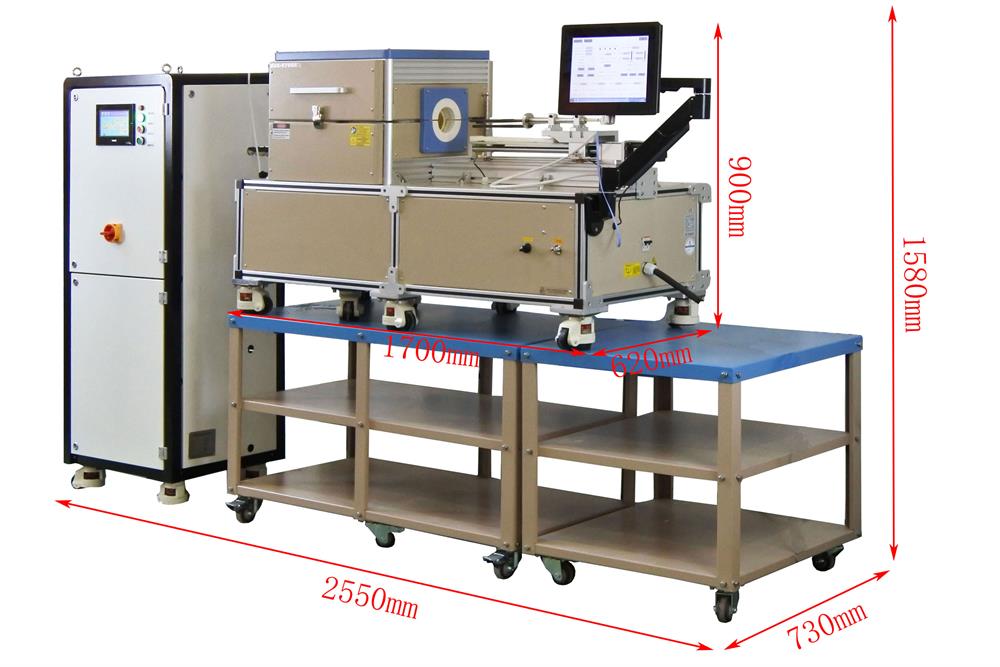

Whole Set: L2550*W730*H1580mm

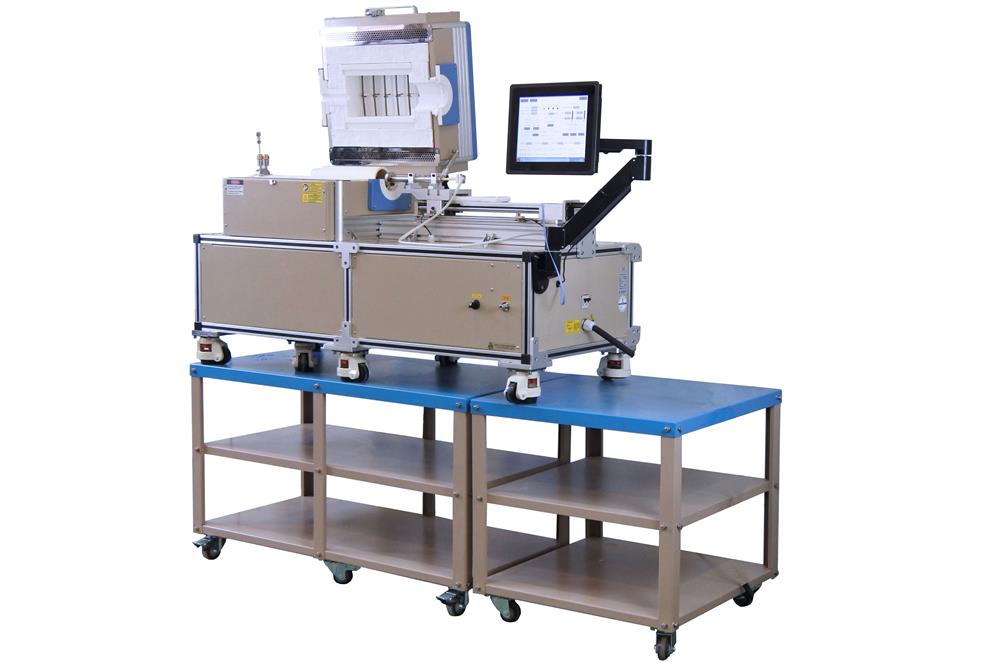

Furnace: L1700*W620*H900mm

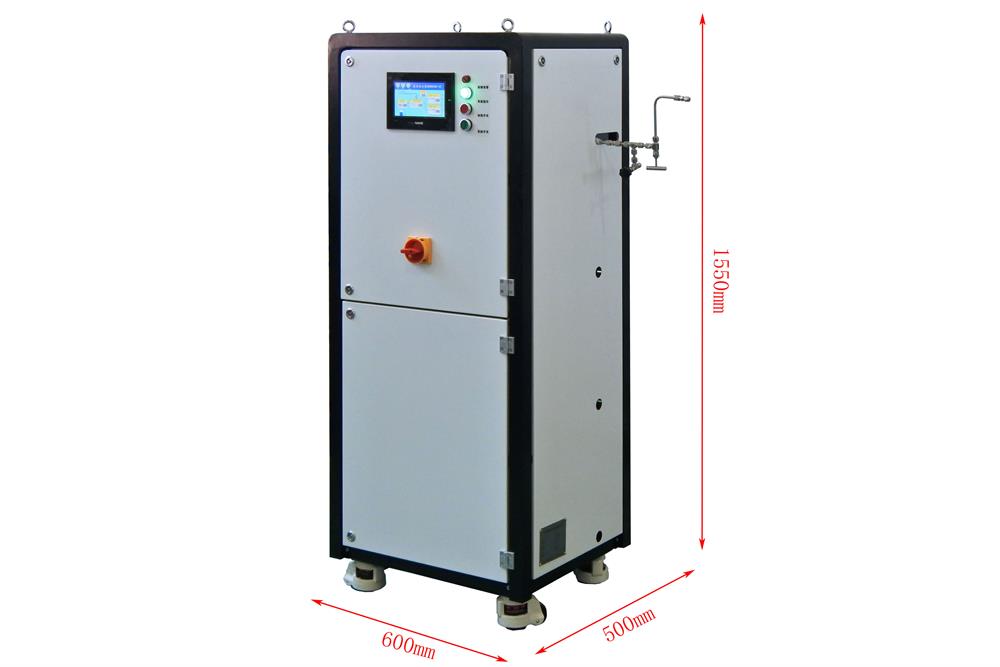

Steam Generator: 600*500*1550mm |
| Compliance |
- CE Certified
- NRTL or CSA certification is available upon request at the extra cost
|
|
Product Net Weight
|
~400Kg
|
