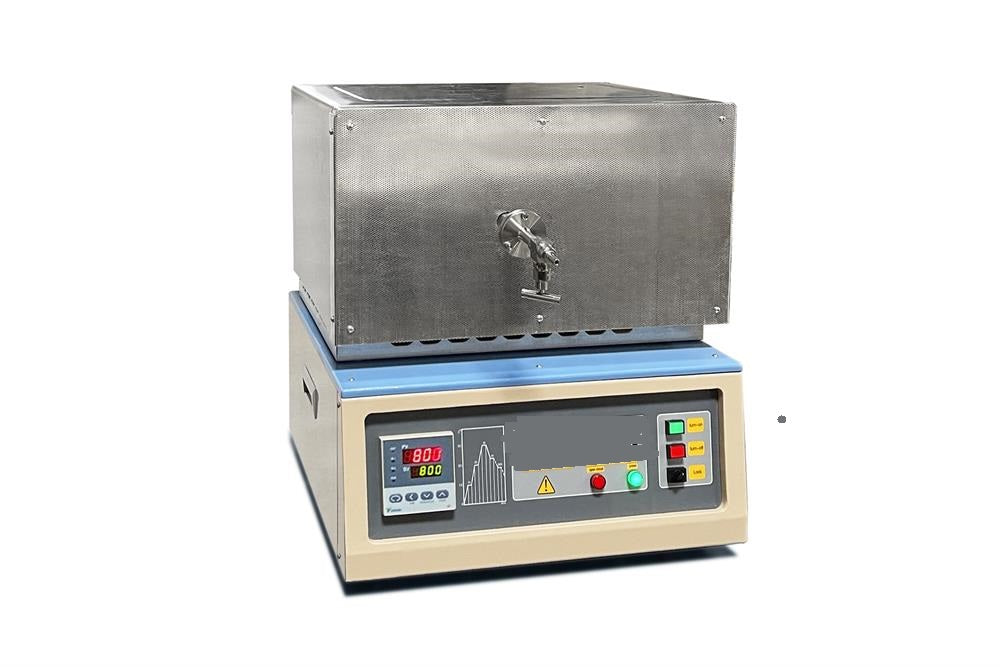

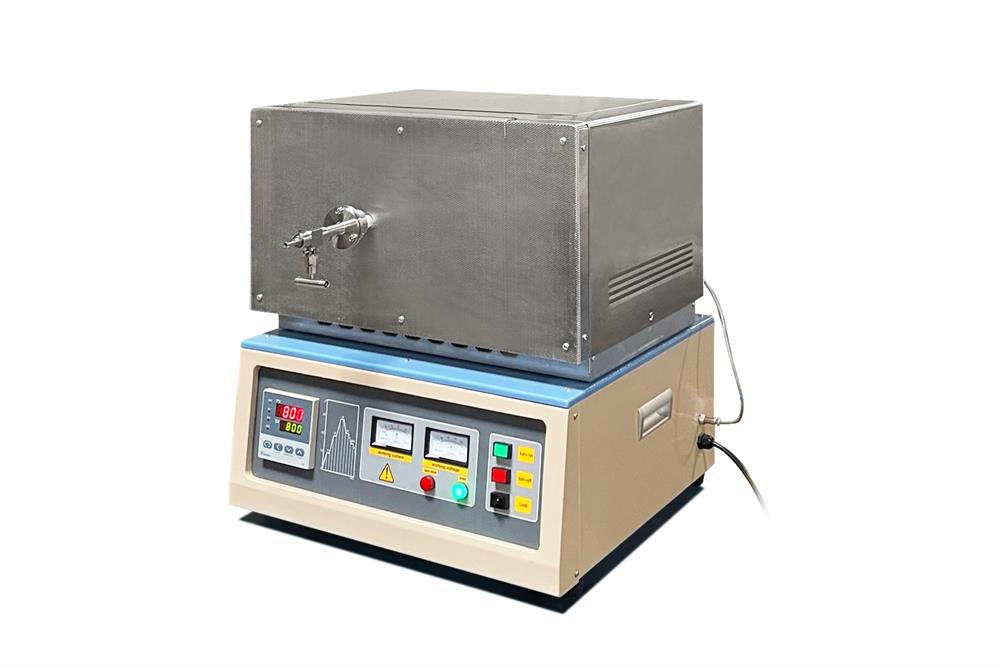

1200°C Max Microwave Heated Tube Furnace: optional 1", 1.57" and 2" Dia. - GSL-MW-25

• Stainless steel and aluminum shield to protect from microwave radiation
• Rapid heating up to 20 ºC/minute speed
• SiC fibrous heating elements
• Precision temperature control with 30-segment programmability within +/- 1ºC
• Vacuum casting thermal insulation material for max. energy saving.

• 2100W
• 208- 240VAC, Single phase, 50/60Hz

• Frequency: 2.45 GHz ±25 MHz
• Power Output: 2100W
• Microwave leaking: ≤ 3 mW/cm² at 1 meter away.

Working Temperature

• ≤1100ºC continous
• Heating rate: 10 ~150°C / min programmable

Heating Elements

• SiC ring is employed as a heating element.
• A fibrous alumina casing is the thermal insulation layer.

 Quartz Tube & Flange

• The standard quartz tube is 25 mm OD x 21 mm ID x 500 mm L

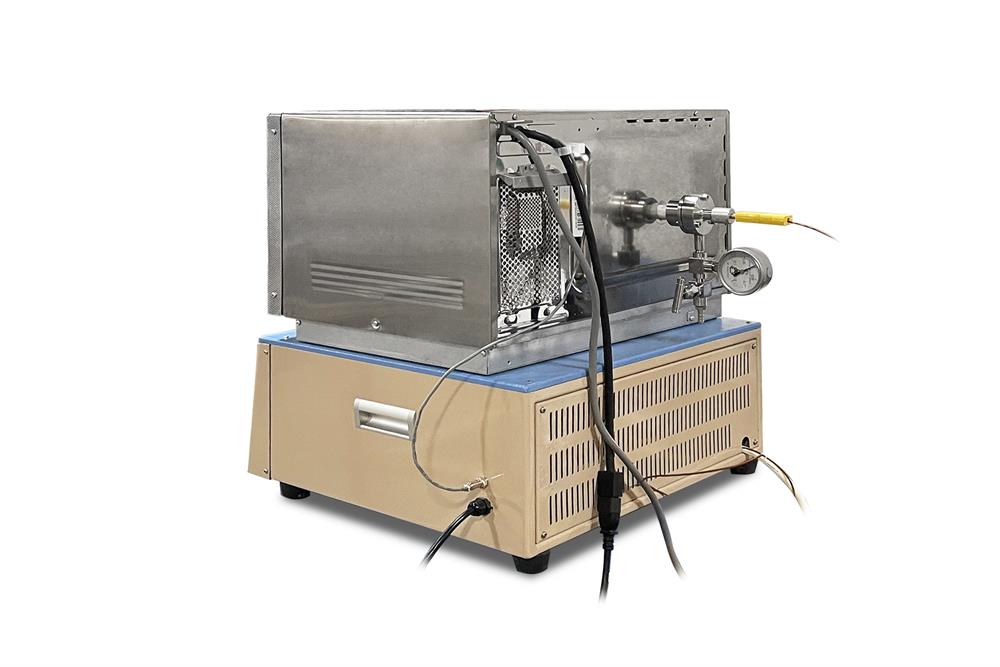

• Vacuum-sealed flange with valve, gauge, and TC feedthrough is included.
• Vacuum level: up to 10-5 torr by turbopump
• 25mm, 40 mm OD or 50 mm OD quartz tube is available for a max working temperature ≤ 1200 °C



 Temperature Controller

• CE Certified
• NRTL certification is available upon request at an extra cost
