Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580
  • Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580
  • Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580
  • Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580
  • Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580
Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580

Hi-Pressure Super Alloy Tube with Flange: OD30x ID12x L580 (mm), Max.1100oC - Tube-HP-30-12-580

SKU: hp-30-12-580

Price: RFQ

Specifications

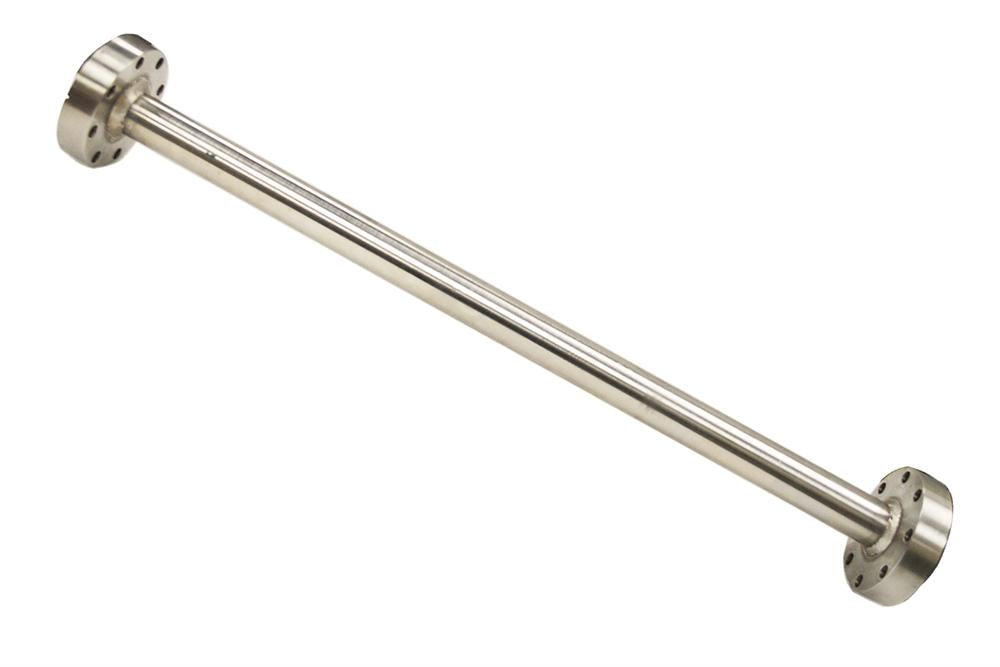

 Ni-based superalloy tube vessel (30mm O.D x 12 mm I.D x 580 mm L). It can be used under ultra-highly oxidizing and inert gas atmosphere up to 1100°C to process special compounds. It is consumable part of OTF-1200X-HP-30A which is a compact HIP (hot isostatic pressure) furnace for researching the new generation of materials at low cost. Specification: Outside Diameter: 30 mm Inside Diameter: 12 mm Tube Length: 580 mm Weight: 9.35 lb Max. working temperature without load: 1100 °C Working Pressure & Temperature: Maximum pressure inside the tube Heating temperature Max. 2900 PSI  (20 Mpa) 800°C Max. 1740 PSI  (12Mpa) 900°C Max. 870 PSI   (6 Mpa) 1000°C Max. 580 PSI   (4 Mpa) 1100°C Warning : Please set up a pressure alarm point in the digital pressure display before the operation Must install a pressure regulator on the gas cylinder to increase pressure gradually. Service life depends on the maximum operating temperature and sample used. The high-pressure vessel is a consumable part, please order replacement once observed deformation. Standard package Name QTY Ni-based superalloy tube vessel ) 1 set Flange 1 set Bolts 1 set Copper Ring 1 set Optional Accessories An optional torque wrench is available here to avoid overtightening the flange bolts Option High-pressure relief valve with pre-set safe pressure Option High-temperature pressure transmitter to read pressure Installation:

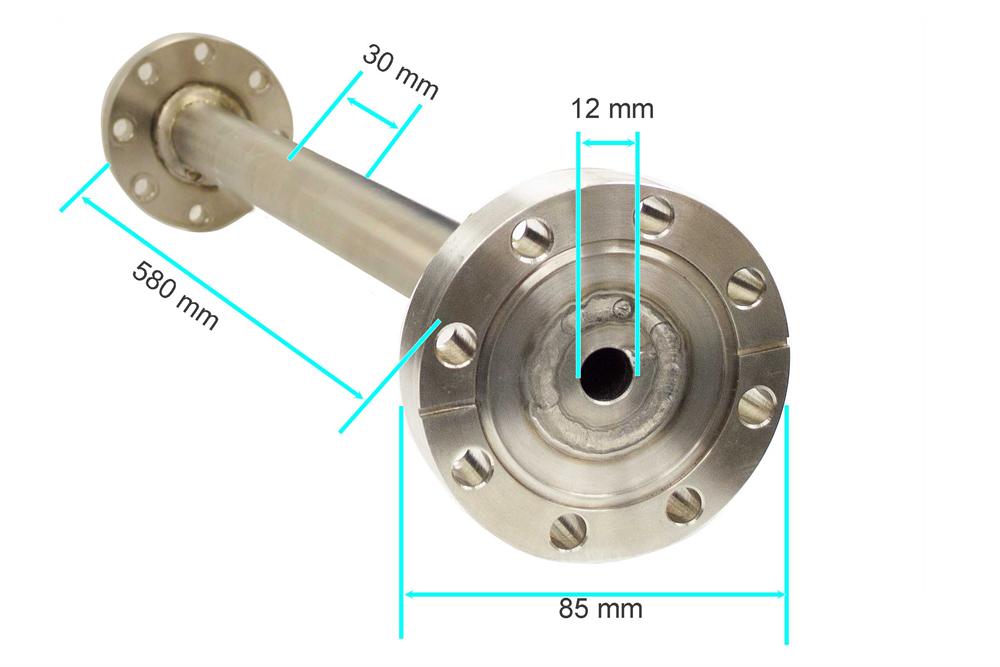

    Outside Diameter:          30 mm
    Inside Diameter:           12 mm
    Tube Length:                             580 mm
    Weight:          9.35 lb
    Max. working temperature
    without load:   		         1100 °C
     Working Pressure
             &
    Temperature:
Maximum pressure inside the tube
 Heating temperature
Max. 2900 PSI  (20 Mpa) 800°C
Max. 1740 PSI  (12Mpa) 900°C
Max. 870 PSI   (6 Mpa) 1000°C
Max. 580 PSI   (4 Mpa) 1100°C
Warning:
  • Please set up a pressure alarm point in the digital pressure display before the operation
  • Must install a pressure regulator on the gas cylinder to increase pressure gradually.
  • Service life depends on the maximum operating temperature and sample used. The high-pressure vessel is a consumable part, please order replacement once observed deformation.

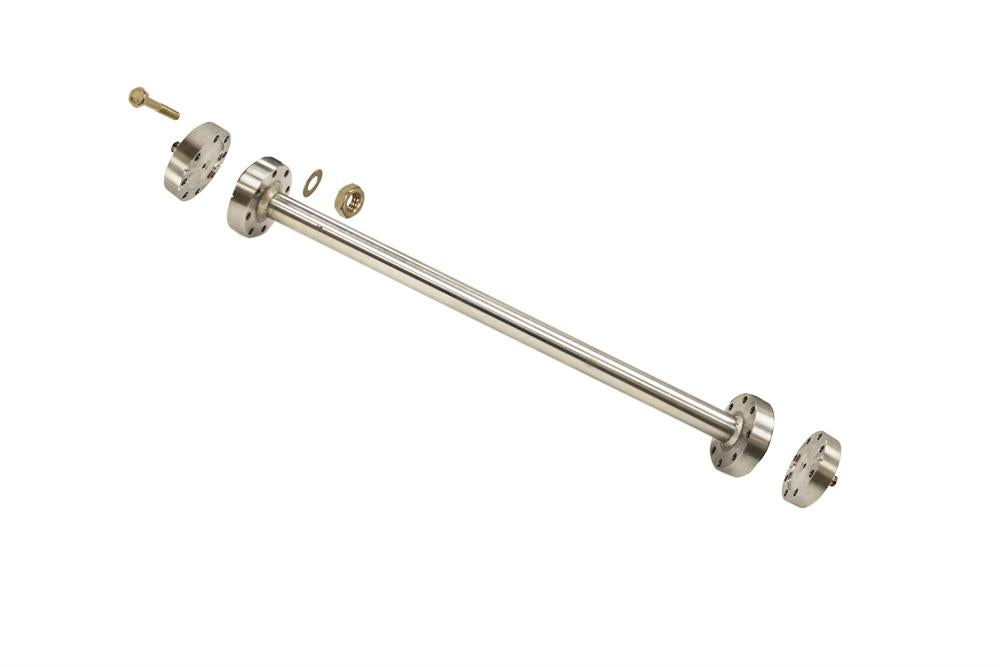

Standard package
 Name
 QTY
Ni-based superalloy tube vessel) 1 set
Flange  1 set
Bolts  1 set
Copper Ring 1 set
Optional Accessories

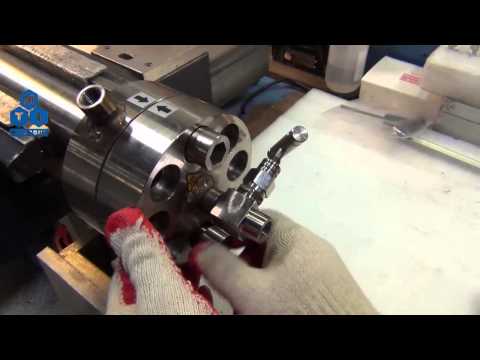

      Installation:
,
Maximum pressure inside the tube
 Heating temperature
Max. 2900 PSI  (20 Mpa) 800°C
Max. 1740 PSI  (12Mpa) 900°C
Max. 870 PSI   (6 Mpa) 1000°C
Max. 580 PSI   (4 Mpa) 1100°C
,
 Name
 QTY
Ni-based superalloy tube vessel) 1 set
Flange  1 set
Bolts  1 set
Copper Ring 1 set
