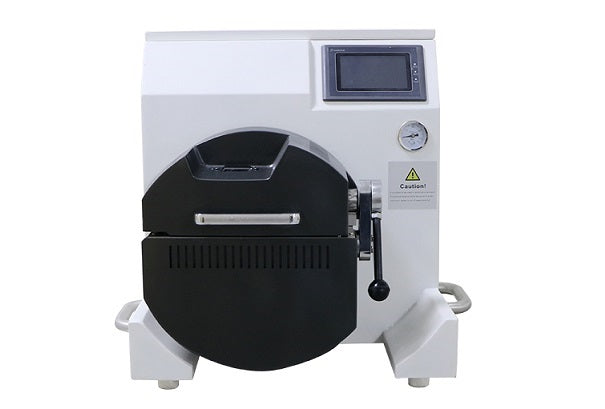

Desktop Induction Melting Furnace w/ Automatic Rotary Casting Function up to 1700°C @ 100 g - IMCS-2000-S

• 208 - 240VAC 50/60Hz, single phase
• 5 kW

• Induction heating and casting in a closed chamber.
• Single-point temperature control
• Temperature control via a B-type thermocouple
• Adjustable heating power.
• Up to 1700 degrees Celsius.

• The automatic tilting function allows the melt is cast into the mold immediately.

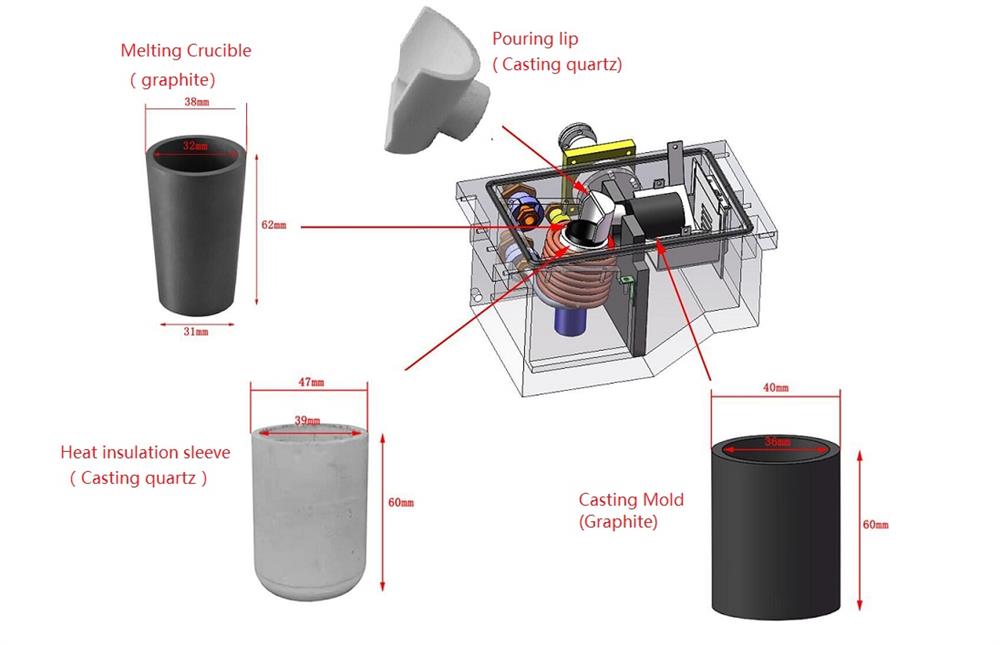

• One graphite crucible 32 ID × 60 mm Depth ) (about 100 g Fe)
• One quartz insulation for graphite crucible (39 ID × 60 mm Depth)
• One quartz-casting lip
• One graphite casting mold ( 36 ID × 60 mm Depth)
• BN casting mold is available at $190
• Note: Compressive air pump or compress Ar gas is required for tilting melting/casting chamber

• Max. Vacuum~5 torr (via an external mechanical pump); ~200 torr (via the internal pump).
• Atmosphere: 800 - 900 torr under Ar gas.
• Max pressure: 1100 torr
• One internal mechanical pump is included.
• One built-in Ar gas venting port.
• Note: Ar gas cannot continuously flow through the chamber during melt-casting.
• Note: The furnace is designed to work under positive Ar gas instead of a high vacuum. For high-vacuum melting, please consider IMCS-2000.

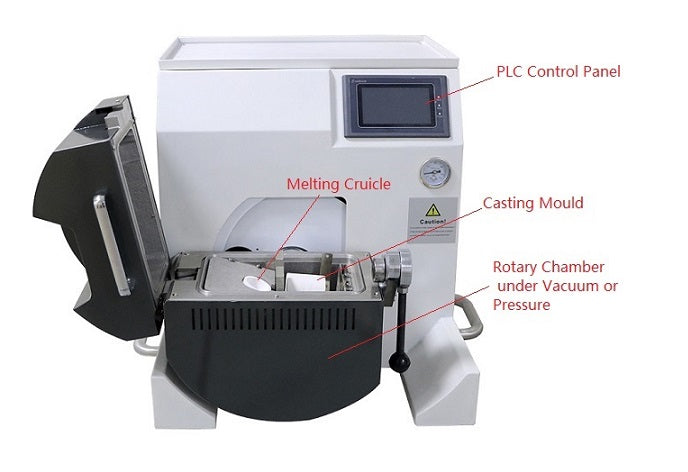

• Touch Screen and PLC digital control

• Ambient temperature
• 30% – 93% RH

• 16 L/m water cooling is required.
• KJ5000 water chiller is optional at an extra cost.

Vacuum Pump

• One external 156 L/min mechanical vacuum pump is optional upon request to achieve a better vacuum.

• CE certified
• NRTL certification is not available
