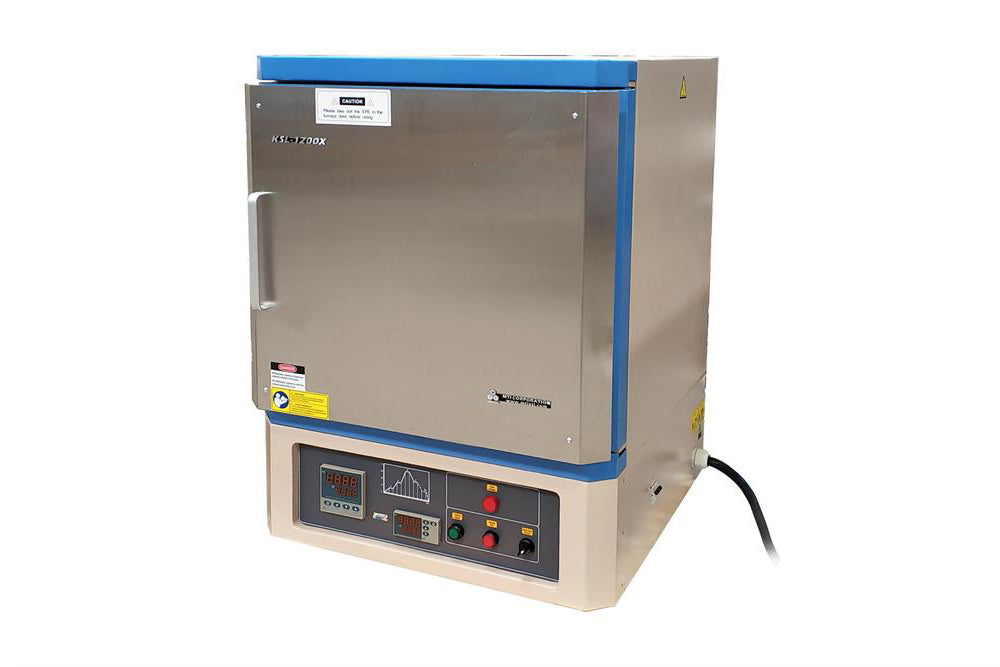

5-Side Heating Muffle Furnace (16x16x16", 64L. 2.37 cu ft, 1200°C max.) w/ Dual Temp. Controllers - KSL-1200X-L5

KSL-1200X-L5 is a five-side muffle furnace with an enhanced uniform temperature zone, especially for the front and back sides. A SiC base plate is installed on the bottom of the chamber with a load capacity of 100 kg.

SPECIFICATIONS

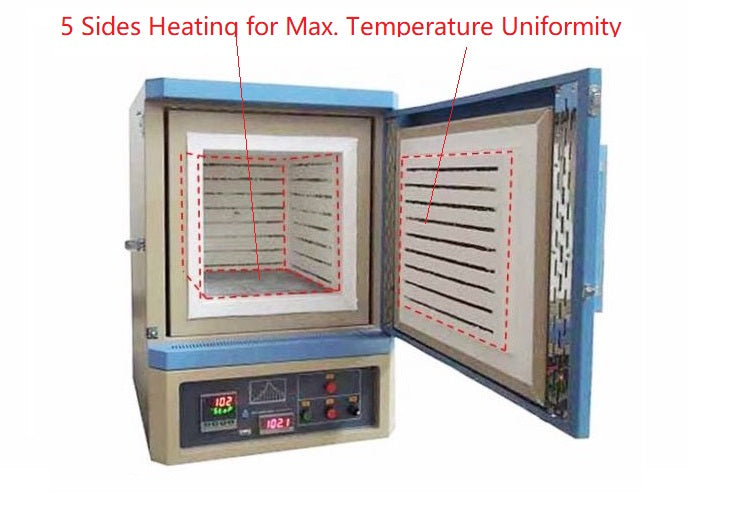

Structure	Five sides heating ( left, right, front, back, and bottom ) to achieve a more uniform temperature zone. One SiC sheet is placed on the bottom of the chamber ( top of the heating element ) to support heavy sample load up to 100 kg. Double temperature controller to ensure the furnace never overshoots  Thermally efficient ceramic (high-purity alumina fiber) insulation surrounding the chamber provides maximum energy efficiency.  Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.  Built-in vent port removes undesirable contaminants and moisture; extends the life span of the heating elements and furnace.
Power	Voltage:  AC 208 - 240, three-phase, 50/60Hz 12KW Watts 50A breaker  Note:  Power cable included, but without the plug. Please install a plug on your own
Heating Chamber	Chamber size: 16'x16"x16"   ( 400 x400x400 mm)  Capacity:   2,25 cubic foot, ( ~64 L) Five sides heated by NiCrAl resistance coils with max temperature uniformity ( +/- 3oC at uniform temp zone) Max. loading: 100 Kg
Operating Temp Range	100-1100°C-Max continuously 1200°C-Max under an hour Note: for using =>1000°C, the furnace block must be placed front chamber.
Stability at 1000oC	+/- 1°C
Uniformity at 1000oC	+/- 3°C @300°C and 1000°C in the center 300 × 300 × 300mm area
Max. Heating Rate	20°C/ min
Temperature Controller	A digital temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1ºC temperature control accuracy The default DB9 PC communication port
Optional +/- 0.1ºC Controller	MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.  You may upgrade the temperature controller to the Eurotherm Temperature Controller, which is fully compatible with LabVIEW and provides +/- 0.1ºC accuracy. This package includes a Eurotherm programmer, a communication cable (RS485-USB), and a software CD. Click the pic below to view the full spec of the Eurotherm temperature controller.
Laptop, software & WiFi (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use. LabVIEW-Based Temperature Control System (EQ-MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Gas Inlet and Outlet	A 1/4'' Barbed Gas Inlet/Outlet is installed on the back of the furnace.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available at extra cost.
Application Notes	This furnace is not vacuum-sealed; toxic or explosive materials and gases are not recommended for use with this furnace without the necessary safety controls and supervision.  Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence, and the cracks may be repaired with alumina coating.
