Description
|

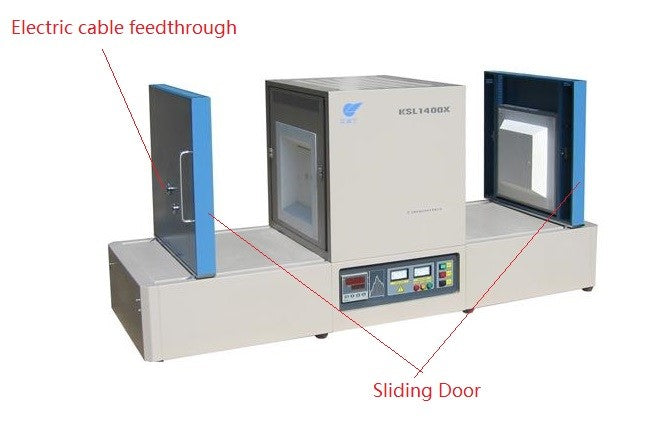

Main Specifications KSL-1500X-D is a double door muffle furnace with sliding rails on each door, which makes load simple easy and cooling charmer fast to increase productivity. The furnace consists of high-quality alumina fiber brick and SiC heating elements with a chamber of 250x250x300mm and can be used up to 1400 oC. It is designed for fuel cell module tests. |
|
|
Standard Working Temperature |
1400 oC ( continuous ) |
|
Maximum Working Temperature |
1500 oC ( < 1 hrs) |
|
Temperature Control |
30 segments programmable and auto control The Control unit box is separated from the furnace |
|
Heating Rate |
0~10 oC / min (suggestion at =< 5 oC) |
|
Thermal Coouple |
S type |
|
Temperature Accuracy |
+/- 1 oC |
|
Heating Element |
SiC |
|
Working Voltage |
AC 220V +/- 10%, Single Phase, 50/60 Hz |
|
Max. Power |
5 KW |
|
Compliance |
CE certified |
