Specifications
|

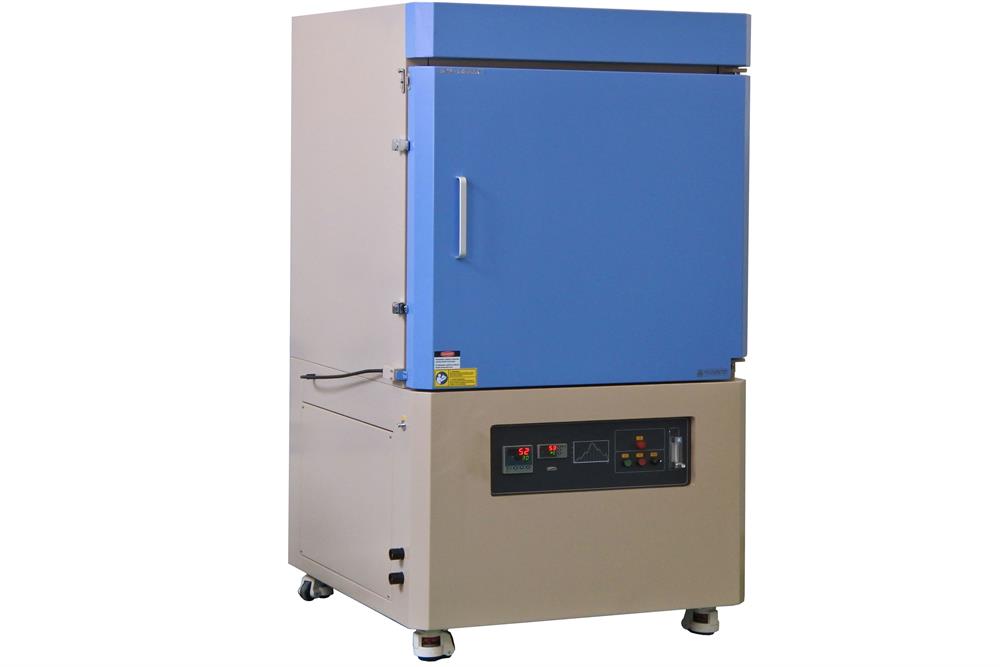

Main Specifications KSL-1700X-A7 is a large chamber muffle furnace with a separate control unit for the industry. The furnace consists of high-quality alumina fiber brick and MoSi2 heating elements with a 216L chamber and can be used up to 1700 oC for sintering large-size components |
|
|
Construction |
Air-cooled double-layer steel casing. Alumina fiber insulation inside |
|
Standard Working Temperature |
1600 oC ( continuous ) |
|
Maximum Working Temperature |
1700 oC ( Max. < 30 mins) |
|
Temperature Control |
PID automatic control via current limiting phase angle fired the resistor with a 30-step programmable |
|
Heating Rate |
10/min1400 5/min1400-1600 2/min1600 |
| Thermal Couple | B type |
|
Temperature Accuracy |
+/- 1 oC |
|
Heating Element |
MoSi2 (12 pcs 1700oC grade heating elements) |
|
Working Voltage |
480 VAC +/- 10%, three phases, 50/60Hz |
|
Max. Power |
32 KW |
|
