Description

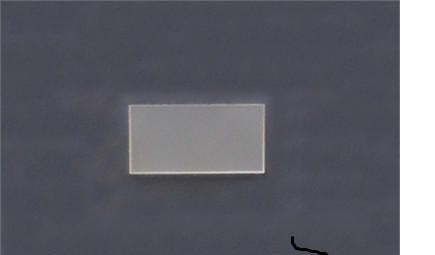

- Single crystal KTaO3
- Orientation: (100) +/0.5o Edge // <001> & <010>
- Size: 10 mm x 5mm x 1.0mm
- Polish: one side polish
- Surface roughness: < 5A
Typical Properties
- Molecular weight: 268.04
- Crystal Structure: Cubic, Perovskite, a = 3.989 Angstroms
- Melting point: Does not melt congruently.
- Density: 7.015 g / cc
- Thermal conductivity: 10-20 w/m.k at 300k
- Refractive index: 2.14
- Sellenmeyer equation: ηo2 -1 =3.591λ2 / (λ2 -0.193) 2 ), (λ in µm, from 0.4 -1.06 µm )
- Crystal growth method: Top seed flux growth
