SKU: mea-mfc

Price: RFQ

Description

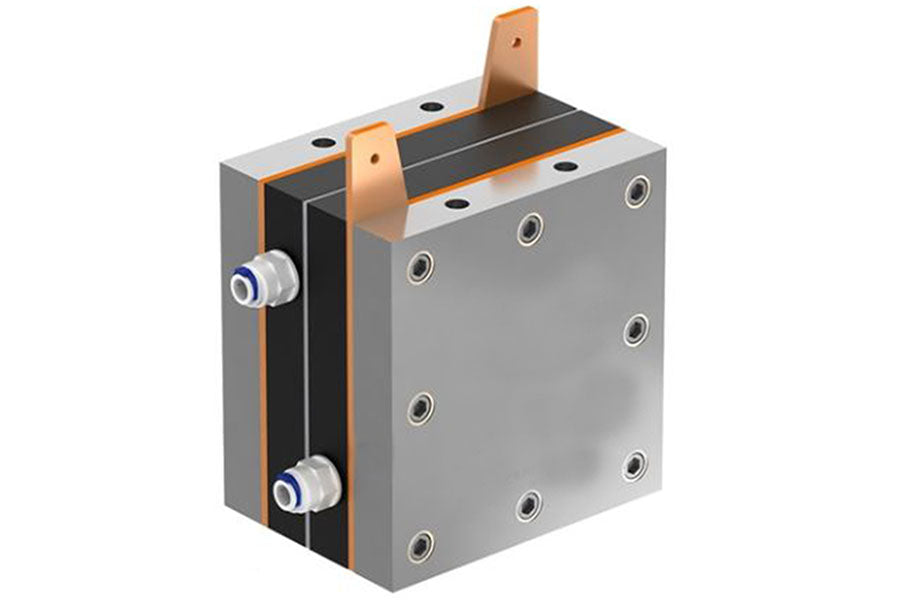

 The MEA-EFC is a split electrochemical cell with MEA structures and graphite bipolar plates for electrolyzer or fuel cell testing under heating function. SPECIFICATIONS: Structural Features The whole electrochemical cell was made by high purity titanium (Ti) metal for support and protection, copper plates as current collector, and graphite plates with serpentine channels for gas flow and diffusion. PTFE gaskets with high electrochemical corrosion property was used to hold the membrane electrode assembly (MEA) with a sandwitch structure. Flow Channels with serpentine shape for increasing reaction retention time. Flow channels with other shapes are also available upon request, such as parallel, vein type. Channel Area 2 cm * 2 cm Full Solution Electrolyzer ( optional ) Electrolyte reservior, peristatic pump, and tubings are integrated together for full solution water/CO2 electrolysis or fuel cell testing Gas Flow and Humidity Controller (Optional) For gas flow controller (eg: O2, H2, CH4), please consider the following ones: For humidity monitor, please consider the following humidity sensors: Valves & Fittings 1/4" O.D Tube Fittings for inlet and outlet ports

Structural Features

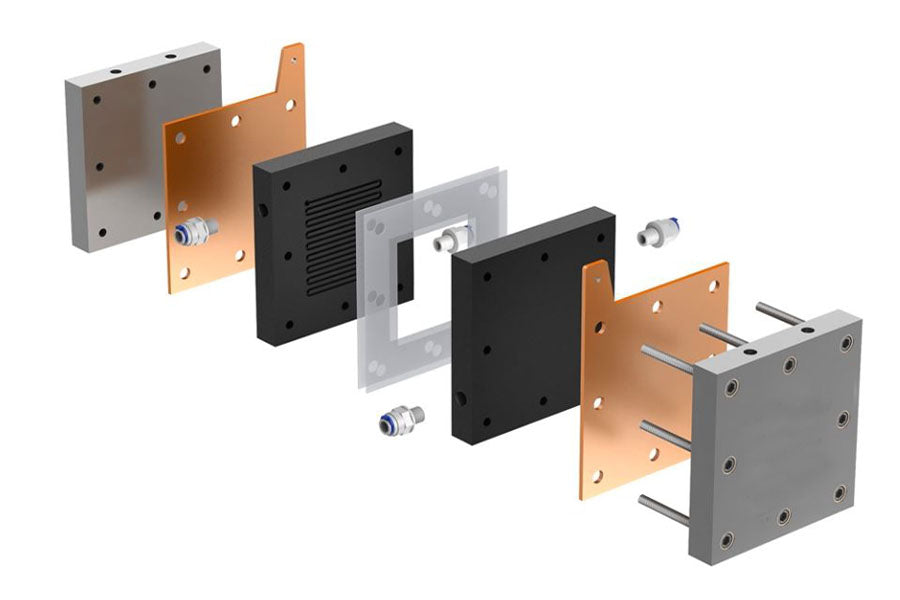

  • The whole electrochemical cell was made by high purity titanium (Ti) metal for support and protection, copper plates as current collector, and graphite plates with serpentine channels for gas flow and diffusion.
  • PTFE gaskets with high electrochemical corrosion property was used to hold the membrane electrode assembly (MEA) with a sandwitch structure.
  • Flow Channels with serpentine shape for increasing reaction retention time. Flow channels with other shapes are also available upon request, such as parallel, vein type.
Channel Area 2 cm * 2 cm
Full Solution Electrolyzer (optional)

Electrolyte reservior, peristatic pump, and tubings are integrated together for full solution water/CO2 electrolysis or fuel cell testing
Gas Flow and Humidity Controller (Optional) For gas flow controller (eg: O2, H2, CH4), please consider the following ones:




For humidity monitor, please consider the following humidity sensors:



Valves & Fittings 1/4" O.D Tube Fittings for inlet and outlet ports
