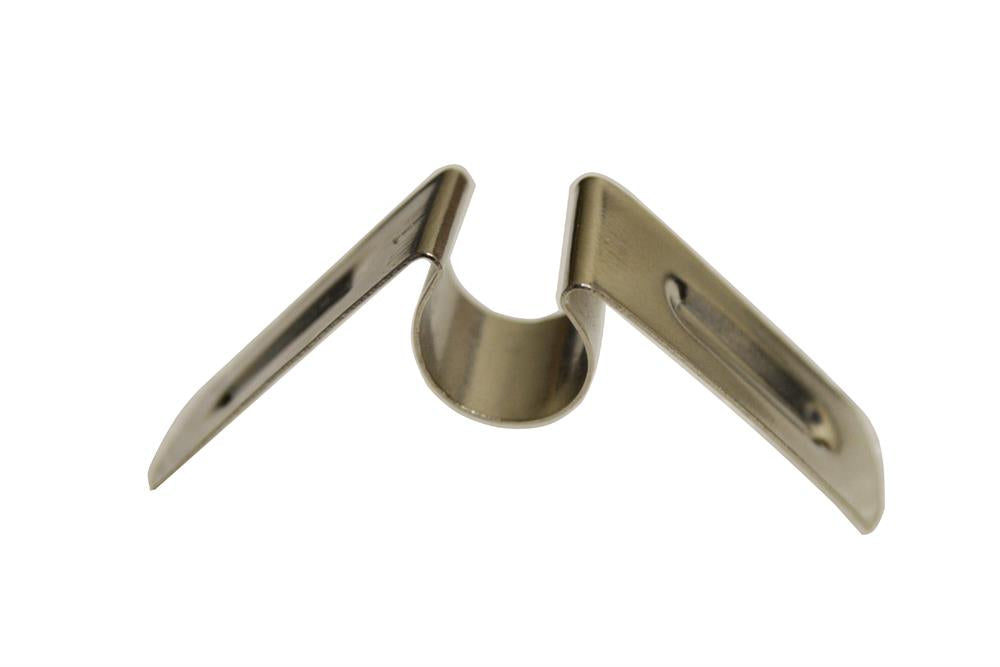

Metal clamp / Aluminum strip for mounting Silicon Carbide (SiC) Heating Rods - EQ-HE-CLP

Metal clamp & Aluminum strip for mounting the heating elements of  Tube Furnace Replacement items are non-returnable and non-exchangeable.

Notice:	These two are customized products, please email us your MTI furnace model name before you place the order. This product is sold in each.
Metal clamp EQ-HE-CLP
Aluminum  strip  EQ-HE-ALS	Five pcs in total
Operations Manual
Application Notes	SiC heating elements are extremely brittle and need to be handled with care at all times. To avoid breaking, do NOT over-tighten the aluminum connecting plates between the rods of heating elements. However, a loose connection could cause a higher contact resistivity and increase the temperature on the top of furnace dramatically. If the temperature on top of furnace is too high during heating, please shut down the power and remove the cover to further tighten the screws between heating element rods and aluminum plates
Option Tool	Internal Straight Precision Retaining Snap Ring Circlip Pliers for installing 1500C grade SIC heating element, MTI-Pilers-SIC
