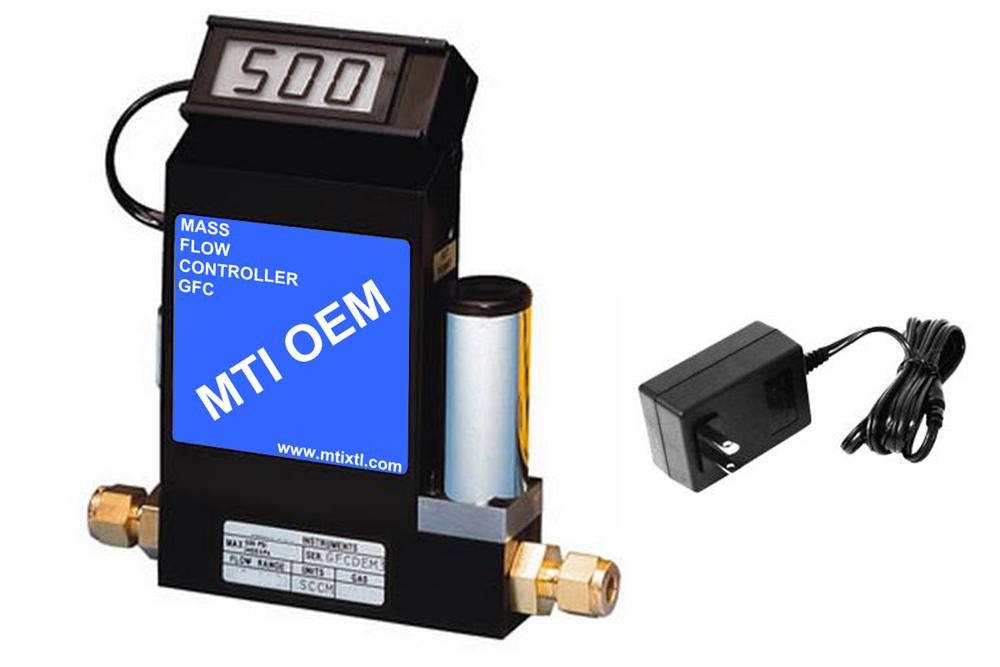

Precision Mass Flow Controller with Digital Display & Aluminum Body 0 - 2 L/min - MFC-GFC-LD
  • Precision Mass Flow Controller with Digital Display & Aluminum Body 0 - 2 L/min - MFC-GFC-LD
  • Precision Mass Flow Controller with Digital Display & Aluminum Body 0 - 2 L/min - MFC-GFC-LD
Precision Mass Flow Controller with Digital Display & Aluminum Body 0 - 2 L/min - MFC-GFC-LD

Precision Mass Flow Controller with Digital Display & Aluminum Body 0 - 2 L/min - MFC-GFC-LD

SKU: mfc-gfc-ld

Price: RFQ

Specifications

 Compact, self-contained GFC mass flow controllers are designed to indicate and control flow rates of gases. The rugged design coupled with instrumentation grade accuracy provides versatile and economical means of flow control. The built-in electromagnetic valve allows the flow to be set to any desired flow rate within the range of the particular model. The valve is normally closed as a safety feature to ensure that gas flow is shut off in the case of a power outage. The LCD readout built into the top of the transducer is tiltable over 90 degrees to provide optimal reading comfort. GFC mass flow controllers are available with flow ranges from 10 sccm to 2000 mL/min (N2). Gases are connected by means of 1/4” compression fittings. These controllers may be used as benchtop units or mounted by means of screws in the base.Transducer power supply ports are fuse and polarity protected.

Features
  • Rigid metallic construction
  • 0-5 Vdc and 4-20 mA signals
  • built-in tiltable LCD readout
  • NIST traceable certification
  • circuit protection
  • totalizer option
Calibration Gas
  • Nitrogen (MFCGFC) | Hydrogen (MFCGFCH)
Power supply
  • AC 110-240V 50/60Hz to DC 12V / 1 A power adapter included
Flow range
  • 0 - 2L/min (MFCGFC) | 0 - 100mL/min (MFCGFCH) , adjustable by a screwdriver.
Body Materials
  • Aluminum
Max. pressure
  • 1000 psig (70 bars)
Working Temperature
  • 0oC ~ 50oC
Leak integrity
  • 1 x 10-9 sccs of helium
Inlet/Outlet fitting
  • 1/4'' compression tube fitting
Valve Seal
  • Viton-A® seals
Display
  • LCD digital
Weight
  • 2 lbs
Dimension
  • 160 X 28 X 145 mm
Optional
  • Special gas calibration is available upon request
Application Note
  • This is the N2 calibrated MFC. For the use of other type gasses, please refer to its gas coefficient conversion table which is listed in the operation manual.
  • For liability considerations, at MTI do not endorse or recommend any product for a given gas, corrosive or otherwise. Our obligation is to list all construction materials in fluid contact, and customer’s responsibility
  • For different gasses DuPont publishes compatibility information, see: https://dupont.secure.force.com/CRG_Home
