Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
  • Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
  • Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
  • Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
  • Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
  • Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231
Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231

Economic Small Dry Room (60 SF) Up to - 40oC Dew Point - MSK-ADS800EP40S-231

SKU: msk-adr-c60

Price: RFQ

Description

 MSK-ADS800EP40S-231 is a low-cost small dry room system with a 6 square meters ( 60 SF) area and a dew point < -40ºC. ( one person with protective cloth). The area of the small dry room is equal to 6 standard gloveboxes, but the cost is about 3 gloveboxes. You can put a whole set of coin cell battery equipment or a small pouch cell line inside, and work more efficiently. The working mechanism of the wheel roller with gel inside the dehumidifier is shown below: SPECIFICATIONS Features The small dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse. Can be installed without a construction contractor, and moveable by yourselves Dew Point: -40ºC (~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator. 8KW total power: (50/60Hz) for energy saving The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60% Flexible to choose dehumidifier and water chill for DIY your own dry room Dry Room The small dry room is modified by a greenhouse. You can buy it from Amazon and modify it into a sealed room DIY Dimension: L3180mm x 1900mm* x 1930mm The gas inlet port ( 8" diameter ) and outlet out ( 6") are included Dehumidifier Air flow volume: 800 cmh Fresh dry die flow: 500 cmh Dew point: < 60 oC in empty room , < 40oC with one person within 20 minutes Recirculating cooling water: 《 7oC required Power consumption: 5 KW Water Chiller One recirculating water chiller is included Refrigerating capacity： 7826Kcal/h（9.1kw) Water flow rate: 60 liter/minute Water tank capacity： 50L Temperature range: 5 - 35oC  adjustable Water pipe： 1” diameter Power Consumption: 2.2KW Power requirement AC 220 V +/- 10%, 50 / 60Hz, Three phases (The 380VAC version is available upon request) 8KW total power consumption: 30A air-breaker for power panel of dehumidifier and water chiller {I = P/ (1.73 * U * 0.85)}. Noise level < 55 dB Note and Warning Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point Please keep the cloth inside the dry room to keep it dry. Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room

Features

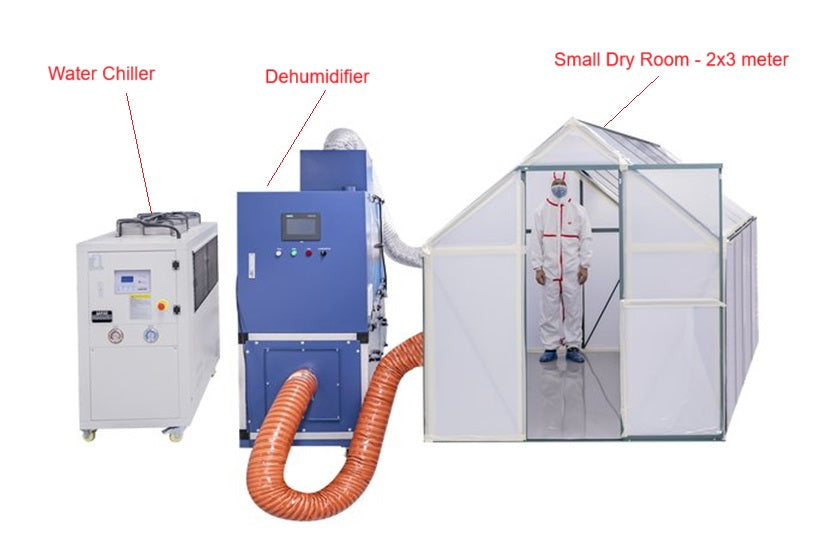

  • The small dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse.
  •  Can be installed without a construction contractor, and moveable by yourselves
  • Dew Point: -40ºC (~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
  •  8KW total power: (50/60Hz) for energy saving
  • The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60%
  • Flexible to choose dehumidifier and water chill for DIY your own dry room
 Dry Room
  • The small dry room is modified by a greenhouse. You can buy it from Amazon and modify it into a sealed room DIY

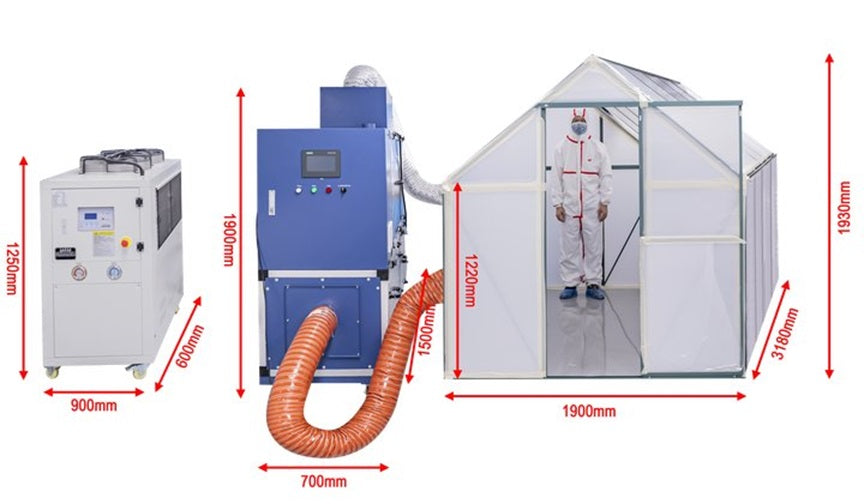

  • Dimension: L3180mm x 1900mm* x 1930mm
  • The gas inlet port ( 8" diameter ) and outlet out ( 6") are included

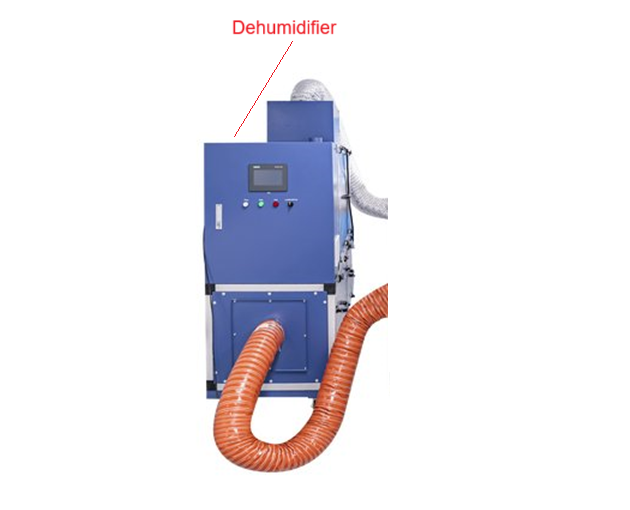

 Dehumidifier
 Air flow volume: 800 cmh
Fresh dry die flow: 500 cmh
Dew point: < 60 oC in empty room , < 40oC with one person within 20 minutes
Recirculating cooling water:  《 7oC required
Power consumption: 5 KW
 Water Chiller

One recirculating water chiller is included

 Refrigerating capacity： 7826Kcal/h（9.1kw)
Water flow rate: 60 liter/minute
Water tank capacity： 50L
Temperature range: 5 - 35oC  adjustable
Water pipe： 1” diameter
Power Consumption: 2.2KW
Power requirement
  • AC 220 V +/- 10%, 50 / 60Hz, Three phases
  • (The 380VAC version is available upon request)
  • 8KW total power consumption:
  • 30A air-breaker for power panel of dehumidifier and water chiller {I = P/ (1.73 * U * 0.85)}.
Noise level
  • < 55 dB
Note and Warning
  • Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point
  • Please keep the cloth inside the dry room to keep it dry.
  • Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room
,
