Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
  • Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
  • Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
  • Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
  • Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
  • Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
  • Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L
Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L

SKU: msk151l500

Price: RFQ

Specifications

 MSK-151-L500 is a precision slurry feeding device with 500ml or 1000 mL stainless steel syringe for Li-ion battery electrode coating process. It is compatible with the MTI machines MSK-AFA-200 , MSK-AFA-MC200 , and MSK-AFA-300-LD. SPECIFICATIONS: Products MSK-151-L500 MSK-151-L1000 Features High-precision control Easy-to-use control panel screen Adjustable movement speed Equipped with a 500 ml stainless steel slurry syringe Power Single Phase, NRTL listed AC 100 - 240 V In & DC 24 V Out power adapter is included 120W Speed Running Speed: 0.17 - 20 ml/s Plunger Speed: 0.05-5mm/s adjustable Accuracy: +/- 0.05 ml Running Speed: 0.17 - 20 ml/s Accuracy: +/- 0.05 ml Syringe pump Material: 316 stainless steel Size: I.D. 65mm, L = 165 mm Capacity: 500ml Volume Material: 316 stainless steel Capacity: 1L Volume Touch-Screen Control Panel Pump speed is adjustable Pre-setting injection volume Display the current injection volume Edit other parameters in the system Manual operation is also available Options To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter and dispersing machine to find the best parameter for your coating, Applications notes Such a slurry feeder can be used with MTI equipment such as MSK-AFA-MC200 and MSK-AFA-300-LD. to achieve higher production efficiency.

Products

 MSK-151-L500 MSK-151-L1000

Features
  • High-precision control
  • Easy-to-use control panel screen
  • Adjustable movement speed
  • Equipped with a 500 ml stainless steel slurry syringe
Power
  • Single Phase, NRTL listed AC 100 - 240 V In & DC 24 V Out power adapter is included
  • 120W
Speed
  • Running Speed: 0.17 - 20 ml/s
  • Plunger Speed: 0.05-5mm/s adjustable
  • Accuracy: +/- 0.05 ml
  • Running Speed: 0.17 - 20 ml/s
  • Accuracy: +/- 0.05 ml
Syringe pump
  • Material: 316 stainless steel
  • Size: I.D. 65mm, L = 165 mm
  • Capacity: 500ml Volume
  •  Material: 316 stainless steel
  • Capacity: 1L Volume

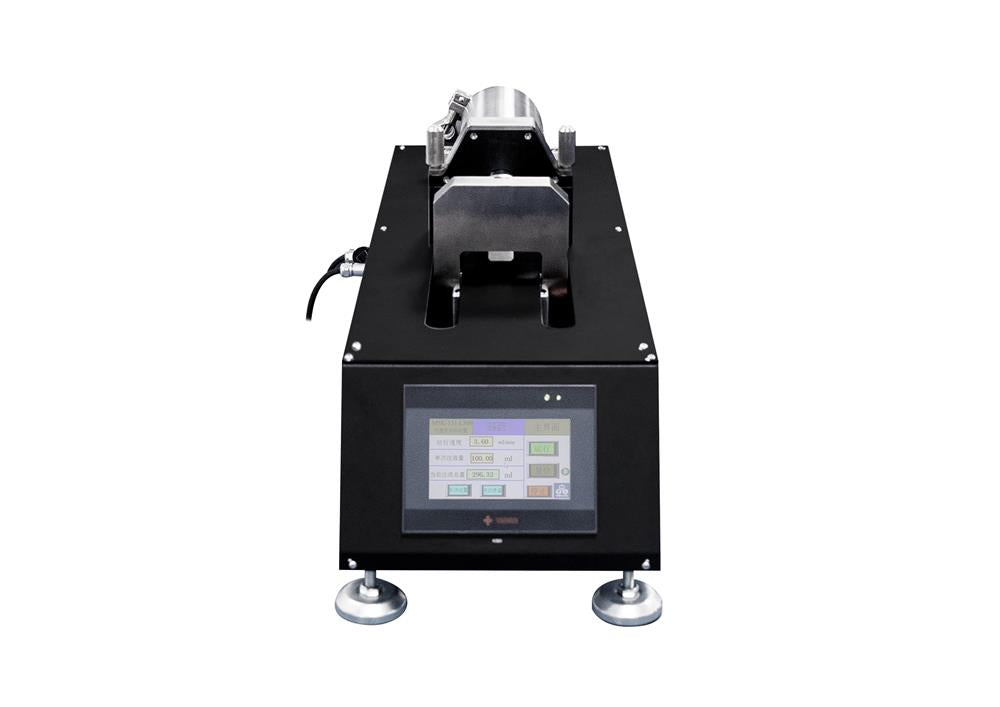

Touch-Screen Control Panel
  • Pump speed is adjustable
  • Pre-setting injection volume
  • Display the current injection volume
  • Edit other parameters in the system
  • Manual operation is also available
Options To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter and dispersing machine to find the best parameter for your coating,

Applications notes
 		 Such a slurry feeder can be used with MTI equipment such as MSK-AFA-MC200 and MSK-AFA-300-LD.
to achieve higher production efficiency.
