Description

The viscosity of battery electrode paste/slurry plays an important role during the electrode coating on a current collector, it is necessary to use a tester to monitor and then adjust the viscosity when mixing. This tester can also be used for other fluid or paste viscosity testing if within the range 10mPa·s10^5 mPa·s.

Specifcations:


Features
  • Speed Adjustable

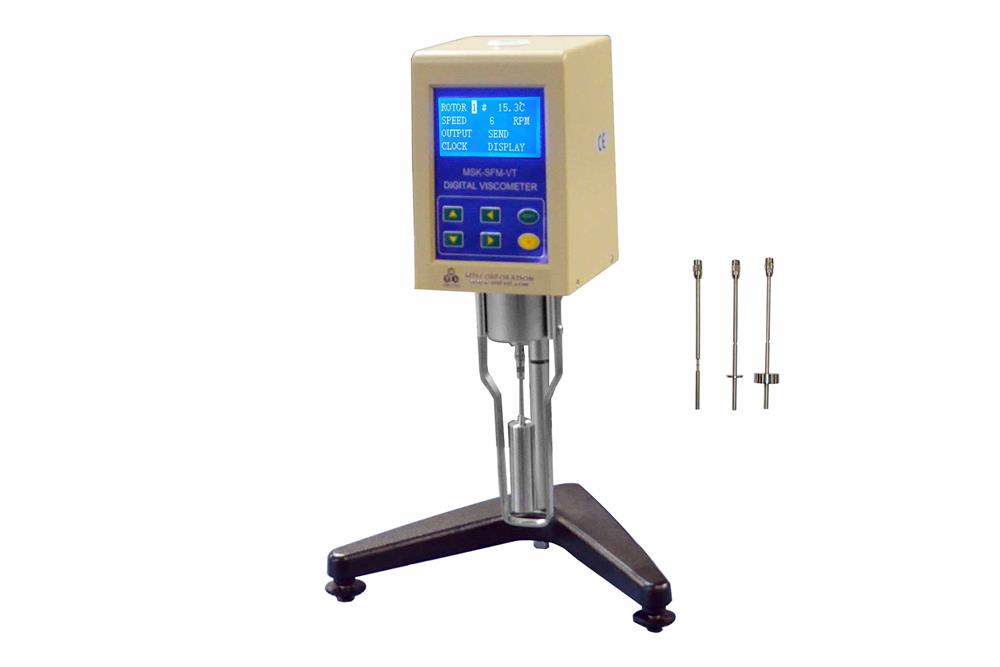

  • 4 Types of Testing Spindles
  • 10mPa·s ~ 10^5 mPa·s by digital display



Power
  • 12VDC
  • A 100 - 240VAC to 12VDC power adapter is included in the standard package.
Accuracy
  • ±5%Newtonian fluid)
Requirement for Experiment

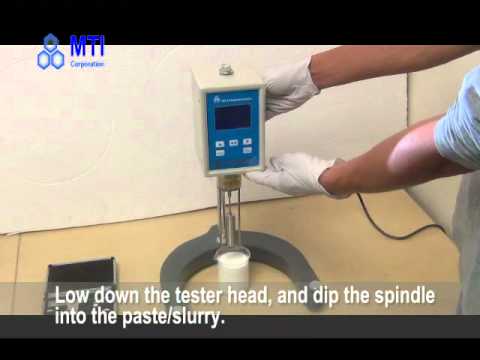

  • The red arrows show the minimum height of the sample's needs. There are also marks on all the testing spindles.

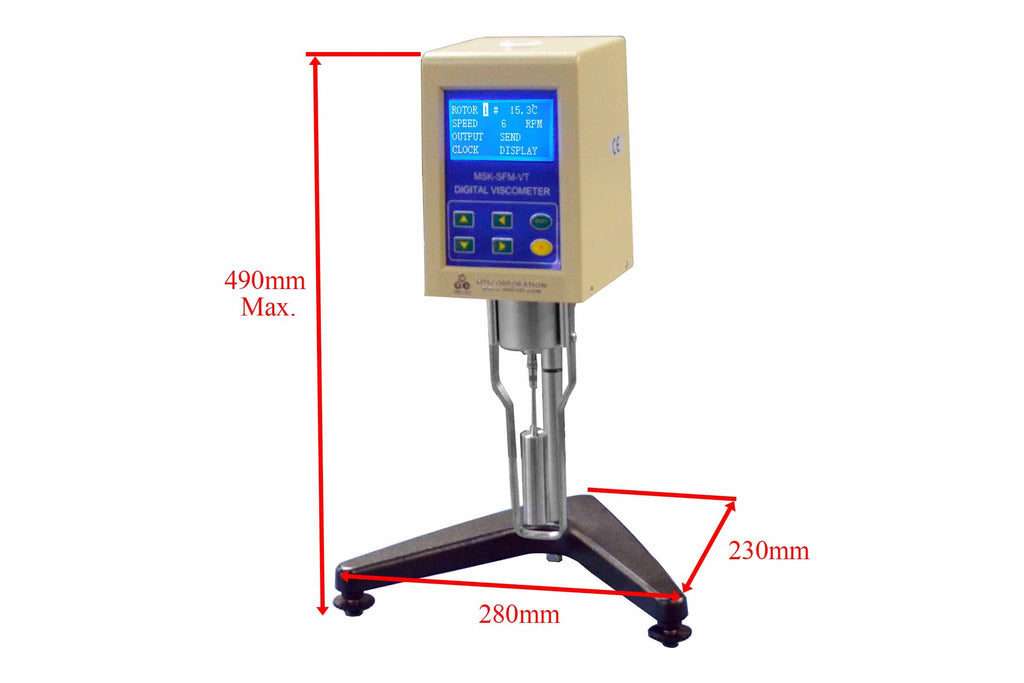

  • The Minimum Requirement for the Beaker's size: Diameter > 70mm, Height >125mm
Temperature Sensor
  • An immersion probe is included for temperature measuring.
Compliance
  • CE Certified
Standard Package
  • Control Panel
  • 4 Types of Testing Spindles
  • Stand support Base/Pool
  • Temperature Probe
  • Case
