Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC
  • Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC
Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC

Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC

SKU: mti-vbfh8-fc

Price: RFQ

Specifications

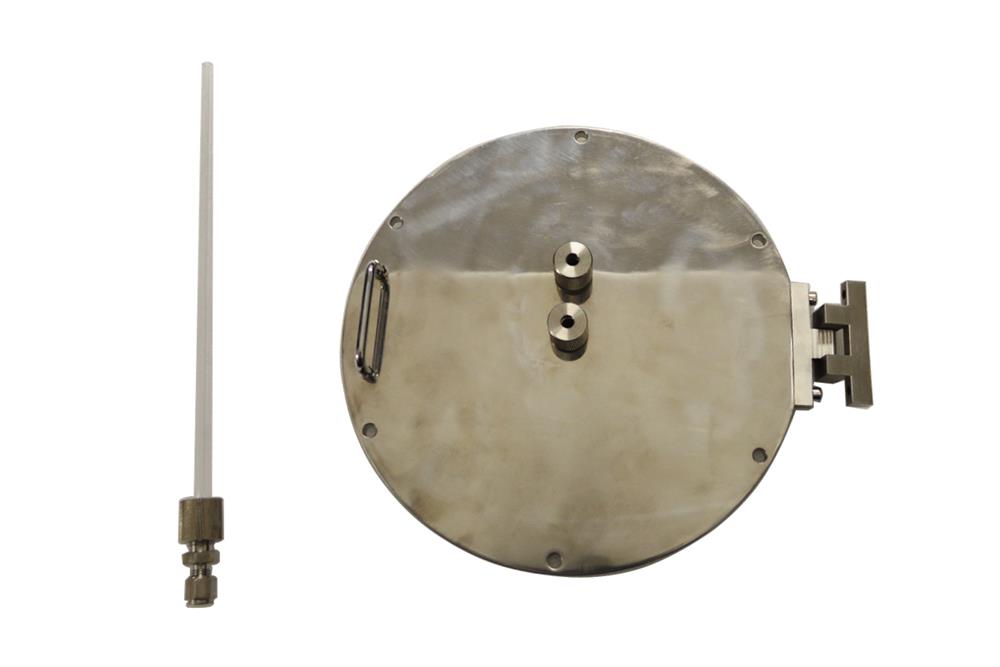

 Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC SPECIFICATIONS Structure Click pictures below to review detail structure. Component One 1/4 gas inlet which allows continuous gas delivery during operation. A quartz gas tube (6.35mm O.D) is provided to reach the location of the sample and deliver reactive gas to sample directly. One 1/4 thermocouple feedthrough port which allows a 1/4 O.D thermocouple probe to be inserted into the chamber and measure temperature of sample independently One bored Al2O3 foam refractory block is provided. Note Four probes electric resistance measurement feedthrough also is available upon request. Standard package Part No Description Qty Pic VBFH8-FC-1 Flange Cap with Bolt-on Hinge 1 VBFH8-FC-2 Bored Al2O3 foam refractory block 1 VBFH8-FC-3 Gas Inlet TUBE O.D6.35*I.D4*L300 mm 1 VBFH8-FC-4 Fitting Cap with 1/4 inch Quartz Tube Connector 2 EQ-FC-1/4QT Hex Nipple Dia6.35-M15*1.5 with 1 EQ-SOR-TCring O-ring O.D 13mm I.D 6.35mm (Pre-installed) 3 EQ-SOR-TCgasket Hi Temperature Silicone Rubber Gasket 14mm Dia. for Thermocouple Feed-through Port 3

  Structure
  •
  • Click pictures below to review detail structure.
  •
  Component
  • One 1/4 gas inlet which allows continuous gas delivery during operation.
  • A quartz gas tube (6.35mm O.D) is provided to reach the location of the sample and deliver reactive gas to sample directly.
  • One 1/4 thermocouple feedthrough port which allows a 1/4 O.D thermocouple probe to be inserted into the chamber and measure temperature of sample independently
  • One bored Al2O3 foam refractory block is provided.
  Note
  • Four probes electric resistance measurement feedthrough also is available upon request.
,
Part No Description Qty Pic
VBFH8-FC-1 Flange Cap with Bolt-on Hinge 1
VBFH8-FC-2 Bored Al2O3 foam refractory block 1
VBFH8-FC-3 Gas Inlet TUBE O.D6.35*I.D4*L300 mm 1
VBFH8-FC-4 Fitting Cap with 1/4 inch Quartz Tube Connector 2
EQ-FC-1/4QT Hex Nipple Dia6.35-M15*1.5 with  1
EQ-SOR-TCring O-ring O.D 13mm I.D 6.35mm (Pre-installed) 3
EQ-SOR-TCgasket Hi Temperature Silicone Rubber Gasket 14mm Dia. for Thermocouple Feed-through Port 3
