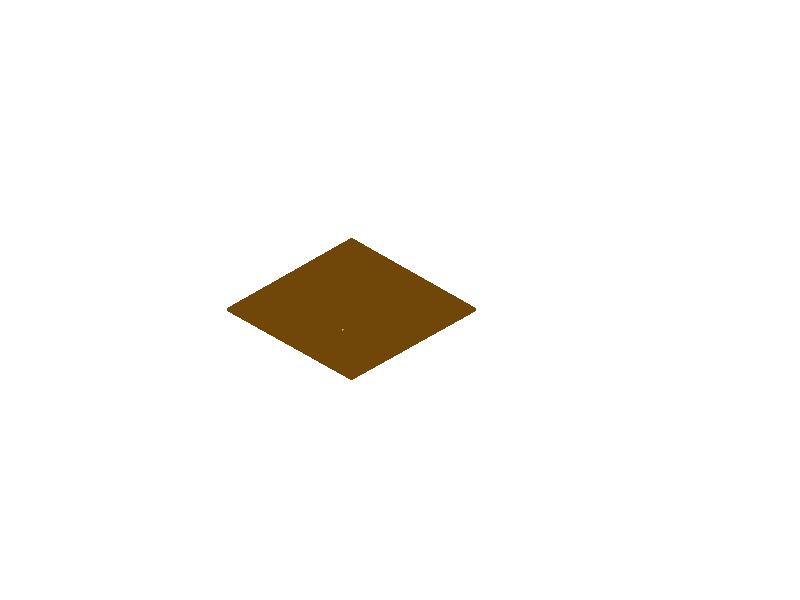

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 2 SP - NGG-101005S2

Single crystal Nd3Ga5O12  (NGG)   Substrate

• Size:            10mm x 10mm x 0.5 mm
• Orientation: (111)
• Polishing:    two sides polished.
• Surface finish (RMS or Ra) :  < 5A
• Packing:      in 1000 class clean room with plastic bag

Typical Properties of NGG

• Structure:                         Cubic
• Lattice Constant:              a=12.505Å
• Purity:                              > 99.99%
• Melting Point:                  1550 ^oC
• Density:                            6.6 g/cm³
• Hardness:                         7.2 mohs
• Reflectivity                       1.94
• Dielectric constant          ~ 12.08
• XRD:

•  MTI is developing a series of doped GGG single crystal for nest generation Magneto-optical device.  Please click the chemical formula below to link to the substrates available.
